OIL COOLER

DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)

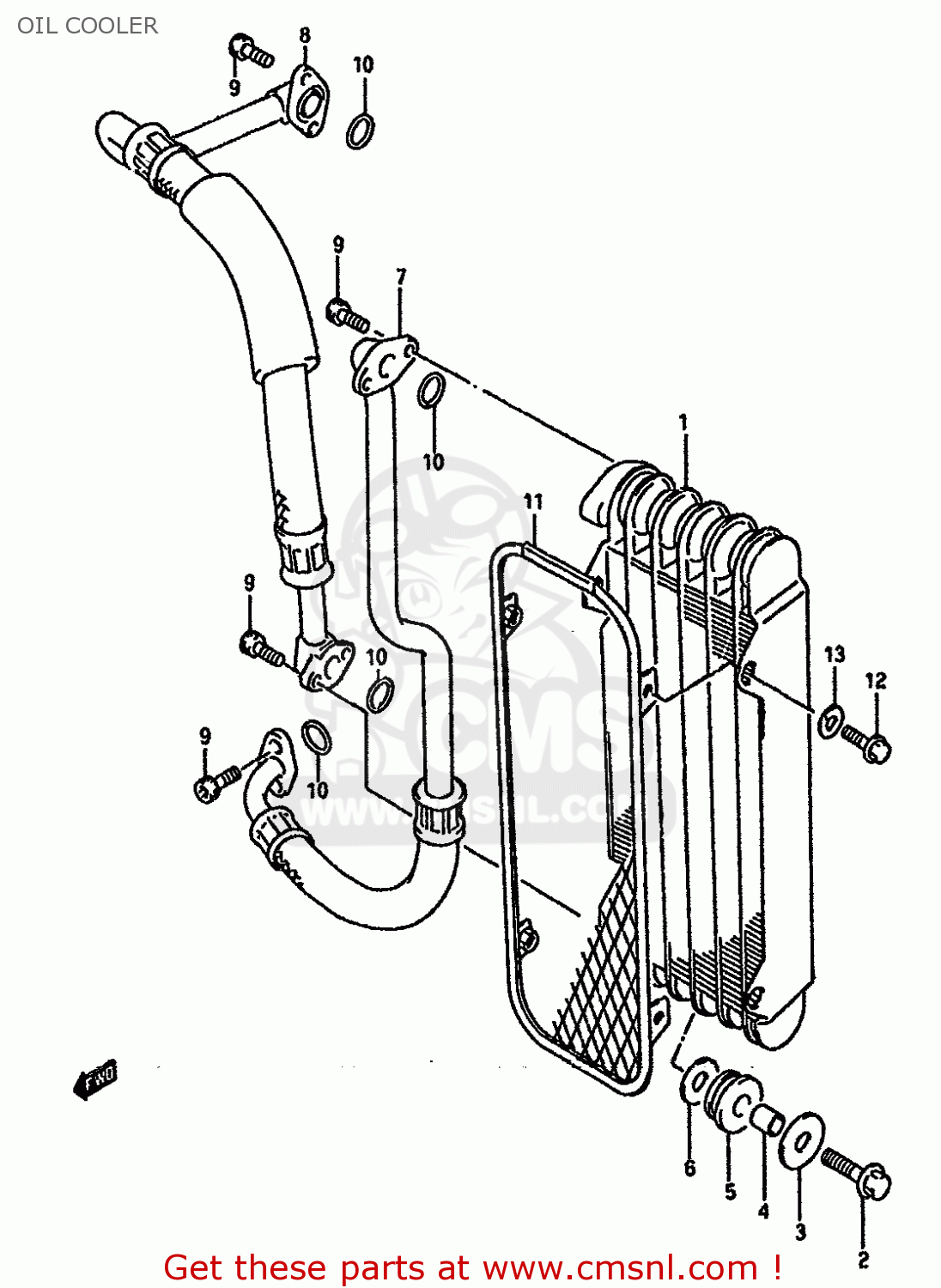

Oil cooler diagram DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)

prices are in EUR

ref

part #

description

quantity

1660044B00
ref: 1

COOLER ASSY,OIL

€ 443.50

0151708304
ref: 2

BOLT

€ 3.00

0916008057
ref: 3

WASHER (8.5X20X1.6)

€ 2.00

0918008126
ref: 4

SPACER (8.8X12X11.6)

€ 2.00

1662944B00
ref: 5

CUSHION,OIL COOLER

€ 3.00

0916008047
ref: 6

WASHER(8.5X23X1.2)

€ 2.00

7-1

1646044B00
ref: 7-1
MODEL J

HOSE,OIL COOLER NO.1

€ 156.50

7-2

1646044B01
ref: 7-2
MODEL K

HOSE,OIL COOLER NO.1

€ 156.50

8-1

1647044B00
ref: 8-1
MODEL J

HOSE,OIL COOLER NO.2

€ 124.00

8-2

1647044B01
ref: 8-2
MODEL K

HOSE,OIL COOLER NO.2

€ 124.00

0711006165
ref: 9

BOLT

€ 3.00

0928012008
ref: 10

O RING(D:2.4,ID:12.3)

€ 3.00

1665044B00
ref: 11

BUMPER,OIL COOLER

€ 38.50

0154705105
ref: 12

BOLT

€ 2.50

0832121055
ref: 13

WASHER,LOCK

€ 3.00
