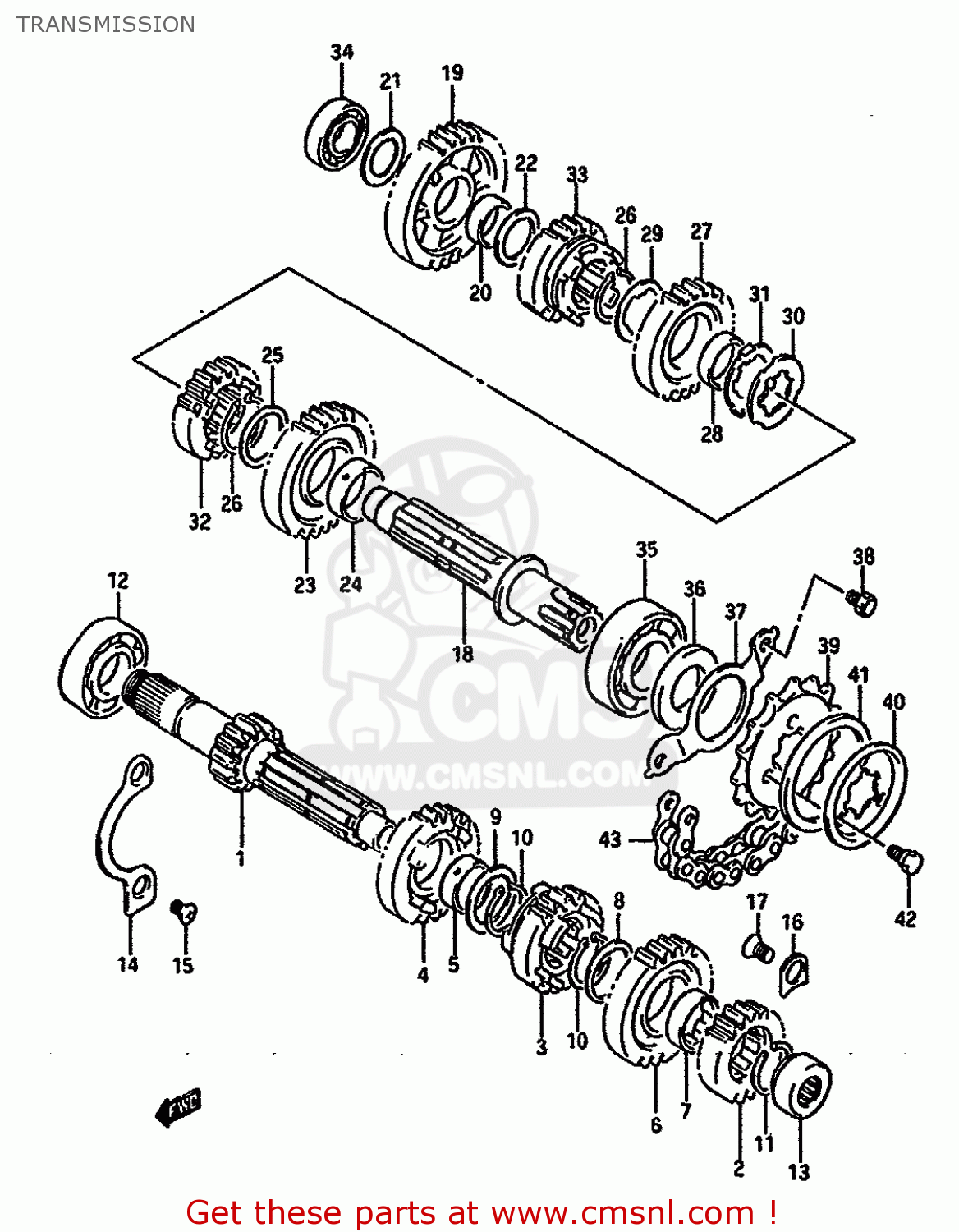

ref
part #
description
quantity
1
COUNTERSHAFT (NT:13)
2
GEAR,2ND DRIVE (NT:19)
3
GEAR,THIRD DRIVE (NT:20)
4
GEAR,4TH DRIVE(NT:23)
6
GEAR,FIFTH DRIVE (NT:25)
8
WASHER,LOCK
9
WASHER
10
RING,SNAP
11
CIRCLIP
12
BEARING
13
BEARING(17X30X14)
14
RETAINER,CNTR SHAFT BEARING
15
SCREW
16
RETAINER
17
SCREW
18
SHAFT,DRIVE
19
GEAR,1ST DRIVEN (NT:32)
22
WASHER
23
GEAR,2ND DRIVEN (NT:30)
24
BUSH(28X32X11)
25
WASHER
27
GEAR,THIRD DRIVEN (NT:24)
28
BUSH
29
WASHER,LOCK
30
WASHER,LOCK
31
WASHER
32
GEAR,FOURTH DRIVEN (NT:22)
33
GEAR,5TH DRIVEN (NT:20)
34
BEARING(20X42X12)
35
BEARING(25X62X17)
36
SEAL,OIL(25X45X5)
37
RETAINER,DRIVESHAFT O
38
BOLT
39
SPROCKET,ENGINE(15T)
40
PLATE,ENGINE SPROCKET
41
DAMPER,ENGINE SPROCKET
42
BOLT(6X13)
43
CHAIN(DID520VL2,116L)
