DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)

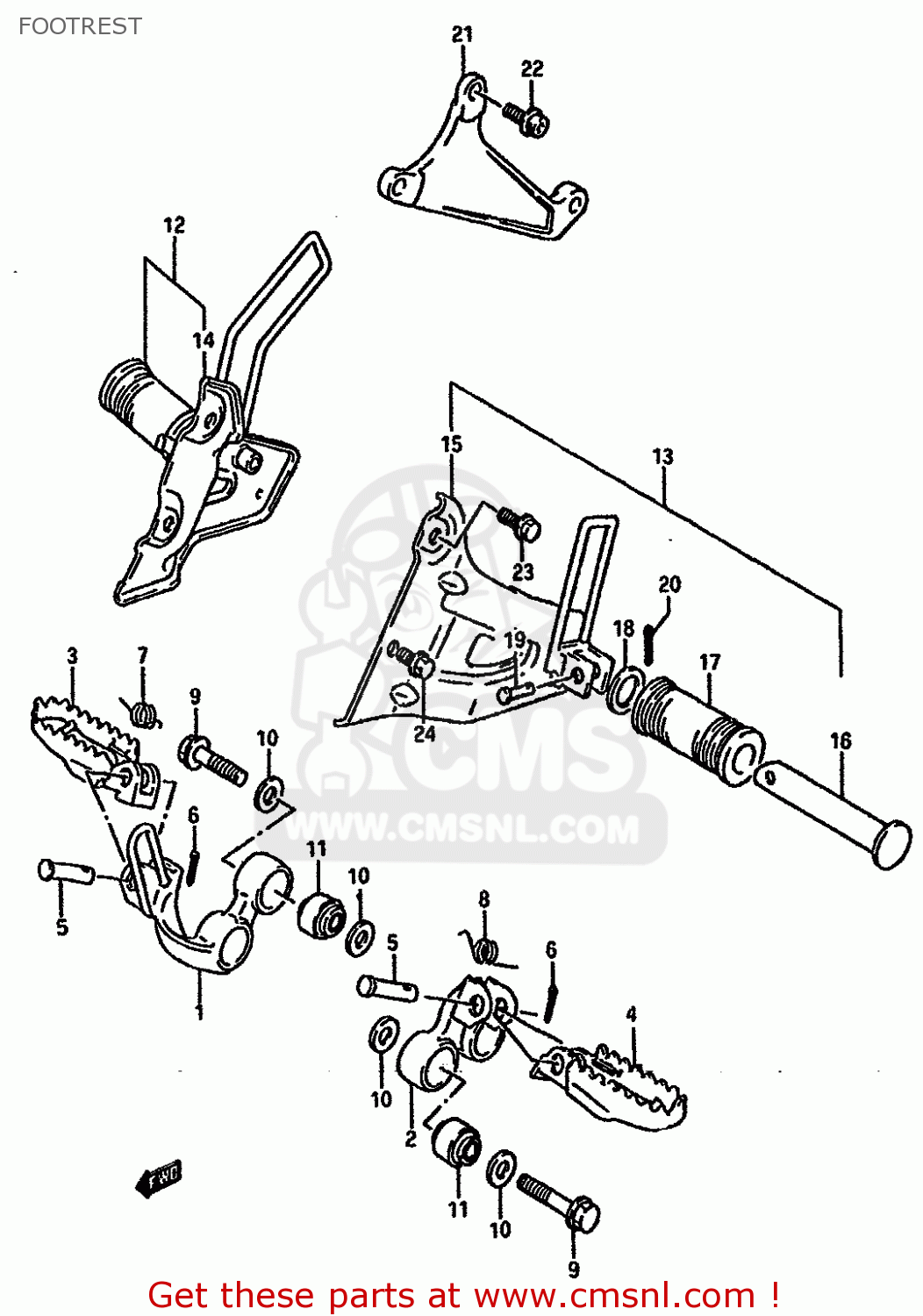

Footrest diagram DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)
FOOTREST DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)
×
prices are in EUR
ref
part #
description
quantity
1-1
4351044B0016L
ref: 1-1
MODEL J
BAR,FOOTREST RH (BLUE)
€ 33.50
1-2
4351044B0034S
ref: 1-2
MODEL J
BAR,FOOTREST RH (BLUE)
€ 33.50
1-3
4351044B00019
ref: 1-3
MODEL K
BAR,FOOTREST RH (BLACK)
€ 33.50
2-1
4352044B0016L
ref: 2-1
MODEL J
BAR,FOOTREST LH (BLUE)
€ 47.50
2-2
4352044B0034S
ref: 2-2
MODEL J
BAR,FOOTREST LH (BLUE)
€ 47.50
2-3
4352044B00019
ref: 2-3
MODEL K
BAR,FOOTREST LH (BLACK)
€ 47.50
3-1
4355044B0016L
ref: 3-1
MODEL J
FOOTREST,FR RH
€ 22.00
3-2
4355044B0034S
ref: 3-2
MODEL J
FOOTREST,FRONT RH (BLUE)
€ 22.00
3-3
4355044B00019
ref: 3-3
MODEL K
FOOTREST,FR,R
€ 22.00
4-1
4356044B0016L
ref: 4-1
MODEL J
FOOTREST,FRONT LH (BLUE)
€ 14.00
4-2
4356044B0034S
ref: 4-2
MODEL J
FOOTREST,FRONT LH (BLUE)
€ 14.00
4-3
4356044B00019
ref: 4-3
MODEL K
FOOTREST,FR,L
€ 14.00
5
0920010008
ref: 5
PIN
€ 3.00
6
0411120208
ref: 6
PIN 20X20
€ 1.50
7
0944815008
ref: 7
SPRING
€ 2.50
8
0944815004
ref: 8
SPRING
€ 2.50
9
0910310124
ref: 9
BOLT
€ 4.50
10
0916010110
ref: 10
WASHER(10.1X23X2.3)
€ 3.00
11
0931910057
ref: 11
BUSHING 10X28.1X19
€ 15.00
12-1
4360044B0016L
ref: 12-1
MODEL J
FOOTREST,PILLION RH (BLUE)
€ 103.50
12-2
4360044B0034S
ref: 12-2
MODEL J
FOOTREST,PILLION RH (BLUE)
€ 103.50
12-3
4360044B1028W
ref: 12-3
MODEL K
FOOTREST,PILLION RH (WHITE)
€ 107.00
13-1
4370044B0016L
ref: 13-1
MODEL J
FOOTREST,PILLION LH (BLUE)
€ 58.00
13-2
4370044B0034S
ref: 13-2
MODEL J
FOOTREST,PILLION LH (BLUE)
€ 58.00
13-3
4370044B0028W
ref: 13-3
MODEL K
FOOTREST,PILLION LH (WHITE)
€ 58.00
14-1
4365044B0116L
ref: 14-1
MODEL J
HOLDER,RH (BLUE)
€ 92.00
14-2
4365044B0134S
ref: 14-2
MODEL J
HOLDER,RH (BLUE)
€ 92.00
14-3
4365044B1128W
ref: 14-3
MODEL K
HOLDER,RH (WHITE)
€ 48.00
15-1
4375044B0016L
ref: 15-1
MODEL J
HOLDER,RH (BLUE)
€ 46.00
15-2
4375044B0034S
ref: 15-2
MODEL J
HOLDER,LH (BLUE)
€ 46.00
15-3
4375044B0028W
ref: 15-3
MODEL K
HOLDER,LH (WHITE)
€ 42.00
16
4361003001
ref: 16
BAR,FOOTREST RUBBER
€ 5.50
17
4361244B00
ref: 17
RUBBER,PILLION FOOTREST
€ 14.00
18
0916019006
ref: 18
WASHER (19.5X32X2)
€ 2.00
19
0920006010
ref: 19
PIN
€ 2.50
20
0411120158
ref: 20
PIN
€ 1.50
21
4381144B00
ref: 21
BRACKET,MUFFLER
€ 58.00
22
0712008255
ref: 22
BOLT
€ 2.50
23
0151708207
ref: 23
BOLT
€ 3.00
24
0151706128
ref: 24
BOLT
€ 2.50
