HEADLAMP HOUSING-FRONT FENDER

DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)

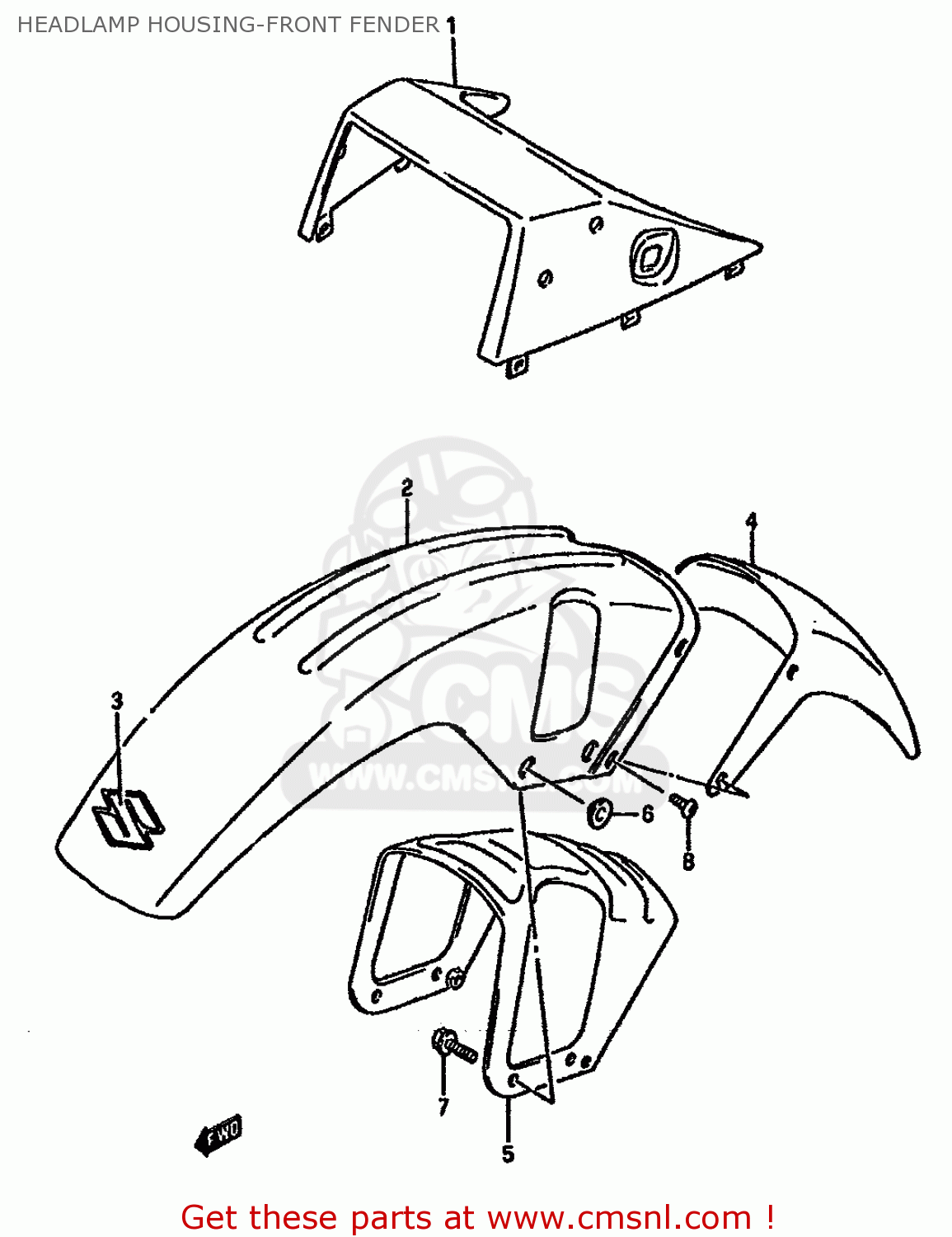

Headlamp housing-front fender diagram DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)

prices are in EUR

ref

part #

description

quantity

5181144B01291
ref: 1

COVER,HEADLAMP (BLACK)

€ 33.00

2-1

5311144B0016L
ref: 2-1
MODEL J

FENDER,FR

€ 107.00

2-2

5311144B2016L
ref: 2-2
MODEL J E22

FENDER,FRONT NO.1 (BLUE)

€ 107.00

2-3

5311144B3028V
ref: 2-3
MODEL K

FENDER,FR

€ 148.50

2-4

5311144B3038K
ref: 2-4
MODEL K

FENDER,FR

€ 123.00

2-5

5311144B4028V
ref: 2-5
MODEL K E22

FENDER,FR

€ 148.50

2-6

5311144B4038K
ref: 2-6
MODEL K E22

FENDER,FR

€ 123.00

3-1

6815144B002YF
ref: 3-1
MODEL K FOR 28V

EMBLEM,FRONT FENDER

€ 5.00

3-2

6815144B002GH
ref: 3-2
MODEL K FOR 38K

EMBLEM,FRONT FENDER

€ 5.50

4-1

5331144B00291
ref: 4-1

FENDER,FRONT NO.2 (BLACK)

€ 27.00

4-2

5331144B20291
ref: 4-2
E22

FENDER,FR NO,2

€ 27.00

5321044B00
ref: 5

BRACE, FENDER

€ 33.00

0916906041
ref: 6

WASHER

€ 2.00

0151706206
ref: 7

BOLT 6X20

€ 2.50

0214205124
ref: 8

SCREW, FRONT & REAR

€ 1.50
