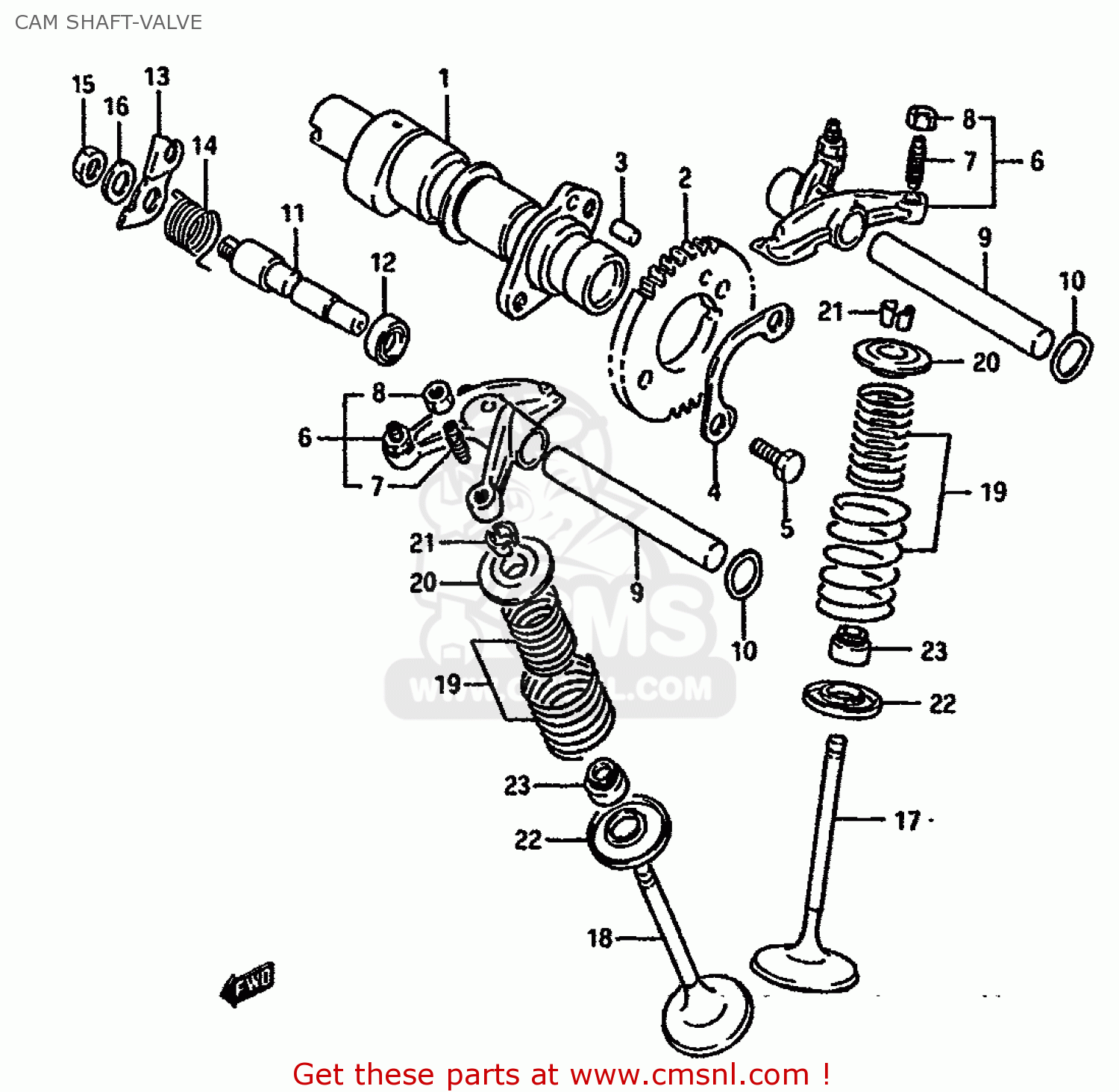

CAM SHAFT-VALVE

ref

part #

description

quantity

1-1

1271144B00
ref: 1-1

CAM SHAFT

€ 266.00

1-2

1271144B10
ref: 1-2
E22

CAMSHAFT

€ 266.00

2

1274144B00
ref: 2

SPROCKET,CAMSHAFT

€ 32.50

3

0422105109
ref: 3

PIN

€ 1.50

4

1274744B00
ref: 4

WASHER,SPROCKET

€ 2.00

5

0911106045
ref: 5

BOLT(6X14)

€ 2.50

6-1

1284044B00
ref: 6-1
MODEL J

ARM,VALVE ROCKER

€ 90.00

6-2

1284044B01
ref: 6-2
MODEL K

ARM,VALVE ROCKER

€ 90.00

7

1284232411
ref: 7

SCREW,TAPPET ADJUSTING

€ 5.00

8

1284332400
ref: 8

NUT,ADJUSTING SCREW

€ 2.50

9

1286144B00
ref: 9

SHAFT,VALVE ROCKER ARM

€ 20.00

10

0916412018
ref: 10

WASHER

€ 1.50

11

1294144B00
ref: 11

SHAFT,DECOMP

€ 19.00

12

0928210014
ref: 12

SEAL,OIL(10X17X6)

€ 6.50

13

1294244B00
ref: 13

LEVER,DECOMP SHAFT

€ 2.50

14

0944817027
ref: 14

SPRING

€ 5.50

15

0831022085
ref: 15

NUT 8MM

€ 2.00

16

0832211084
ref: 16

WASHER

€ 1.50

17

1291144B00
ref: 17

VALVE,INTAKE

€ 43.00

18

1291244B00
ref: 18

VALVE,EXHAUST

€ 55.50

19

1292044B00
ref: 19

SPRING SET,VALVE

€ 13.50

20

1293145000
ref: 20

RETAINER,VALVE SPRING

€ 6.00

21

1293282000
ref: 21

COTTER,VALVE

€ 2.00

22

1293337400
ref: 22

SEAT,VALVE SPRING

€ 3.50

23

0928907002
ref: 23

SEAL,OIL(7X14.4X9)

€ 3.00
