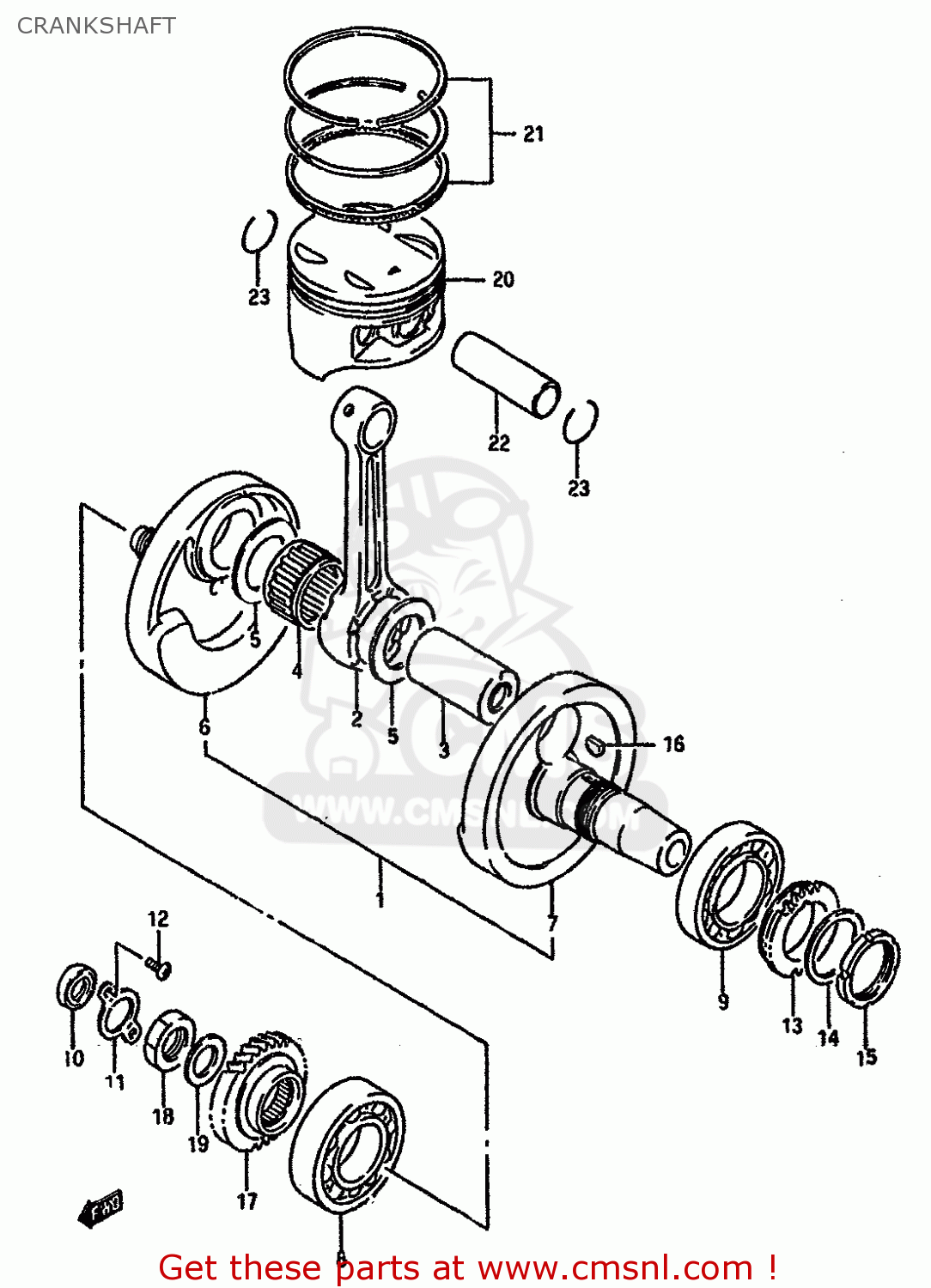

CRANKSHAFT

ref

part #

description

quantity

1

1220044B00
ref: 1

CRANKSHAFT ASSY

€ 628.50

2

1216144B00
ref: 2

ROD,CONNECTING

€ 130.00

3

1221044B00
ref: 3

PIN,CRANK

€ 75.50

4

0926341003
ref: 4

BEARING(41X51X25)

€ 54.50

5

0916041D02
ref: 5

WASHER

€ 0.00

6

1222044B00
ref: 6

CRANKSHAFT,RH

€ 0.00

7

1226144B00
ref: 7

CRANKSHAFT,LH

€ 0.00

8

0926240007
ref: 8

BEARING(40X90X23)

€ 55.00

9-1

0926245006
ref: 9-1
MODEL J

BEARING,LH (45X85X19)

€ 65.00

9-2

0926245007
ref: 9-2
MODEL K

BEARING(45X85X19)

€ 65.00

10

0928216002
ref: 10

SEAL,OIL(16X30X6)

€ 8.50

11

1254837400
ref: 11

RETAINER,CRANKSHAFT BEARING,R

€ 6.50

12

0211205107
ref: 12

SCREW

€ 2.00

13

1266244B00
ref: 13
NT:25

SPROCKET,BAL.D

€ 42.00

14

0916440003
ref: 14

WASHER

€ 3.50

15

1266444B00
ref: 15

NUT,BAL DRIVE SPRKT

€ 26.00

16

0942004003
ref: 16

KEY

€ 0.00

17

2111144B00
ref: 17

GEAR,PRIMARY DRIVE (NT:32)

€ 97.00

18

0914022012
ref: 18

NUT

€ 7.50

19

0916422007
ref: 19

WASHER

€ 5.00

20-1

1211144B030F0
ref: 20-1

PISTON 105MM

€ 206.00

20-2

1211144B03050
ref: 20-2
OPT

PISTON 105.50M

€ 307.00

20-3

1211144B03100
ref: 20-3
OPT

PISTON (OS:1.0)

€ 248.50

21-1

1214044B10
ref: 21-1

RING SET,PISTON

€ 125.50

21-2

1214044B10050
ref: 21-2
OPT

RING SET,PISTON (OS:0.5)

€ 74.50

21-3

1214044B10100
ref: 21-3
OPT

RING SET,PISTON (OS:1.0)

€ 72.00

22

1215144B00
ref: 22

PIN,PISTON

€ 19.50

23

0938126002
ref: 23

CIRCLIP

€ 2.50
