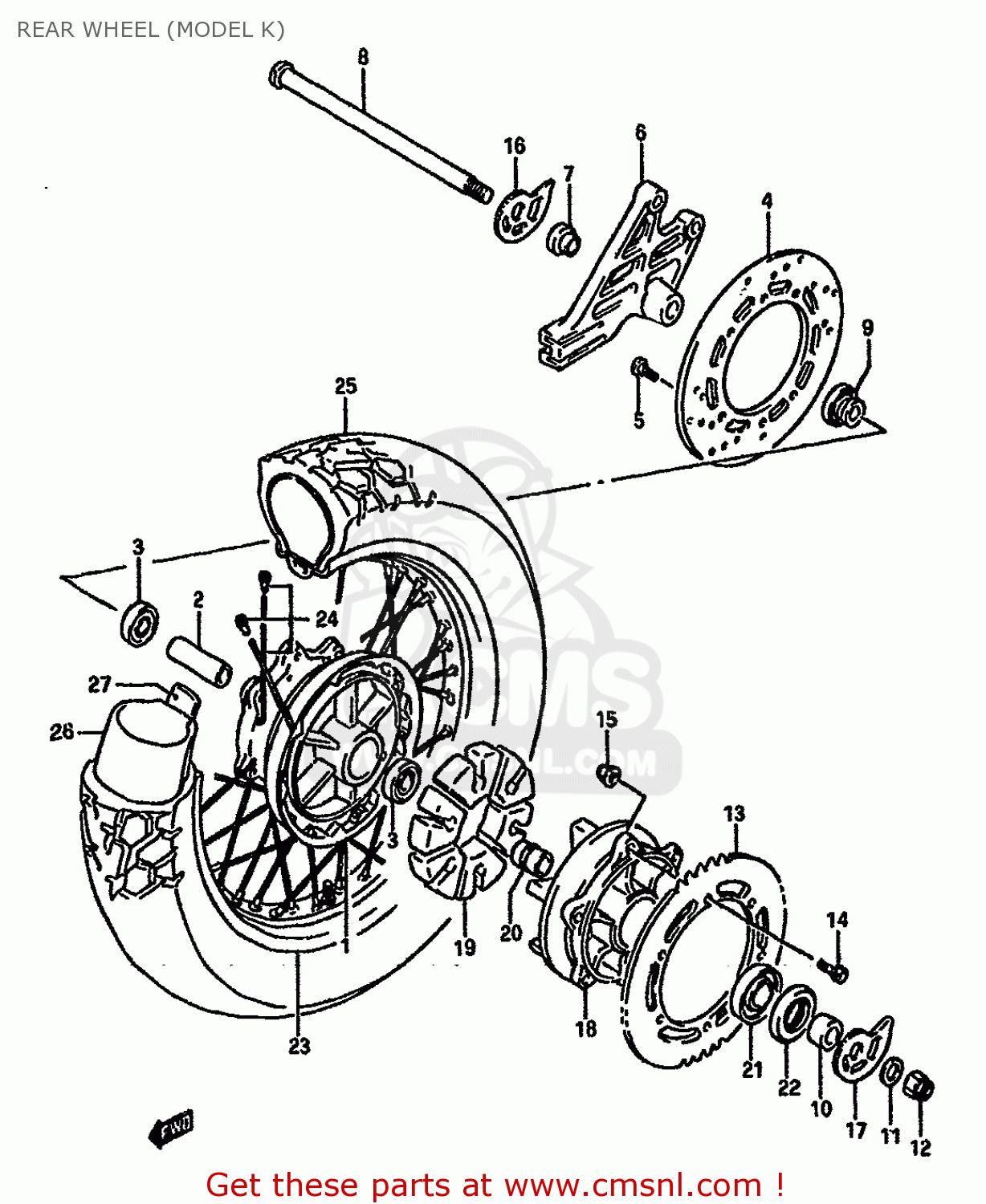

REAR WHEEL (MODEL K)

ref

part #

description

quantity

1

6411044B10
ref: 1

HUB COMP,REAR WHEEL

€ 358.00

2

0918017071
ref: 2

SPACER(17.5X25X78)

€ 20.00

3

0812463037
ref: 3

BEARING

€ 18.50

4

6921144B00
ref: 4

DISC,RR BRAKE

€ 370.00

5

5942103A01
ref: 5

BOLT,BRAKE DISC

€ 4.00

6

6972144B00
ref: 6

BRACKET,RR CALIPER

€ 103.00

7

0918017096
ref: 7

SPACER (17X21X10)

€ 14.00

8

6471144B10
ref: 8

AXLE,RR

€ 55.00

9

6475038211
ref: 9

SPACER,RR AXLE,L

€ 12.00

10

0918017090
ref: 10

SPACER(17X33X22.4)

€ 14.50

11

0916017013
ref: 11

WASHER (17X30X3.2)

€ 2.00

12

0915916002
ref: 12

NUT

€ 5.00

13

6451144B10
ref: 13

SPROCKET,REAR (NT:48)

€ 59.50

14

0912008010
ref: 14

BOLT(8X30.5)

€ 2.50

15

0831931087
ref: 15

NUT

€ 2.50

16

6141144B00
ref: 16

ADJUSTER,CHAIN,RH

€ 15.00

17

6142144B00
ref: 17

ADJUSTER,CHAIN,LH

€ 13.50

18

6461144B10
ref: 18

DRUM,REAR SPROCKET

€ 127.50

19

6465144B01
ref: 19

ABSORBER,RR HUB SHOCK

€ 10.50

20

6473331300
ref: 20

RETAINER,RR SPROCKET DRUM

€ 16.50

21

0926225073
ref: 21

BEARING(25X62X17)

€ 21.50

22

0928533001
ref: 22

SEAL,OIL(33X62X7)

€ 20.00

23

6531144B10
ref: 23

RIM,REAR WHEEL (17XMT2)

€ 377.50

24

6532044B10
ref: 24

SPOKE SET,RR

€ 79.00

25

6510044B10
ref: 25
BS

TIRE,REAR (130/80-17 65S)

€ 133.00

26

6520013A20
ref: 26

TUBE ASSEMBLY,WHEEL,INNER

€ 43.50

27

6526144B10
ref: 27

PROTECTOR,WHL INR TUBE

€ 4.50

28

0928533001
ref: 28

SEAL,OIL(33X62X7)

€ 20.00

29

6531144B00
ref: 29

RIM,RR WHEEL(17XMT2.50)

€ 301.50

30

6532044B00
ref: 30

SPOKE SET

€ 133.50

31

6510044B00
ref: 31
IRC

TIRE

€ 133.00

32

6520044300
ref: 32

TUBE ASSEMBLY,WHEEL,INNER

€ 43.50

33

6526149010
ref: 33

PROTECTOR,INNER TUBE

€ 2.00
