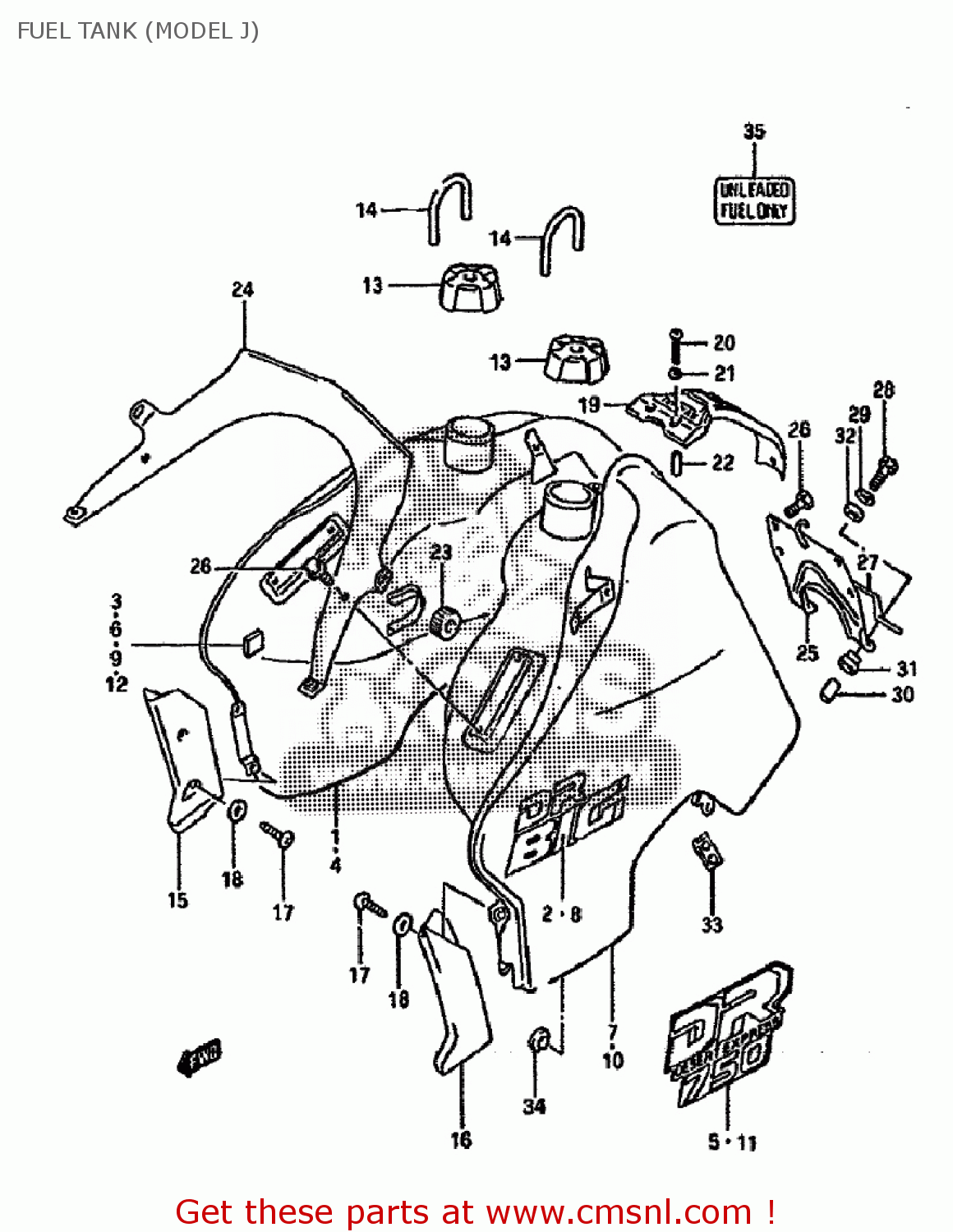

FUEL TANK (MODEL J)

ref

part #

description

quantity

1-1

4410044B0030H
ref: 1-1

TANK ASSY,FUEL RH (WHITE)

€ 683.50

1-2

4410044B2030H
ref: 1-2

TANK ASSY,FUEL RH (WHITE)

€ 683.50

1-3

4410044B0019X
ref: 1-3

TANK ASSY,FUEL RH (WHITE)

€ 683.50

1-4

4410044B2019X
ref: 1-4

TANK ASSY,FUEL RH (WHITE)

€ 683.50

2-1

6811144B002HU
ref: 2-1

EMBLEM,FUEL TANK

€ 15.50

2-2

6811144B002JK
ref: 2-2

EMBLEM,FUEL TANK

€ 19.00

3

4451444B00
ref: 3

CUSHION

€ 1.50

4-1

4410044B6030H
ref: 4-1

TANK ASSY,FUEL RH (WHITE)

€ 683.50

4-2

4410044B6019X
ref: 4-2

TANK ASSY,FUEL RH (WHITE)

€ 683.50

5-1

6811144B102HU
ref: 5-1

EMBLEM

€ 22.00

5-2

6811144B102JK
ref: 5-2

EMBLEM

€ 22.00

6

4451444B00
ref: 6

CUSHION

€ 1.50

7-1

4410044B1030H
ref: 7-1

TANK ASSY,FUEL LH (WHITE)

€ 604.50

7-2

4410044B3030H
ref: 7-2

TANK ASSY,FUEL LH (WHITE)

€ 604.50

7-3

4410044B1019X
ref: 7-3

TANK ASSY,FUEL LH (WHITE)

€ 604.50

7-4

4410044B3019X
ref: 7-4

TANK ASSY,FUEL LH (WHITE)

€ 604.50

8-1

6811144B002HU
ref: 8-1

EMBLEM,FUEL TANK

€ 15.50

8-2

6811144B002JK
ref: 8-2

EMBLEM,FUEL TANK

€ 19.00

9

4451444B00
ref: 9

CUSHION

€ 1.50

10-1

4410044B7030H
ref: 10-1

TANK ASSY,FUEL LH (WHITE)

€ 604.50

10-2

4410044B7019X
ref: 10-2

TANK ASSY,FUEL LH (WHITE)

€ 604.50

11

6811144B102HU
ref: 11

EMBLEM

€ 22.00

11

6811144B102JK
ref: 11

EMBLEM

€ 22.00

12

4451444B00
ref: 12

CUSHION

€ 1.50

13

4420044B00
ref: 13

CAP ASSY,FUEL TANK

€ 43.00

14

0935250823240
ref: 14

HOSE

€ 13.00

15

4451144B0030H
ref: 15

COVER,FUEL TAN

€ 14.00

16

4451244B0030H
ref: 16

COVER,FUEL TANK FR,L

€ 14.50

17

0214206125
ref: 17

SCREW 6X12

€ 2.00

18

0832221064
ref: 18

WASHER

€ 2.00

19

4451344B00291
ref: 19

COVER,FUEL TANK CENTER (BLACK)

€ 38.00

20

0913906046
ref: 20

SCREW (6X40)

€ 2.50

21

0832221064
ref: 21

WASHER

€ 2.00

22

0918006201
ref: 22

SPACER

€ 3.50

23

0932910021
ref: 23

CUSHION

€ 6.00

24

4452144B00
ref: 24

BRACKET,FRONT

€ 35.50

25

4453044B00
ref: 25

BRACKET,REAR

€ 25.50

26

0151706108
ref: 26

BOLT

€ 2.50

27

4511944B00
ref: 27

BRACKET,SEAT FRONT HOOK

€ 7.50

28

0110706306
ref: 28

BOLT

€ 2.50

29

0916006072
ref: 29

WASHER (6.5X24X1.6)

€ 2.00

30

0918006072
ref: 30

SPACER

€ 2.00

31

0932010020
ref: 31

CUSHION

€ 4.00

32

0932014013
ref: 32

CUSHION

€ 3.00

33

0932910007
ref: 33

CUSHION

€ 3.00

34

0932110021
ref: 34

CUSHION

€ 4.50

35

8693273060
ref: 35

LABEL,FUEL CAUTION

€ 4.00

all assemblies
