GEAR SHIFTING
DR750SU 1988 (J) GERMANY (E22)

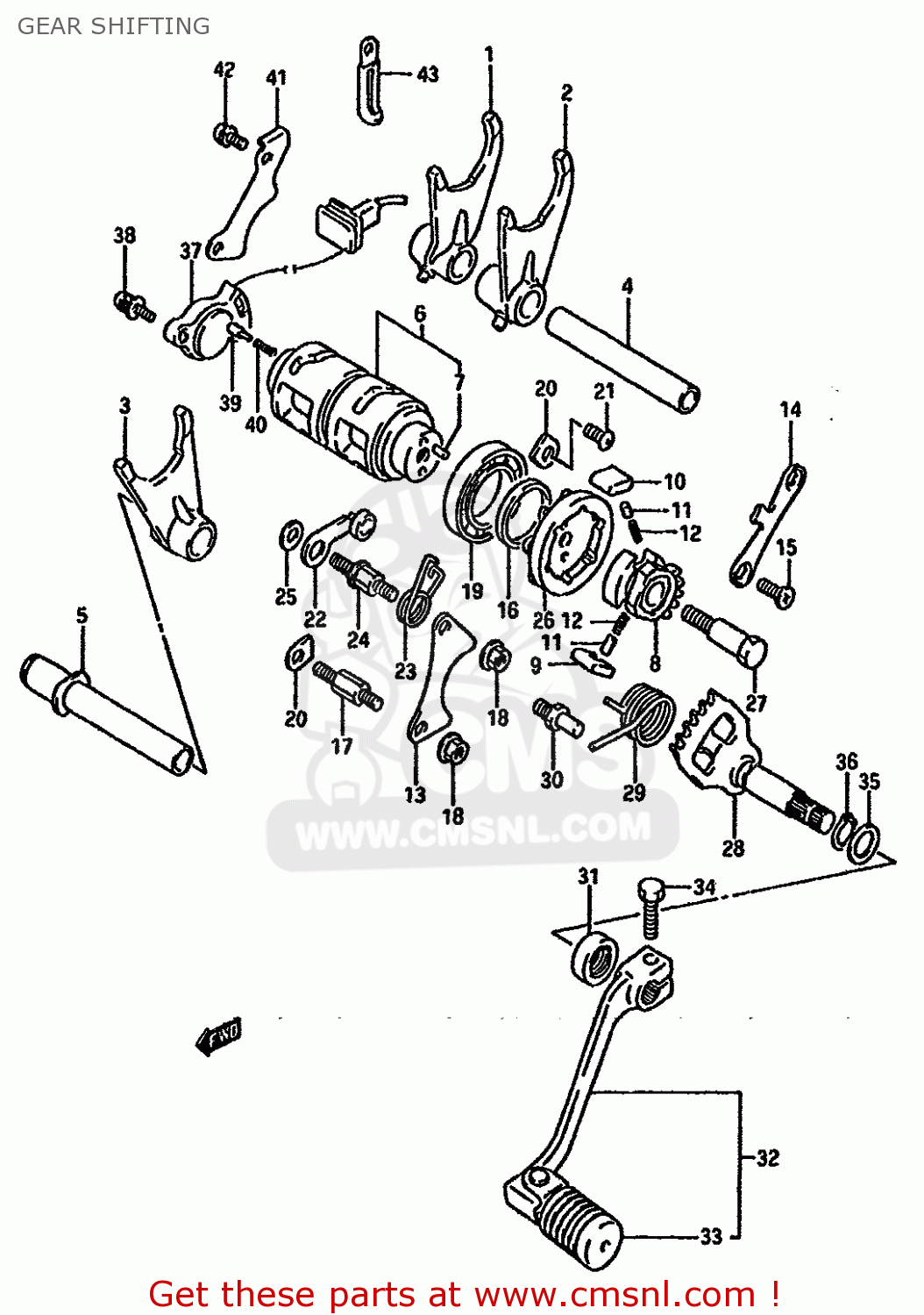

Gear shifting diagram DR750SU 1988 (J) GERMANY (E22)
GEAR SHIFTING DR750SU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
2521144B00
ref: 1
FORK,GEAR SHIFT NO.1
€ 94.00
2
2522144B00
ref: 2
FORK,GEAR SHIFT NO.2
€ 86.00
3
2523144B00
ref: 3
FORK, GEAR SHIFTING NO.3
€ 55.50
4
2541144B00
ref: 4
SHAFT,GEAR SHIFT FORK NO.1
€ 19.50
5
2542144B00
ref: 5
SHAFT,FORK NO.2
€ 43.50
6
2531044B00
ref: 6
CAM,GEAR SHIFT
€ 144.00
7
0422104089
ref: 7
PIN
€ 1.50
8
2532231301
ref: 8
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
9
2532334201
ref: 9
PAWL,GEAR SHIFT NO.1
€ 6.00
10
2532434201
ref: 10
PAWL,GEAR SHIFT NO.2
€ 6.00
11
0926105003
ref: 11
PIN(5X8)
€ 1.50
12
0944004003
ref: 12
SPRING
€ 1.50
13
2533138A00
ref: 13
LIFTER,GEAR SHIFT POLE
€ 4.50
14
2534138A00
ref: 14
GUIDE,GEAR SHIFT CAM
€ 6.00
15
0212206128
ref: 15
SCREW
€ 3.00
16
0916025059
ref: 16
WASHER(25X32X3)
€ 5.00
17
2533238A00
ref: 17
BOSS,SHIFT PAWL LIFTER
€ 3.50
18
0915906017
ref: 18
NUT
€ 2.50
19
0926225002
ref: 19
BEARING
€ 24.00
20
2474120A10
ref: 20
RETAINER,SHIFT CAM,R BEARING
€ 2.00
21
0211206128
ref: 21
SCREW 6X12
€ 2.00
22
2535024B00
ref: 22
STOPPER,GEAR SHIFT CAM
€ 8.00
23
0944817021
ref: 23
SPRING
€ 5.00
24
2535524B01
ref: 24
SPRING,STOPPER ARM
€ 9.50
25
0821106141
ref: 25
WASHER
€ 2.50
26
2538038A02
ref: 26
PLATE,GEAR SHIFT CAM
€ 15.00
27
2531238A00
ref: 27
PIN,SHIFT CAM DRIVEN GEAR
€ 4.00
28
2551044B00
ref: 28
SHAFT,GEAR SHIFT
€ 61.00
29
0944426012
ref: 29
SPRING
€ 3.50
30
2567136A00
ref: 30
STOPPER,GEAR SHIFT ARM
€ 3.00
31
0928512002
ref: 31
OIL SEAL
€ 7.00
32
2560044B00
ref: 32
LEVER ASSY,GEAR SHIFTING
€ 95.50
33
2565214A00
ref: 33
RUBBER,GEAR SHIFT PEDAL
€ 9.50
34
0910006100
ref: 34
BOLT
€ 2.00
35
0821212201
ref: 35
WASHER
€ 1.50
36
0833131128
ref: 36
CIRCLIP
€ 2.00
37
3772044B00
ref: 37
BASE ASSY,NEUTRAL SW TERMINAL
€ 72.50
38
0211275168
ref: 38
SCREW
€ 2.50
39
0920905011
ref: 39
PIN(5X15.5)
€ 2.00
40
0944004010
ref: 40
SPRING
€ 1.50
41
3772144B00
ref: 41
CLAMP, LEAD WIRE
€ 3.00
42
0211236108
ref: 42
SCREW
€ 0.00
43
0940406401
ref: 43
CLAMP L:35
€ 2.50
