SPEEDOMETER
DR750SU 1988 (J) GERMANY (E22)

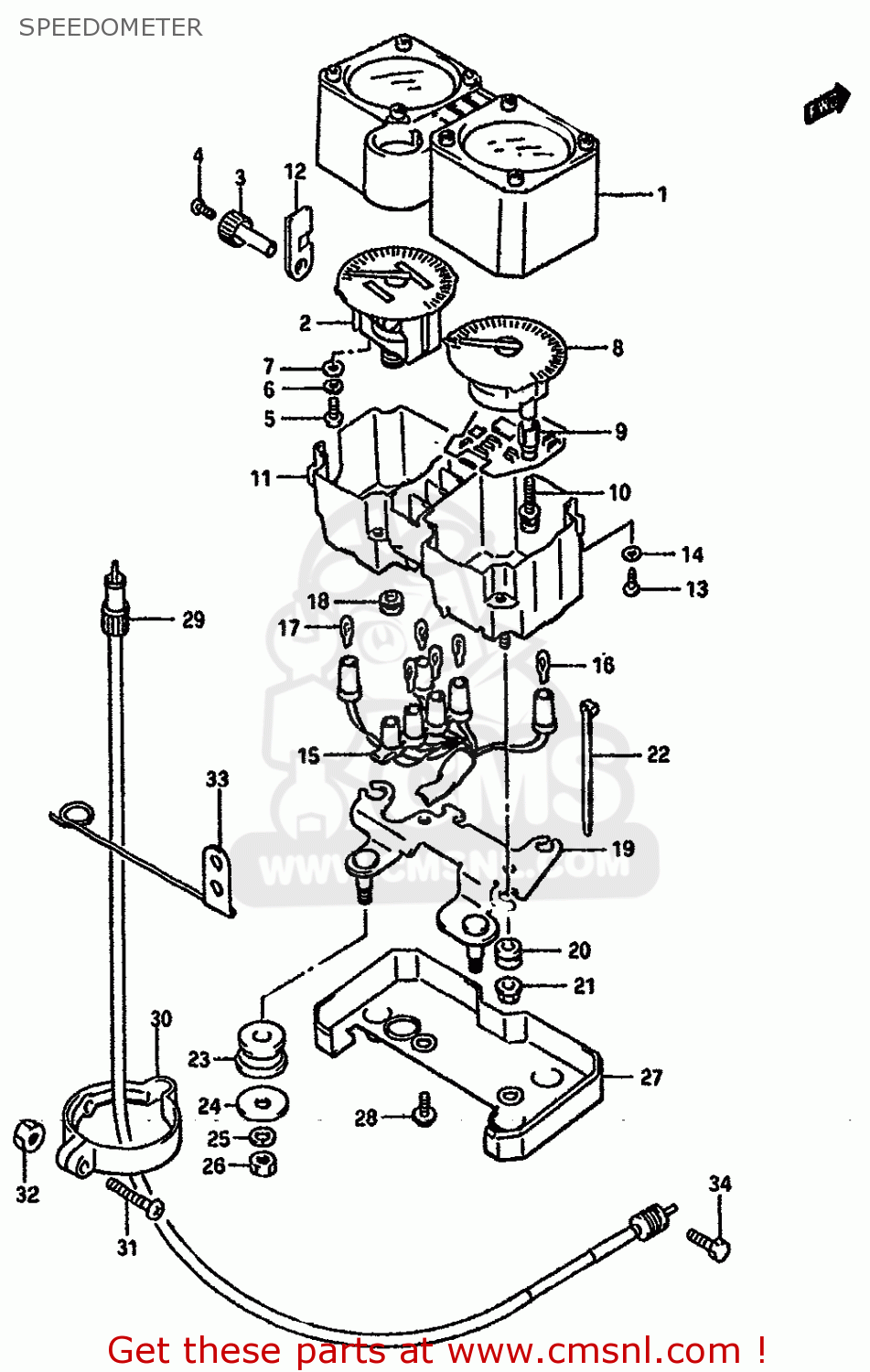

Speedometer diagram DR750SU 1988 (J) GERMANY (E22)
SPEEDOMETER DR750SU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
3415044B10
ref: 1-1
MODEL J
HOOD,METER
€ 99.50
1-2
3415044B30
ref: 1-2
MODEL K
HOOD,METER
€ 99.50
1-3
3415044B20
ref: 1-3
MODEL J E2,E75
HOOD,METER
€ 72.50
1-4
3415044B40
ref: 1-4
MODEL K E2
HOOD,METER
€ 99.50
2-1
3412014A00
ref: 2-1
SPEEDOMETER (KILO)
€ 349.00
2-2
3412014A50
ref: 2-2
SPEEDOMETER
€ 0.00
3-1
3412444B10
ref: 3-1
MODEL J
KNOB,TRIP
€ 7.00
3-2
3412444B30
ref: 3-2
MODEL K
KNOB,TRIP
€ 7.00
4
3418414A00
ref: 4
SCREW,TRIP KNOB
€ 2.00
5
0211203106
ref: 5
SCREW
€ 1.50
6
0832121036
ref: 6
LOCK WASHER
€ 1.50
7
0832221036
ref: 7
WASHER 3.3X8X0
€ 1.50
8
3422044B10
ref: 8
TACHOMETER
€ 225.50
9
3418714A00
ref: 9
SPACER
€ 4.50
10
3428314A00
ref: 10
SCREW
€ 2.00
11
3411144B10
ref: 11
CASE,METER
€ 54.00
12
3419614A00
ref: 12
CUSHION,METER
€ 11.50
13
0311205129
ref: 13
SCREW
€ 1.50
14
0832121057
ref: 14
LOCK WASHER
€ 2.00
15
3417044B10
ref: 15
SOCKET,METER
€ 78.00
16
0947112085
ref: 16
BULB(12V3W,WB371,T7)
€ 3.00
17
0947112100
ref: 17
BULB(12V1.7W,WB372,T7)
€ 2.00
18
3419414A00
ref: 18
CAP
€ 8.00
19
3495044B10
ref: 19
BRACKET,METER
€ 28.00
20
3499643410
ref: 20
CUSHION,METER
€ 3.00
21
3418514A00
ref: 21
NUT
€ 5.50
22
3495416730
ref: 22
CLAMP
€ 2.50
23
3495631001
ref: 23
CUSHION,METER BRACKET
€ 4.50
24
0916008057
ref: 24
WASHER (8.5X20X1.6)
€ 2.00
25
0832121084
ref: 25
WASHER,LOCK,8.
€ 2.50
26
0831011085
ref: 26
NUT
€ 1.50
27-1
3419344B00
ref: 27-1
MODEL J
COVER,LOWER
€ 18.00
27-2
3419344B10
ref: 27-2
MODEL K
COVER,SPEEDOMETER LWR
€ 19.00
28
0354104105
ref: 28
SCREW
€ 1.50
29
3491044B00
ref: 29
CABLE ASSY
€ 40.50
30-1
3493844B00
ref: 30-1
MODEL J
CLAMP,CABLE
€ 8.00
30-2
3493844B0128V
ref: 30-2
MODEL K,FOR 28V
CLAMP,SPEEDOMETER CABLE
€ 5.50
30-3
3493844B0138K
ref: 30-3
MODEL K,FOR 38K
CLAMP,CABLE (BLUE)
€ 8.00
31
0211205257
ref: 31
SCREW
€ 2.00
32
0831011058
ref: 32
NUT
€ 2.50
33
3493844B10
ref: 33
MODEL J
GUIDE, SPEEDOMETER CABLE
€ 7.50
34
0110705167
ref: 34
BOLT
€ 1.50
