STARTING MOTOR
DR750SU 1988 (J) GERMANY (E22)

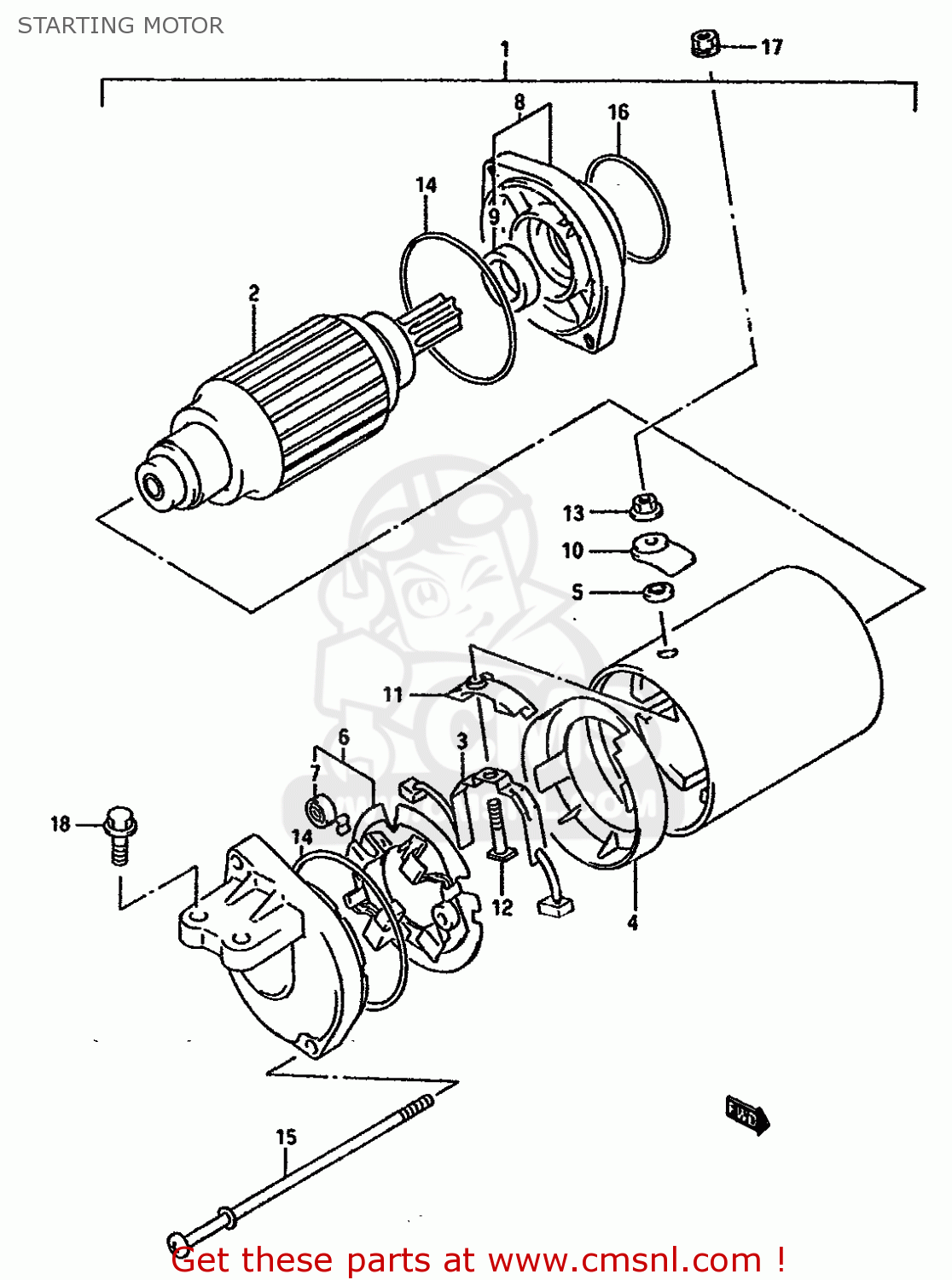

Starting motor diagram DR750SU 1988 (J) GERMANY (E22)
STARTING MOTOR DR750SU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3110044B00H17
ref: 1
MOTOR,STARTING
€ 735.00
2
3131024B01H17
ref: 2
ARMATURE
€ 173.00
3
3113148B00
ref: 3
TERMINAL SET,BRUSH
€ 35.00
4
3117338A00
ref: 4
INSULATOR
€ 14.00
5
3114348B00
ref: 5
GASKET (NAS)
€ 6.50
6
3113248B00
ref: 6
HOLDER SET,BRUSH(-)
€ 51.00
7
3113565010
ref: 7
SPRING
€ 3.00
8
3115044B00
ref: 8
BRACKET SET
€ 98.50
9
3115349210
ref: 9
SEAL,OIL
€ 15.00
10
3117248B10
ref: 10
BUSHING
€ 3.00
11
3117248B20
ref: 11
BUSHING
€ 8.50
12
3113048B00
ref: 12
BOLT
€ 4.50
13
3114548B00
ref: 13
NUT
€ 1.50
14
3126444110
ref: 14
O RING
€ 8.00
15
3128138A00
ref: 15
BOLT
€ 5.00
16
3115624B00
ref: 16
O-RING (D:2.0)
€ 9.50
17
0836135066
ref: 17
NUT
€ 2.00
18
0154706207
ref: 18
BOLT
€ 2.50
