CRANKCASE
DR750SU 1988 (J) GERMANY (E22)

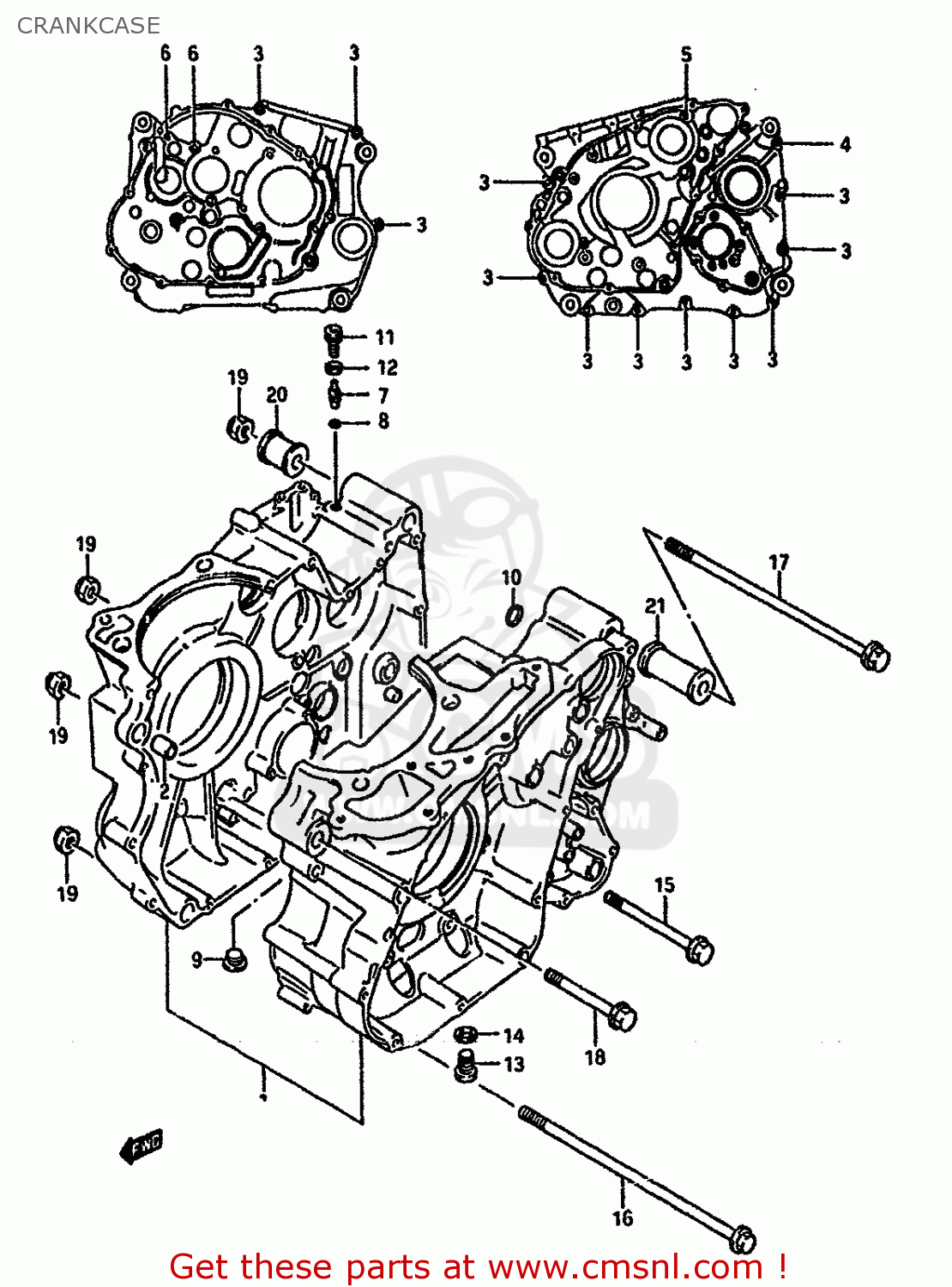

Crankcase diagram DR750SU 1988 (J) GERMANY (E22)
CRANKCASE DR750SU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1130144810
ref: 1
CRANKCASE SET
€ 1,112.50
2
0920613001
ref: 2
PIN
€ 2.50
3
0154706407
ref: 3
BOLT
€ 2.50
4
0154706607
ref: 4
BOLT
€ 2.50
5
0154706657
ref: 5
BOLT
€ 2.00
6
0154706757
ref: 6
BOLT
€ 2.50
7
0949324009
ref: 7
JET(12)
€ 10.50
8
0928004004
ref: 8
O RING(D:1.2,ID:4)
€ 2.00
9
0924816004
ref: 9
PLUG
€ 4.00
10
0928011004
ref: 10
O RING(D:1.9,ID:11)
€ 2.50
11
0711008128
ref: 11
BOLT,LOWER
€ 1.50
12
0916808008
ref: 12
GASKET 8.2X14X1 (NAS)
€ 1.00
13
0110712208
ref: 13
BOLT
€ 3.00
14
0916812002
ref: 14
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
15
0910310065
ref: 15
BOLT
€ 5.50
16
0910310190
ref: 16
BOLT (10X215)
€ 9.50
17
0910310099
ref: 17
BOLT
€ 17.00
18
0910310051
ref: 18
BOLT 10X70
€ 4.00
19
0915910047
ref: 19
NUT
€ 7.50
20
1161017600
ref: 20
SPACER,ENGINE MOUNT
€ 9.00
21
1161014A10
ref: 21
SPACER,ENG MTG,R(L:60)
€ 8.50
