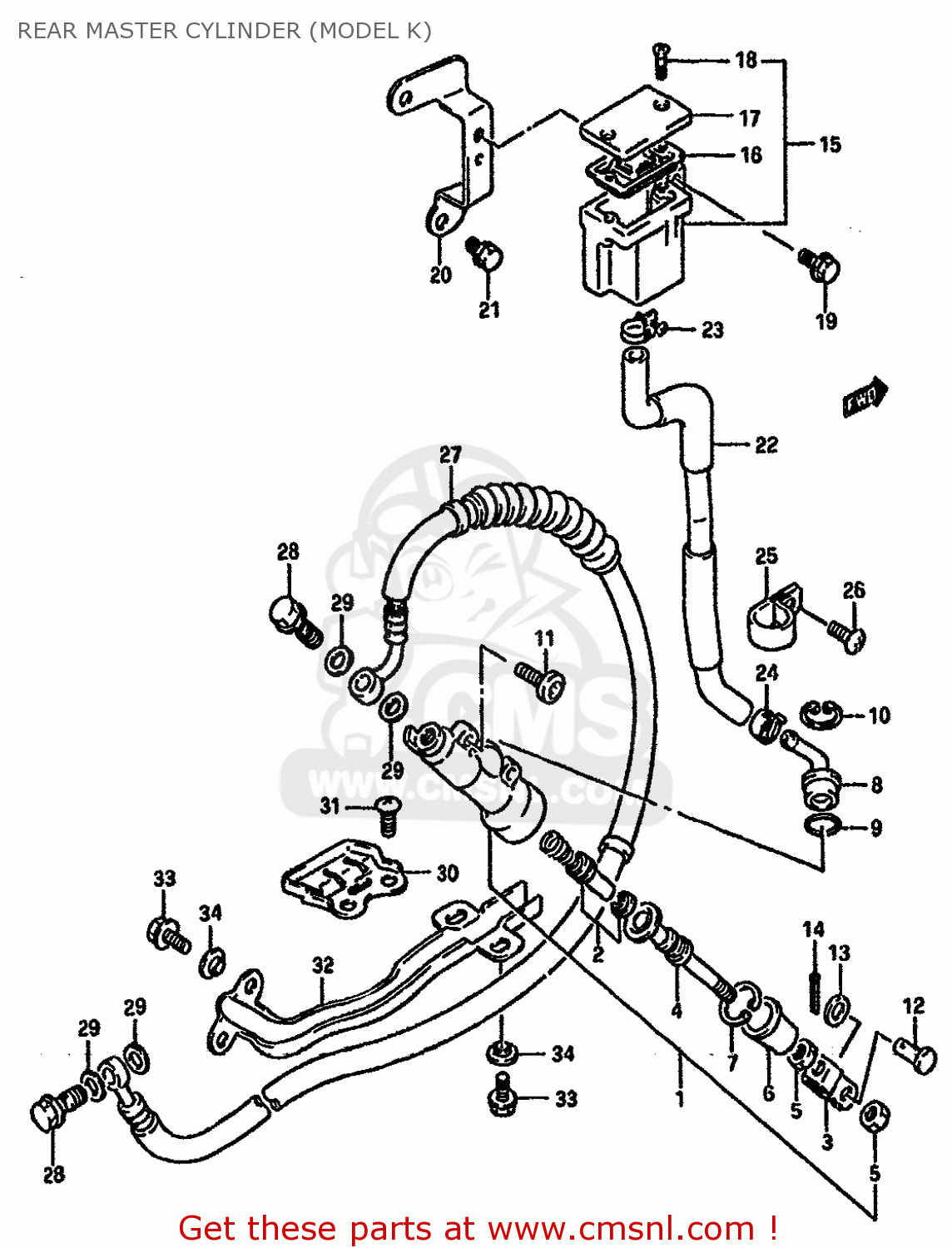

REAR MASTER CYLINDER (MODEL K)

ref

part #

description

quantity

1

6960044B01
ref: 1

CYLINDER ASSY,REAR MASTER

€ 191.00

2

6960034810
ref: 2

PISTON/CUP SET

€ 36.50

3

6969200B20
ref: 3

YOKE

€ 13.50

4

6967044B00
ref: 4

ROD,PUSH

€ 19.50

5

6969305A00
ref: 5

NUT

€ 1.50

6

6969100A00
ref: 6

BOOT

€ 3.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

6967200B20
ref: 8

CONNECTOR

€ 5.00

9

6968634200
ref: 9

O RING

€ 3.50

10

6967400B20
ref: 10

CIRCLIP

€ 3.00

11

0910606064
ref: 11

BOLT(6X18)

€ 6.00

12

0920008048
ref: 12

PIN(8X20)

€ 3.00

13

0916008074
ref: 13

WASHER(8.5X13X1.6)

€ 2.50

14

0411120158
ref: 14

PIN

€ 1.50

15

6974024A00
ref: 15

TANK ASSEMBLY,RESERVOIR

€ 99.50

16

5966704700
ref: 16

DIAPHRAGM

€ 8.00

17

6966924A00
ref: 17

CAP

€ 12.00

18

6968904A00
ref: 18

SCREW

€ 2.00

19

0151706167
ref: 19

BOLT 6X16

€ 1.50

20

6975044B00
ref: 20

PLATE,RESERVOIR TANK

€ 13.00

21

0910306078
ref: 21

BOLT(6X8)

€ 2.00

22

6973044B00
ref: 22

HOSE,RESERVOIR TANK

€ 18.00

23

0940014301
ref: 23

CLAMP

€ 3.00

24

0940112402
ref: 24

CLAMP

€ 2.50

25

0940319404
ref: 25

CLAMP,HOSE GUIDE

€ 4.00

26

0214216128
ref: 26

SCREW

€ 3.50

27

6948044B00
ref: 27

HOSE,REAR BRAKE

€ 103.50

28

0936010017
ref: 28

BOLT UNION

€ 6.50

29

0916110009
ref: 29

WASHER(10X15X1.5)

€ 2.00

30

6924344B1013L
ref: 30

GUIDE,BRAKE HOSE (SILVER)

€ 6.50

31

0214206164
ref: 31

SCREW

€ 2.50

32

6926144B00
ref: 32

PROTECTOR, BRAKE HOSE

€ 20.00

33

0151706164
ref: 33

BOLT

€ 2.50

34

0916906037
ref: 34

WASHER

€ 6.50

all assemblies
