CALIPER (MODEL Z)

GN125 1991 (M) (E01 E02 E04 E21 E34)

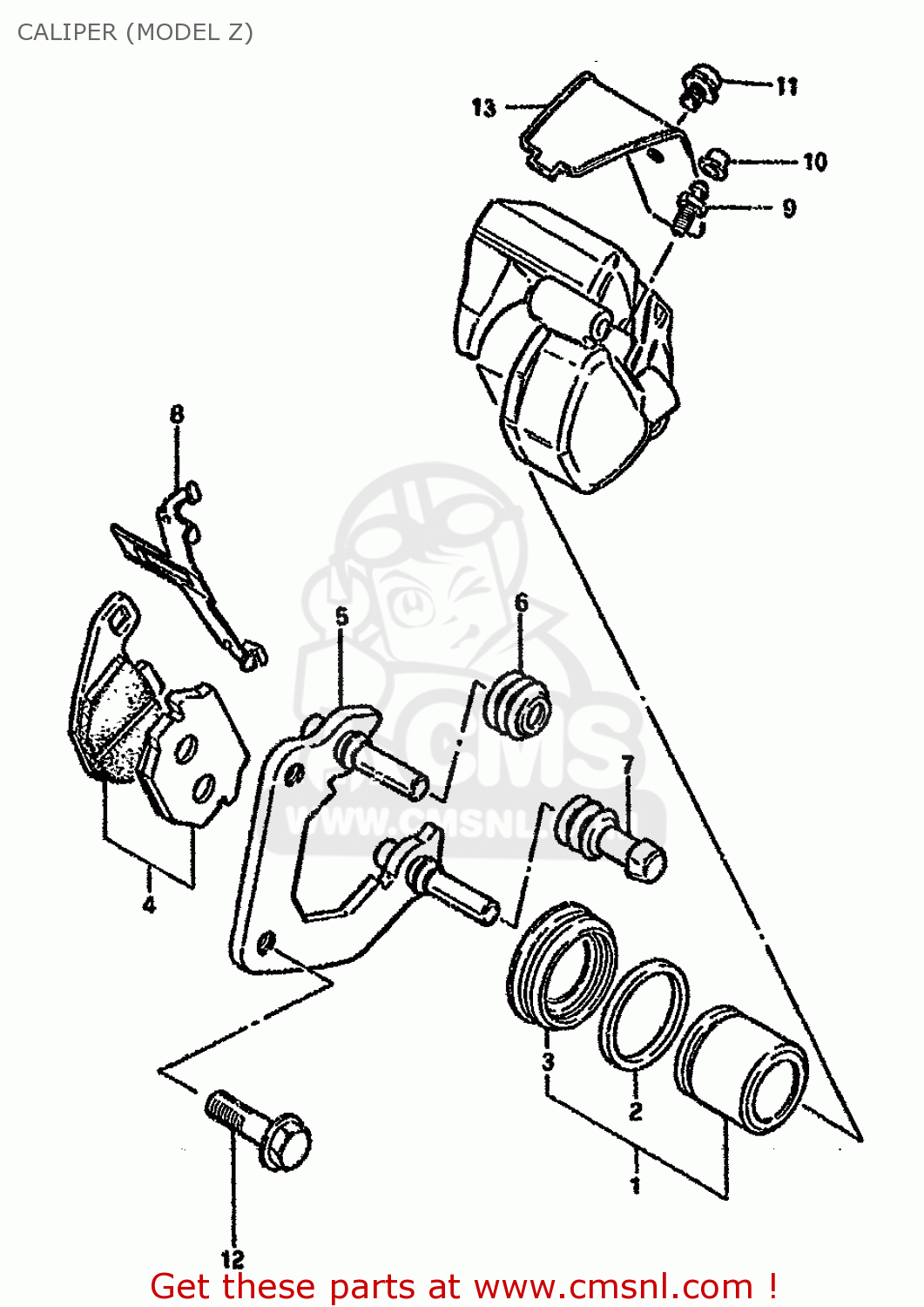

Caliper (model z) diagram GN125 1991 (M) (E01 E02 E04 E21 E34)

CALIPER (MODEL Z) GN125 1991 (M) (E01 E02 E04 E21 E34)

CALIPER (MODEL Z) GN125 1991 (M) (E01 E02 E04 E21 E34)

prices are in EUR

ref

part #

description

quantity

0

5930033204
ref: 0
TOKICO

CALIPER ASSY,LH

€ 299.00

1

5930036830
ref: 1
-59300-04850

PISTON SET

€ 53.00

2

5910739100
ref: 2

SEAL,PISTON

€ 18.00

3

5930836500
ref: 3

BOOT,PISTON

€ 12.50

4

5930033812
ref: 4

PAD SET,BRAKE (MCA)

€ 47.50

5

5935036501
ref: 5

CARRIER,L

€ 52.00

6

5931236500
ref: 6

BOOT,AXLE

€ 4.00

7

5931336500
ref: 7

INSULATOR,AXLE

€ 5.50

8

5931536500
ref: 8

SPRING,PAD

€ 11.00

9

5912118410
ref: 9

BLEEDER

€ 8.00

10

5912218410
ref: 10

CAP,BREATHER

€ 6.00

11

0211275125
ref: 11

SCREW

€ 2.50

12

0151708307
ref: 12

BOLT 8X30

€ 3.50

13

5931313001
ref: 13

PROTECTOR,CALIPER

€ 4.50
