HANDLE SWITCH (MODEL N,GN125ER)

GN125 1991 (M) (E01 E02 E04 E21 E34)

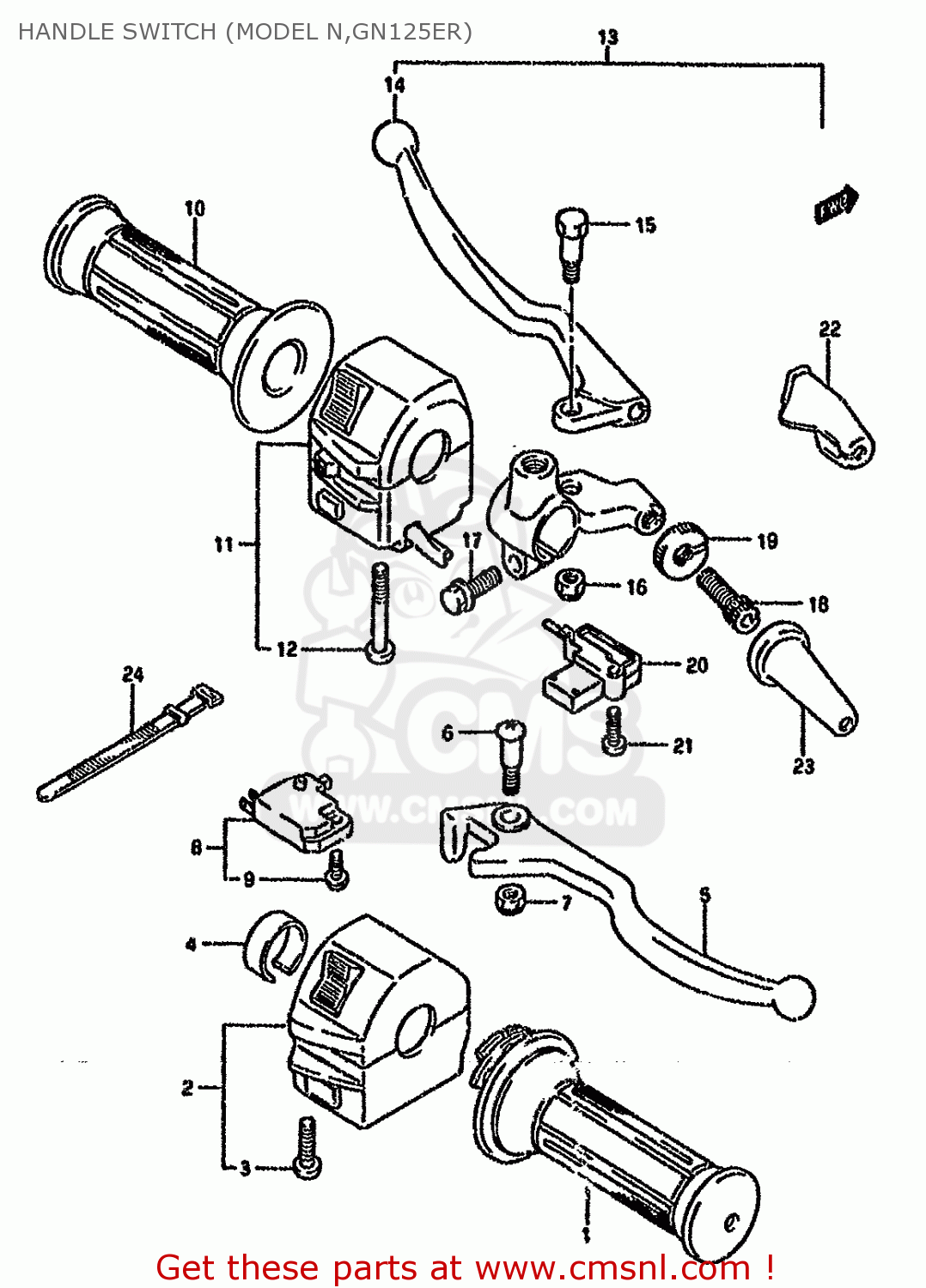

Handle switch (model n,gn125er) diagram GN125 1991 (M) (E01 E02 E04 E21 E34)

HANDLE SWITCH (MODEL N,GN125ER) GN125 1991 (M) (E01 E02 E04 E21 E34)
HANDLE SWITCH (MODEL N,GN125ER) GN125 1991 (M) (E01 E02 E04 E21 E34)
HANDLE SWITCH (MODEL N,GN125ER) GN125 1991 (M) (E01 E02 E04 E21 E34)
prices are in EUR
ref
part #
description
quantity
1
5711034300
ref: 1
GRIP,THROTTLE
5711034300
€ 24.50
2
3720045C11
ref: 2
SWITCH ASSEMBLY,HANDLE,RIGHT
€ 92.50
3
0211205205
ref: 3
SCREW 5X20
0211205205
€ 2.50
4
5611505300
ref: 4
SPACER,HANDLE SWITCH,R
€ 6.00
5
5742113001
ref: 5
LEVER,BRAKE
5742113001
€ 18.00
6
5743113030
ref: 6
SCREW,BRAKE LEVER
5743113030
€ 6.50
7
0831921065
ref: 7
NUT
0831921065
€ 2.50
8
5746017C00
ref: 8
SWITCH ASSEMBLY,STOP
5746017C00
€ 32.50
9
5746517C00
ref: 9
SCREW
5746517C00
€ 1.50
10
5721134300
ref: 10
GRIP,L
5721134300
€ 10.00
11
3740006B11
ref: 11
SWITCH ASSEMBLY,HANDLE,LEFT
€ 102.00
12
0211205405
ref: 12
SCREW
€ 2.00
13
5750005390
ref: 13
LEVER ASSY,CLUTCH
5750005390
€ 53.00
14
5762005390
ref: 14
LEVER,CLUTCH
5762005390
€ 65.50
15
5743145C00
ref: 15
BOLT,LEVER SET
5743145C00
€ 10.50
16
0831921065
ref: 16
NUT
0831921065
€ 2.50
17
0154706205
ref: 17
BOLT 6X20
€ 2.50
18
5744145C00
ref: 18
ADJUSTER,WIRE
5744145C00
€ 8.50
19
5744245C00
ref: 19
NUT,LOCK
5744245C00
€ 7.50
20
5756005A00
ref: 20
SWITCH,CLUTCH
5756005A00
€ 11.00
21
0213203208
ref: 21
SCREW
€ 0.00
22
5766131000
ref: 22
COVER,CLUTCH LEVER
5766131000
€ 5.50
23
5827331000
ref: 23
BOOT,CLUTCH CABLE
5827331000
€ 2.50
24
0940712402
ref: 24
CLAMP(L:120)
0940712402
€ 3.00
