Buy Suzuki GN Parts Online


CARBURETOR

GN125 1991 (M) (E01 E02 E04 E21 E34)

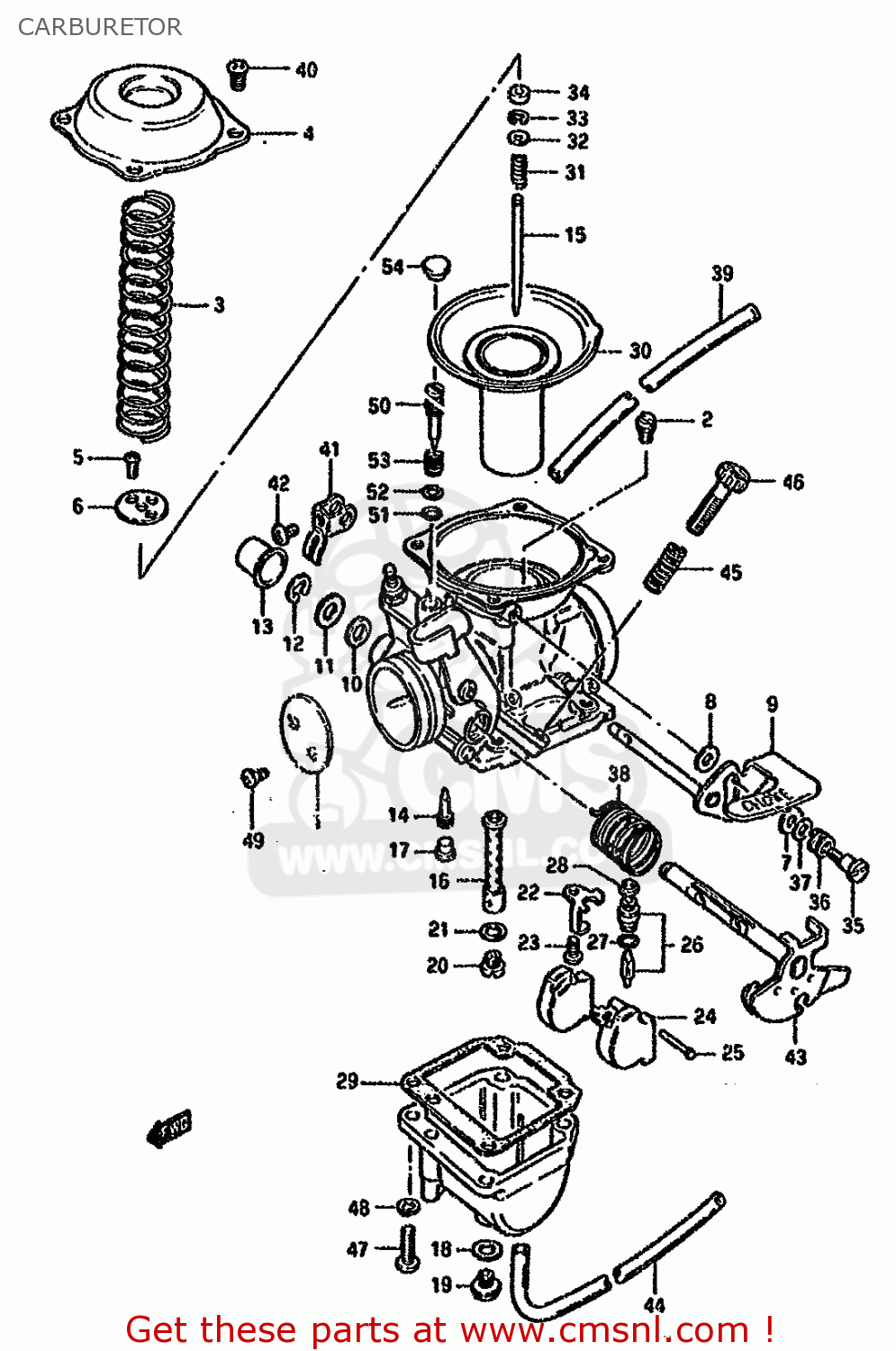

Carburetor diagram GN125 1991 (M) (E01 E02 E04 E21 E34)

CARBURETOR GN125 1991 (M) (E01 E02 E04 E21 E34)
CARBURETOR GN125 1991 (M) (E01 E02 E04 E21 E34)
CARBURETOR GN125 1991 (M) (E01 E02 E04 E21 E34)
prices are in EUR
ref
part #
description
quantity
0
1320005311
ref: 0
CARBURETOR ASSY
€ 332.50
0
1320005370
ref: 0
E18 F.NO.110520~
CARBURETOR ASSY
€ 0.00
0
13200053C0
ref: 0
E22
CARBURETOR ASSY
€ 0.00
0
1320005300
ref: 0
MODEL N/R:E30
CARBURETOR ASSEMBLY
€ 144.50
1
1355133200
ref: 1
VALVE,THROTTLE
€ 0.00
2
0949136005
ref: 2
JET,MAIN(180)
0949136005
€ 9.50
3
1350333200
ref: 3
SPRING
1350333200
€ 8.50
4
1350233210
ref: 4
COVER
€ 19.50
5
1339934010
ref: 5
SCREW
€ 2.00
6
1338937400
ref: 6
PLATE
1338937400
€ 5.50
7
1343105300
ref: 7
PACKING (NAS)
1343105300
€ 5.50
8
1343244110
ref: 8
WASHER,STARTER LEVER (4.1X12X0.8)
1343244110
€ 2.00
9
1341005300
ref: 9
SHAFT ASSY,STARTER
€ 19.00
10
1365151010
ref: 10
SEAL
1365151010
€ 4.00
11
1355747070
ref: 11
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
12
1361744080
ref: 12
E RING
1361744080
€ 3.50
13
1357847070
ref: 13
CAP
1357847070
€ 5.50
14
0949235008
ref: 14
JET,PILOT(35)
0949235008
€ 7.50
15-1
1338305310
ref: 15-1
NEEDLE,JET
1338305310
€ 15.00
15-2
1338305300
ref: 15-2
MODEL N/R:E30
NEEDLE,JET
€ 0.00
16
0949400370
ref: 16
JET,NEEDLE(P-2)
0949400370
€ 21.00
17
1335744080
ref: 17
PLUG,NEEDLE JET
1335744080
€ 4.50
18
1324644080
ref: 18
GASKET (NAS)
1324644080
€ 3.50
19
1324744080
ref: 19
PLUG,DRAIN
1324744080
€ 9.50
20
0949120012
ref: 20
JET,MAIN(102.5)
0949120012
€ 8.50
21
1333244080
ref: 21
WASHER,NEEDLE NOZZLE
€ 2.50
22-1
1337311400
ref: 22-1
PLATE,NEEDLE VALVE FITING
1337311400
€ 7.00
22-2
1337339110
ref: 22-2
E22
PLATE
1337339110
€ 6.50
23
0211204066
ref: 23
SCREW
€ 2.00
24
1325005300
ref: 24
FLOAT
1325005300
€ 30.00
25
1325492311
ref: 25
PIN,FLOAT
1325492311
€ 2.00
26
1337044500
ref: 26
VALVE ASSY,NEEDLE
1337044500
€ 40.50
27
1337444080
ref: 27
O-RING,NEEDLE VALVE
1337444080
€ 6.00
28
1337684110
ref: 28
FILTER
€ 6.50
29-1
1325133200
ref: 29-1
GASKET,FLOAT CHAMBER (NAS)
€ 12.00
29-2
1325105400
ref: 29-2
E22
GASKET,FLOAT CHAMBER (NAS)
1325105400
€ 12.00
30-1
1350033200
ref: 30-1
DIAPHRAGM ASSEMBLY
1350033200
€ 203.50
30-2
1350005400
ref: 30-2
E22
DIAPHRAGM ASSEMBLY
€ 203.50
31
1338844030
ref: 31
SPRING
1338844030
€ 6.00
32
1338244030
ref: 32
WASHER
1338244030
€ 3.50
33
1339410010
ref: 33
CLIP
1339410010
€ 4.50
34
1338747010
ref: 34
RING
1338747010
€ 7.50
35
1343833110
ref: 35
SCREW
1343833110
€ 5.50
36
1342643010
ref: 36
SPRING
1342643010
€ 4.50
37
1361543010
ref: 37
WASHER,STARTER SHAFT
1361543010
€ 2.50
38
1357337100
ref: 38
SPRING,THROTTLE SHAFT
€ 0.00
39
1368422A00
ref: 39
L:550-300
HOSE
€ 13.00
40
0211205086
ref: 40
SCREW
€ 2.00
41
1342205300
ref: 41
LEVER
€ 0.00
42
1360531210
ref: 42
SCREW
1360531210
€ 3.00
43
1355005300
ref: 43
SHAFT,THROTTLE
€ 0.00
44
1368337420
ref: 44
L:500-350
HOSE
€ 5.50
45
1326837420
ref: 45
SPRING,THROTTLE SCREW
1326837420
€ 3.50
46
1326737100
ref: 46
SCREW,THROTTLE STOP
€ 9.00
47
0211204166
ref: 47
SCREW
€ 1.00
48
0832121046
ref: 48
LOCK WASHER
0832121046
€ 2.00
49
1360444080
ref: 49
SCREW
1360444080
€ 3.50
50-1
1327945410
ref: 50-1
MODEL Z/D
SCREW, PILOT
€ 8.00
50-2
1327945400
ref: 50-2
MODEL K/M EXCEPT E18
SCREW,PILOT
1327945400
€ 8.00
51
1329529900
ref: 51
EXCEPT E18 F.NO.1105
O RING,PILOT AIR SCREW
1329529900
€ 4.00
52
1329129900
ref: 52
EXCEPT E18 F.NO.1105
WASHER
1329129900
€ 2.00
53
1326847070
ref: 53
EXCEPT E18 F.NO.1105
SPRING
1326847070
€ 5.00
54
1335736A00
ref: 54
MODEL K/M EXCEPT E18
PLUG
1335736A00
€ 4.50
