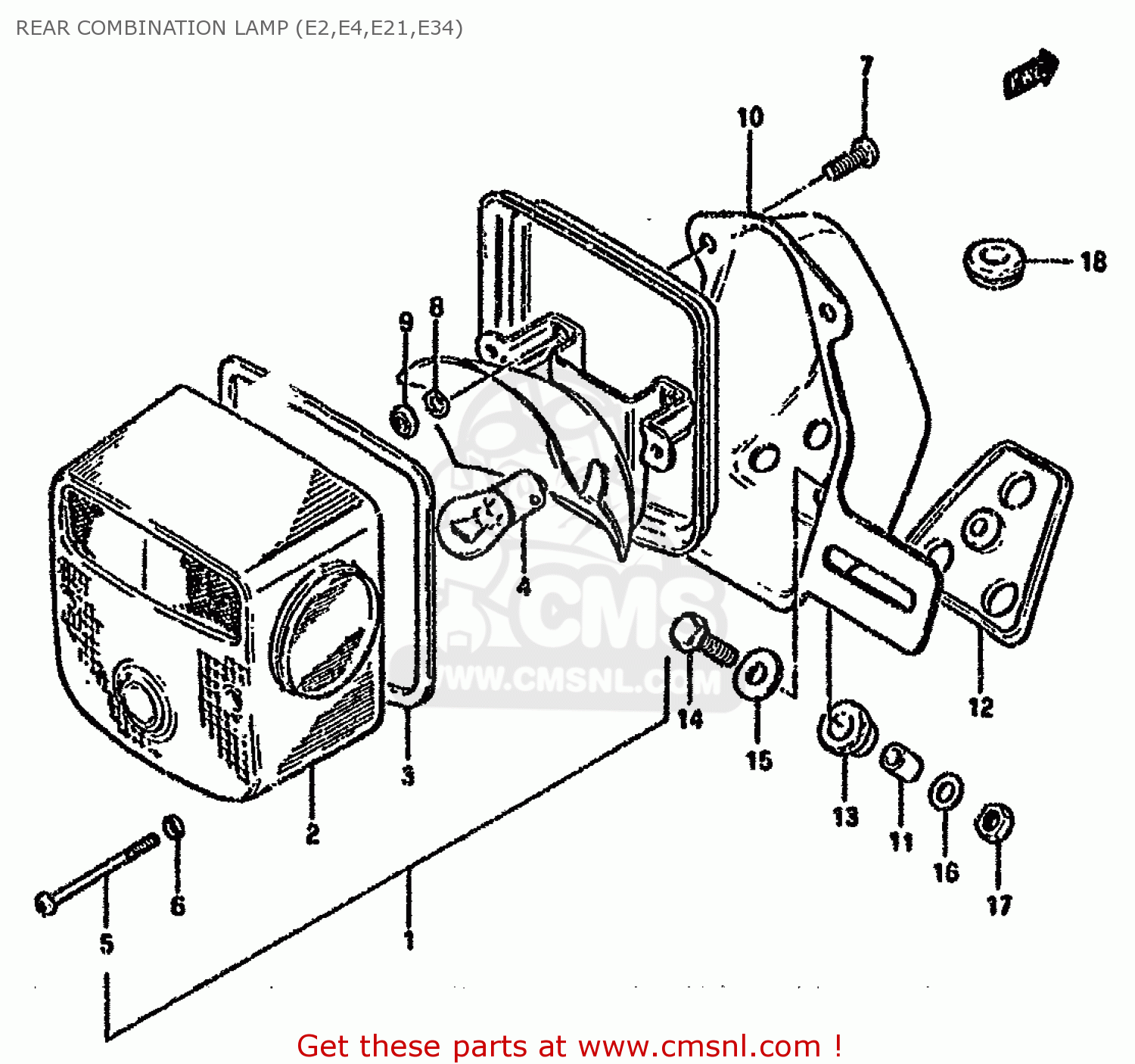

REAR COMBINATION LAMP (E2,E4,E21,E34)

ref

part #

description

quantity

1-1

3572038320
ref: 1-1
REFLEX REFLECTOR:RR3

LAMP UNIT,TAIL

€ 138.00

1-2

3572038321
ref: 1-2
REFLEX REFLECTOR:RR0

LAMP UNIT,TAIL

€ 138.00

1-3

3572038350
ref: 1-3
MODEL M/R

LAMP UNIT,RR COMBNATION

€ 138.00

2-1

3571248623
ref: 2-1
RR35950

LENS

€ 66.00

2-2

3571211323
ref: 2-2
RR016

LENS

€ 66.00

2-3

3571238350
ref: 2-3
MODEL M/R

LENS

€ 66.00

3

3571330510
ref: 3

GASKET (NAS)

€ 6.00

4-1

0947112057
ref: 4-1
MODEL Z/D/K

BULB 12V21/5W

€ 6.00

4-2

0947112046
ref: 4-2
MODEL M/R

BULB(12V21/5W)

€ 1.50

5

0912504002
ref: 5

SCREW (4X55)

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0211206128
ref: 7

SCREW 6X12

€ 2.00

8

0832121067
ref: 8

WASHER,LOCK

€ 2.50

9

0831011067
ref: 9

NUT 6MM

€ 2.50

10

3573038310
ref: 10

BRACKET UNIT,TAIL LAMP

€ 57.50

11

3576626470
ref: 11

SPACER

€ 2.00

12

3576526470
ref: 12

CUSHION

€ 10.00

13

3576426470
ref: 13

CUSHION

€ 2.50

14-1

0110706257
ref: 14-1
MODEL Z/D/K

BOLT

€ 2.00

14-2

0911606011
ref: 14-2
MODEL M/R

BOLT 6X20

€ 2.00

15

0916006027
ref: 15

WASHER (6.5X20X1.2)

€ 2.00

16

0832221067
ref: 16

WASHER

€ 2.00

17

0831011067
ref: 17

NUT 6MM

€ 2.50

18

0930809004
ref: 18

GROMMET

€ 0.00

all assemblies
