CAM SHAFT-VALVE
GN125 1991 (M) (E01 E02 E04 E21 E34)

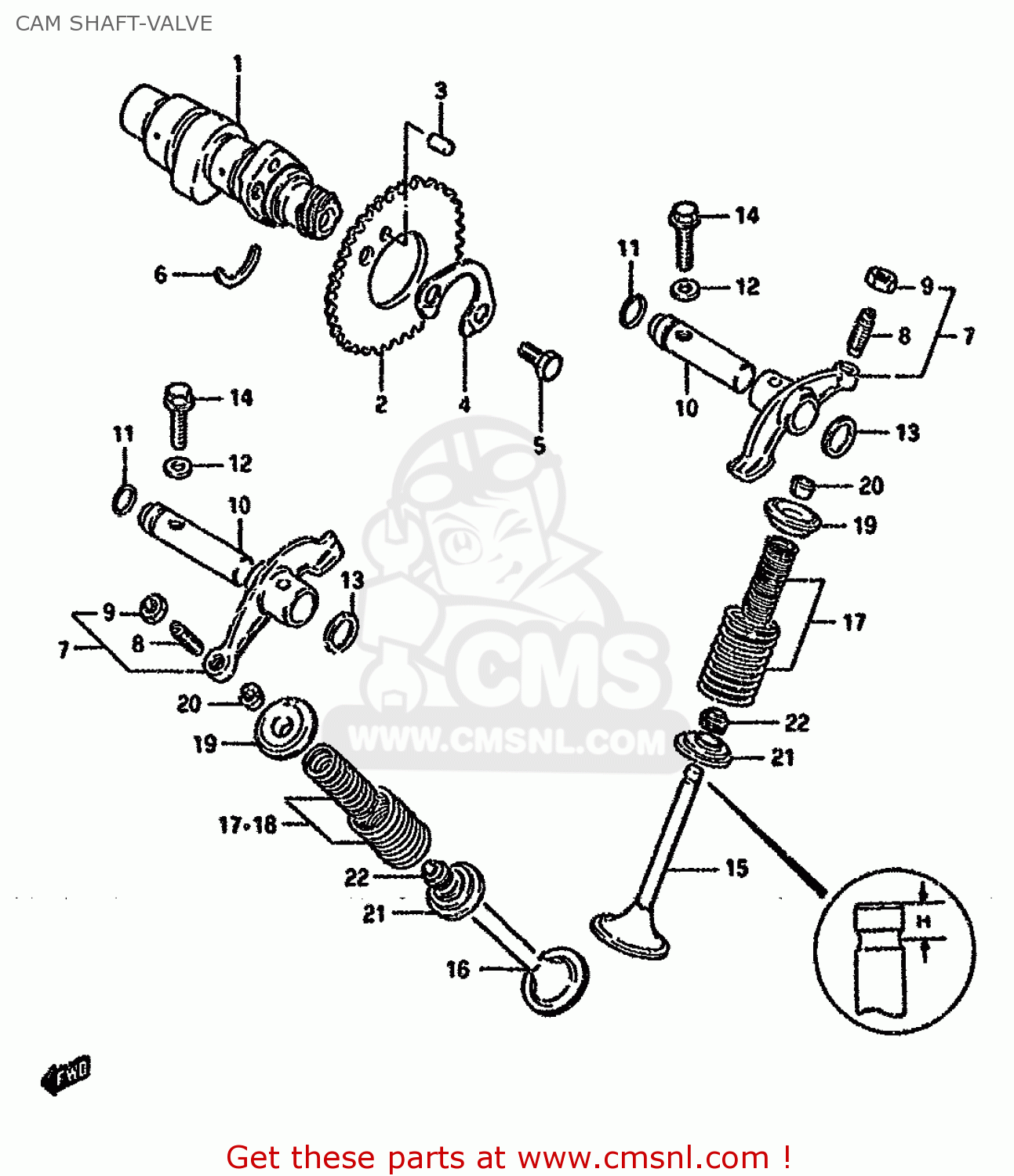

Cam shaft-valve diagram GN125 1991 (M) (E01 E02 E04 E21 E34)
CAM SHAFT-VALVE GN125 1991 (M) (E01 E02 E04 E21 E34)
×
prices are in EUR
ref
part #
description
quantity
1-1
1271105990
ref: 1-1
E.NO.100050~100533 E
CAMSHAFT
€ 108.50
1-2
1271105201
ref: 1-2
~E.NO.100049 E.NO.10
CAMSHAFT
€ 172.50
2
1274105201
ref: 2
SPROCKET,CAMSHAFT
€ 14.00
3
0926105005
ref: 3
PIN(5X8)
€ 1.50
4
1274705201
ref: 4
WASHER,SPROCKET
€ 2.00
5
0911106032
ref: 5
BOLT(6X10.5)
€ 2.00
6
0939022002
ref: 6
C RING
€ 2.00
7
1285025C00
ref: 7
ARM ASSY,VALVE ROCKER
€ 28.00
8
1284232411
ref: 8
SCREW,TAPPET ADJUSTING
€ 5.00
9
1284332400
ref: 9
NUT,ADJUSTING SCREW
€ 2.50
10
1286105201
ref: 10
SHAFT,VALVE ROCKET
€ 9.50
11
0928009005
ref: 11
O RING(D:1.9,ID:8.6)
€ 4.00
12
0916806023
ref: 12
GASKET(5.8X13X1.2) (NAS)
€ 2.00
13
0916412021
ref: 13
WASHER
€ 2.00
14-1
0151706257
ref: 14-1
MODEL Z/D/K/M/N
BOLT 6X25
€ 2.50
14-2
0155006257
ref: 14-2
MODEL R
BOLT
€ 2.50
15-1
1291105211
ref: 15-1
~E.NO.109585
VALVE,INTAKE
€ 32.00
15-2
1291104B00
ref: 15-2
E.NO.109586~
VALVE,INTAKE
€ 41.50
16-1
1291205211
ref: 16-1
~E.NO.109585
VALVE,EXHAUST
€ 48.00
16-2
1291224400
ref: 16-2
E.NO.109586~
VALVE,EXHAUST
€ 41.50
17-1
1292005210
ref: 17-1
~E.NO.109585
SPRING SET,VALVE
€ 10.50
17-2
1292005210
ref: 17-2
E.NO.109586~
SPRING SET,VALVE
€ 10.50
18
1292005240
ref: 18
E.NO.109586~
SPRING SET,VALVE
€ 10.50
19
1293149200
ref: 19
RETAINER,VALVE SPRING
€ 5.50
20-1
1293249200
ref: 20-1
~E.NO.109585
COTTER VALVE
€ 2.50
20-2
1293224400
ref: 20-2
E.NO.109586~
COTTER,VALVE
€ 2.00
21
1293349201
ref: 21
SEAT,VALVE SPRING
€ 4.50
22
0928905015
ref: 22
-09289-05003
SEAL,OIL(5.5X11X8.2)
€ 6.50
