CYLINDER
GN125 1991 (M) (E01 E02 E04 E21 E34)

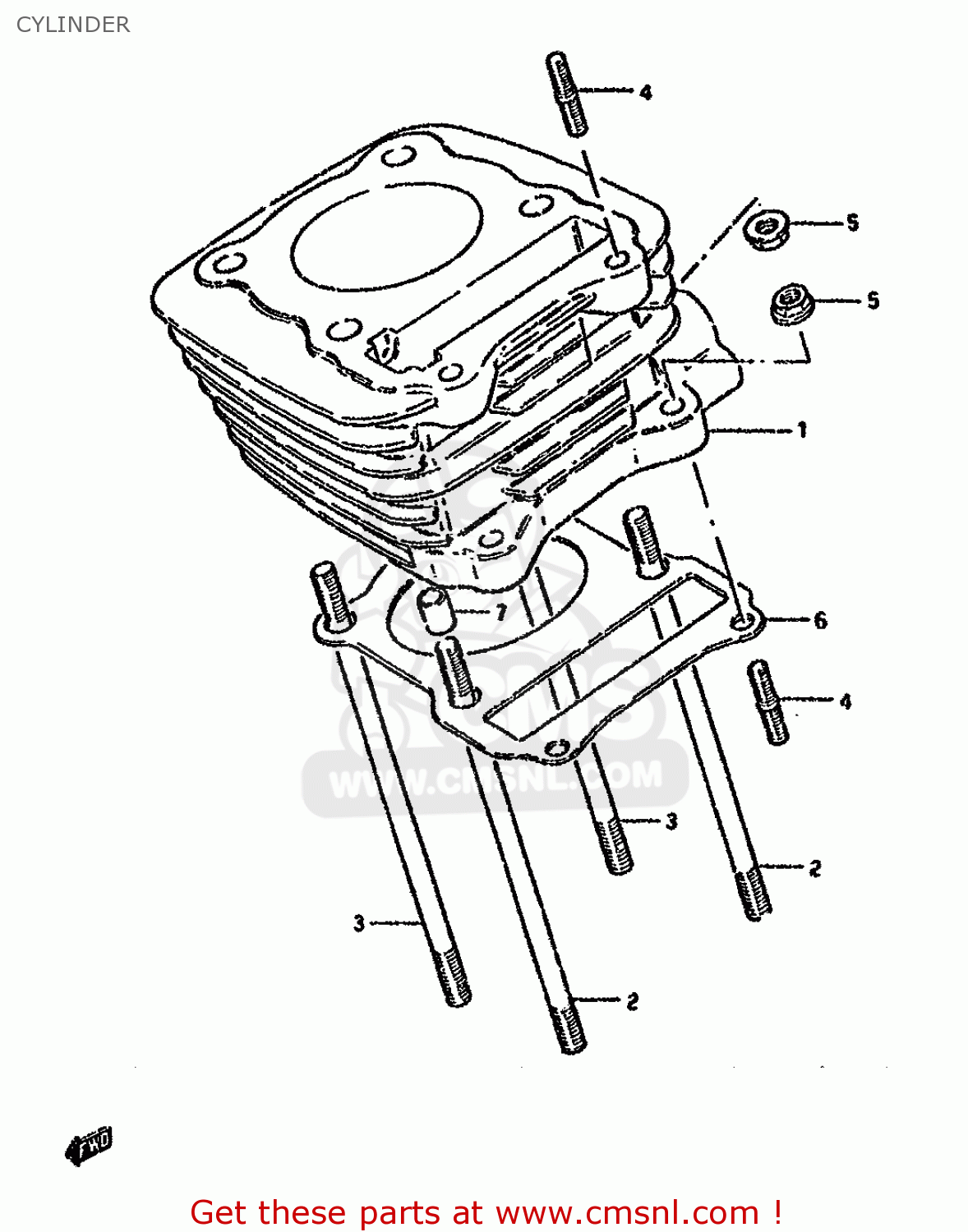

Cylinder diagram GN125 1991 (M) (E01 E02 E04 E21 E34)
CYLINDER GN125 1991 (M) (E01 E02 E04 E21 E34)
×
prices are in EUR
ref
part #
description
quantity
1
1121005202
ref: 1
CYLINDER
€ 255.50
2
0910808062
ref: 2
BOLT,STUD
€ 4.50
3
0910808089
ref: 3
BOLT,STUD
€ 6.00
4
0142106257
ref: 4
BOLT,STUD
€ 2.50
5-1
0915906017
ref: 5-1
MODEL Z/D/K/M/N
NUT
€ 2.50
5-2
0831610067
ref: 5-2
MODEL R
NUT
€ 2.00
6-1
1124105200
ref: 6-1
MODEL Z/D/K
GASKET,CYLINDER (MCA)
€ 4.50
6-2
1124105311
ref: 6-2
MODEL M/N/R-11241-05
GASKET,CYLINDER (NAS)
€ 4.50
7-1
0421111169
ref: 7-1
PIN
€ 2.00
7-2
0421111149
ref: 7-2
PIN
€ 2.00
