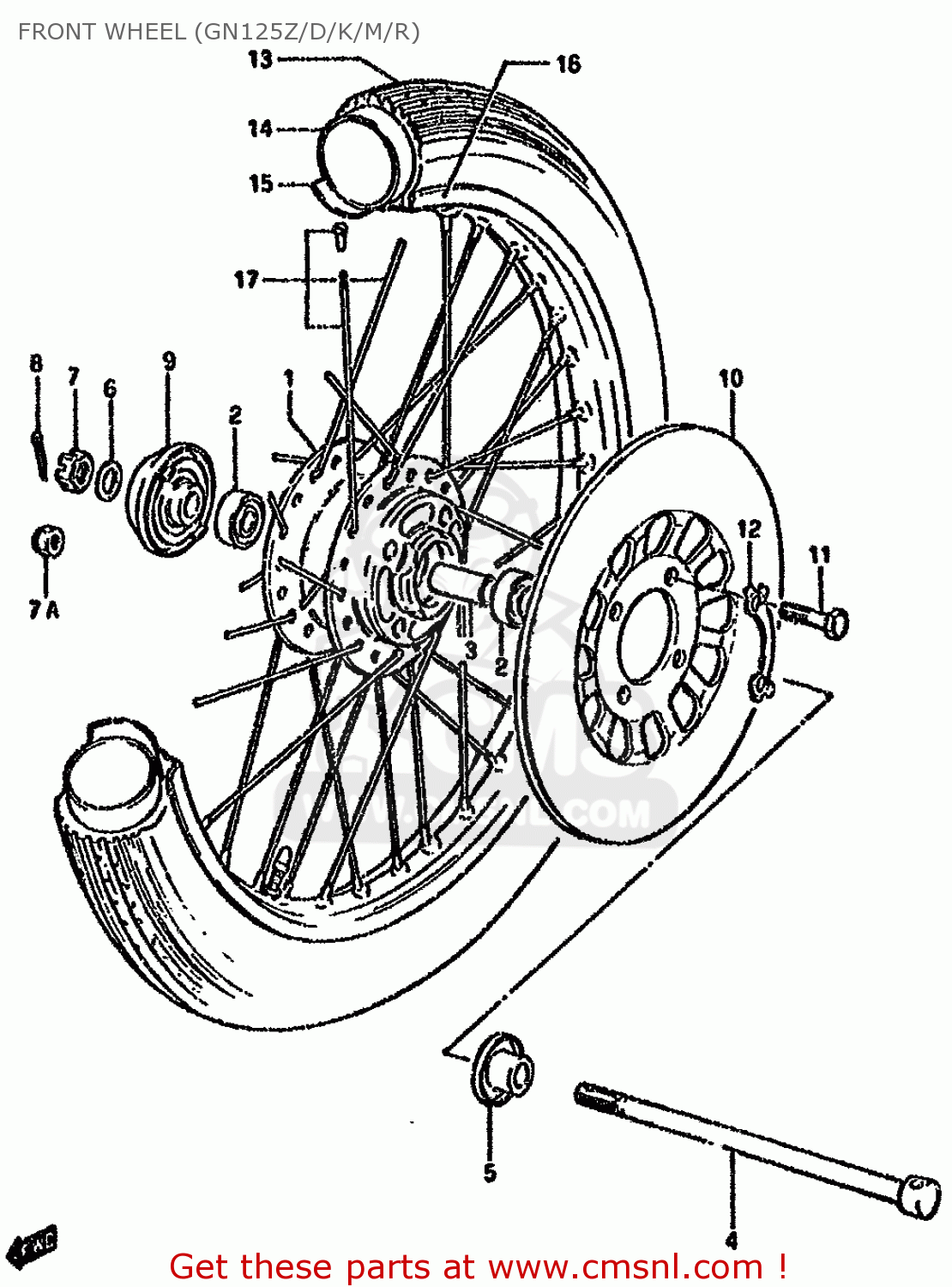

FRONT WHEEL (GN125Z/D/K/M/R)

ref

part #

description

quantity

1-1

5411136202
ref: 1-1
~F.NO.179060

HUB,FRONT

€ 503.50

1-2

5411136210
ref: 1-2
F.NO.179061~

HUB,FR WHEEL

€ 503.50

2

0812363017
ref: 2

BEARING

€ 13.50

3

0918012041
ref: 3

SPACER (12.6X19X52)

€ 4.50

4-1

5471141100
ref: 4-1
-54711-41101

AXLE,FRONT

€ 42.00

4-2

5471141101
ref: 4-2

AXLE,FR

€ 42.00

4-3

5471105300
ref: 4-3
E22

AXLE,FR

€ 21.50

5

5474011300
ref: 5

SPACER,FR AXLE,L

€ 13.50

6-1

0832211128
ref: 6-1
MODEL Z/D/K/M E1,E2,

WASHER

€ 2.00

6-2

0832201127
ref: 6-2
MODEL R E1,E2,E4,E18

WASHER

€ 2.00

7-1

0831431128
ref: 7-1
MODEL Z/D/K/M E1,E2,

NUT 12MM

€ 2.00

7-2

0914112003
ref: 7-2
MODEL R E1,E2,E4,E18

NUT

€ 4.50

7A

0831931128
ref: 7A
E22

NUT 12MM

€ 4.00

8

0411130308
ref: 8
E1,E2,E4,E18,E21,E34

COTTER PIN

€ 1.50

9

5460036400
ref: 9

BOX ASSY,SPEEDOMETER GEAR

€ 60.00

10

5921113001
ref: 10

DISC,FR BRAKE

€ 186.50

11-1

0910008094
ref: 11-1
MODEL Z/D/K/M

BOLT(8X30)

€ 2.50

11-2

0910008140
ref: 11-2
MODEL R

BOLT(8X25)

€ 2.00

12

0916908019
ref: 12

WASHER

€ 2.00

13-1

5510039310
ref: 13-1
MODEL Z/D/K

TIRE,FRONT

€ 201.00

13-2

5510039320
ref: 13-2
MODEL M/R-55100-12B0

TIRE,FRONT

€ 201.00

13-3

5510012B00
ref: 13-3

TIRE,FR(2.75-18)

€ 201.00

14

5520011601
ref: 14

TUBE,INNER

€ 24.50

15

5526111010
ref: 15

PROTECTOR,INNER TUBE

€ 3.50

16-1

5531136321
ref: 16-1
MODEL Z/D

RIM,FRONT WHEEL

€ 98.50

16-2

5531118420
ref: 16-2
MODEL K/M/R

RIM,FR WHEEL

€ 98.50

17

5532036221
ref: 17

SPOKE ASSY,FR

€ 33.50

all assemblies
