HEADLAMP
GN125 1991 (M) (E01 E02 E04 E21 E34)

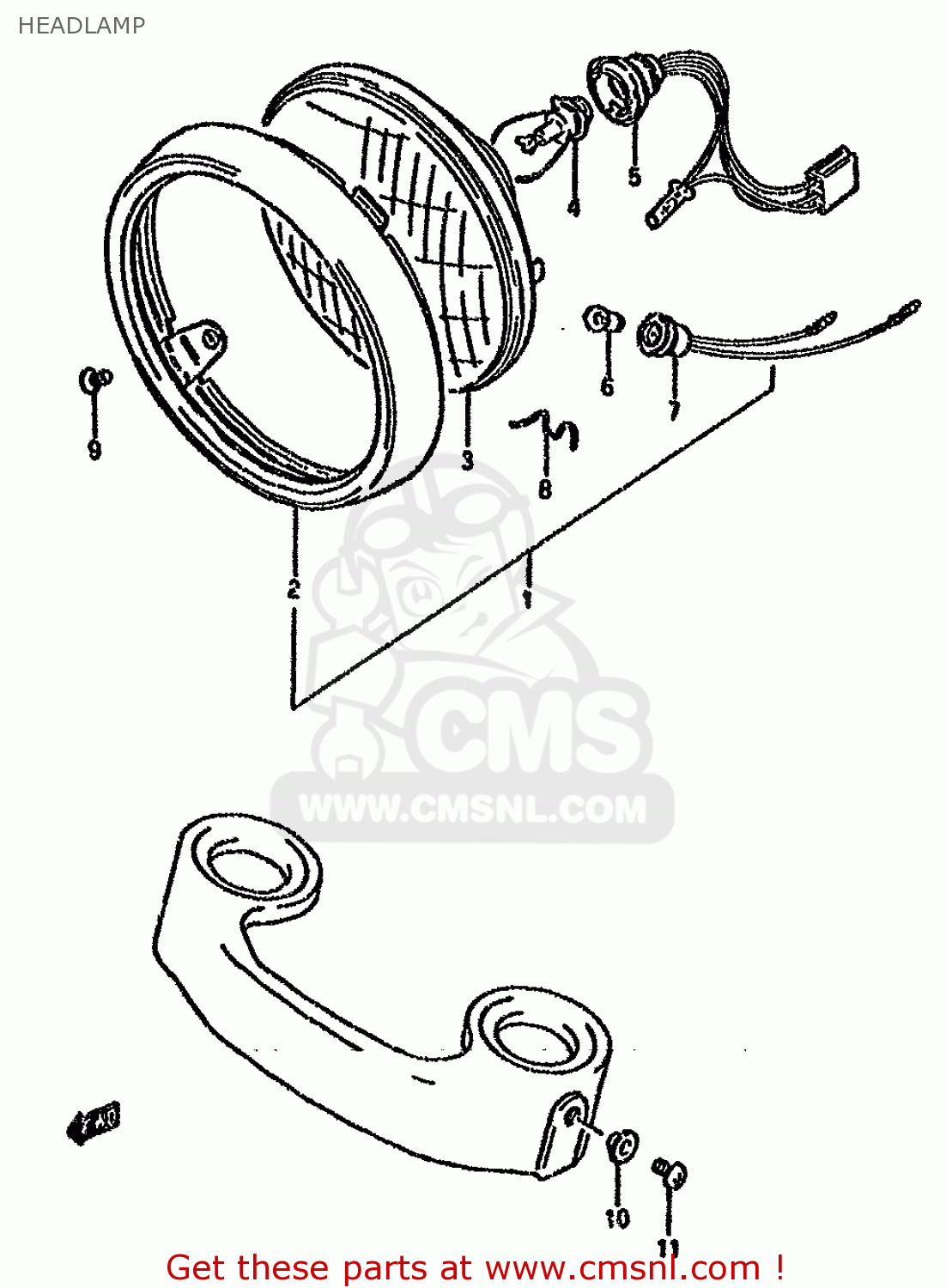

Headlamp diagram GN125 1991 (M) (E01 E02 E04 E21 E34)
HEADLAMP GN125 1991 (M) (E01 E02 E04 E21 E34)
×
prices are in EUR
ref
part #
description
quantity
1
3510044270
ref: 1
HEADLAMP ASSY
€ 144.50
2
3511137350
ref: 2
RIM
€ 42.00
3
3512144270
ref: 3
LAMP UNIT
€ 55.00
4
0947112044
ref: 4
BULB
€ 8.50
5
3517144270
ref: 5
SOCKET
€ 34.50
6
0947112001
ref: 6
BULB(12V3.4W,STANLEY,A72A)
€ 1.50
7
3611830500
ref: 7
SOCKET
€ 10.00
8
3517233630
ref: 8
SPRING
€ 4.00
9-1
0912705013
ref: 9-1
MODEL Z/D/K/M
SCREW(5X12)
€ 2.50
9-2
0212205127
ref: 9-2
MODEL R
SCREW
€ 2.50
10
0916905008
ref: 10
MODEL K/M/R
WASHER
€ 3.00
11
0214205087
ref: 11
MODEL K/M/R
SCREW
€ 2.00
