FRONT FORK
GN125 1991 (M) (E01 E02 E04 E21 E34)

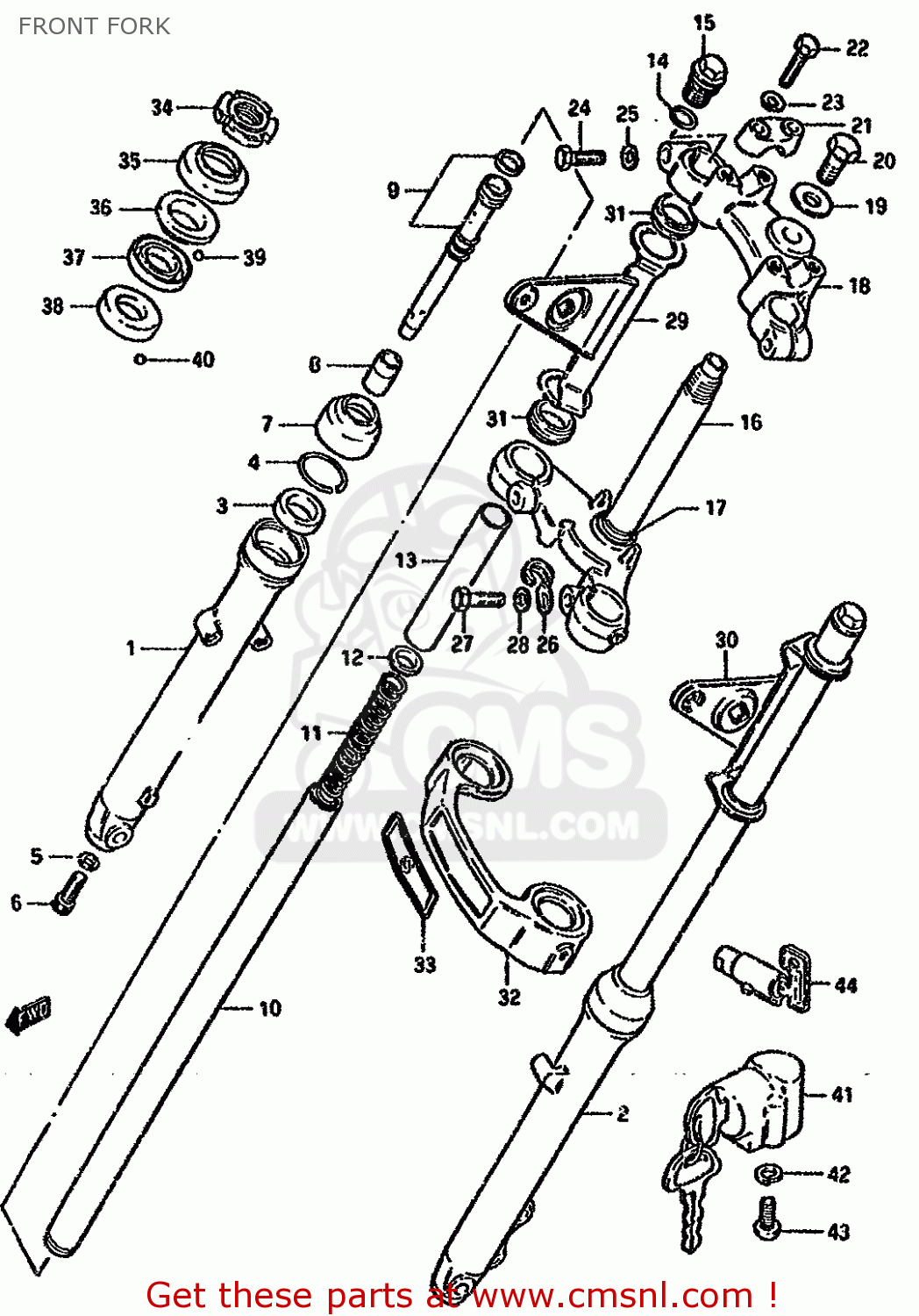

Front fork diagram GN125 1991 (M) (E01 E02 E04 E21 E34)
FRONT FORK GN125 1991 (M) (E01 E02 E04 E21 E34)
×
prices are in EUR
ref
part #
description
quantity
0
5110005300291
ref: 0
MODEL Z/D/K
FRONT FORK ASSY
€ 688.00
0
5110005301291
ref: 0
MODEL M/N/R
FORK ASSY,FR
€ 688.00
0
51100053B0291
ref: 0
E22
FRONT FORK ASSY
€ 0.00
1
5113005300
ref: 1
TUBE,OUTER,R
€ 140.50
2
5114005300
ref: 2
TUBE,OUTER,L
€ 154.50
3
5115305300
ref: 3
SEAL,OIL
€ 9.00
4
5115641603
ref: 4
RING,SNAP
€ 7.50
5
5114841310
ref: 5
GASKET (NAS)
€ 2.50
6
5114716510
ref: 6
BOLT,FORK CYLINDER(10X25)
€ 3.50
7
5117341603
ref: 7
SEAL,DUST
€ 6.00
8
5119536220
ref: 8
PIECE,OIL LOCK
€ 11.50
9
5114605300
ref: 9
CYLINDER
€ 35.00
10
5111005300
ref: 10
TUBE,INNER
€ 257.50
11
5117105300
ref: 11
SPRING
€ 24.50
12
5117218630
ref: 12
GUIDE,SPRING COVER
€ 5.50
13
5117605300
ref: 13
SPACER
€ 10.00
14-1
5118125010
ref: 14-1
MODEL Z/D/K/M
O-RING,FORK INNER TUBE
€ 2.50
14-2
5118129400
ref: 14-2
MODEL N/R
O RING
€ 2.50
15
5135141603
ref: 15
CAP
€ 11.00
16-1
5141011310
ref: 16-1
MODEL Z/D
STEM,STEERING
€ 157.50
16-2
5141011311
ref: 16-2
MODEL K/M/N/R
STEM,STEERING
€ 157.50
16-3
51410053B0
ref: 16-3
E22
STEM,STEERING
€ 142.00
17
5162133001
ref: 17
RACE,STEERING OUTER LWR
€ 10.00
18
5131111300291
ref: 18
HEAD,STEERING STEM(BLACK)
€ 128.00
19
5135622012
ref: 19
WASHER,STEM HEAD(10.5X30X3.2)
€ 4.00
20-1
5135120010
ref: 20-1
MODEL Z/D/K/M
BOLT,FORK INNER TUBE
€ 25.00
20-2
5135120011
ref: 20-2
MODEL N/R
BOLT,FORK INNER TUBE
€ 25.00
21
5621129320291
ref: 21
HOLDER,HANDLE(BLACK)
€ 12.00
22
0120408357
ref: 22
BOLT
€ 3.50
23
0832121088
ref: 23
LOCK WASHER
€ 2.00
24
5145115113
ref: 24
BOLT,FORK INNER TUBE F
€ 2.50
25
0832121107
ref: 25
WASHER,LOCK,10
€ 2.00
26
5145536010
ref: 26
CLIP
€ 6.50
27
5145128012
ref: 27
BOLT,FR FORK LWR(12X33)
€ 11.50
28
0832121128
ref: 28
WASHER,LOCK 12
€ 2.50
29
5153005300
ref: 29
BRACKET,HEADLAMP,R
€ 42.00
30
5154005300
ref: 30
BRACKET,HEADLAMP,L
€ 42.00
31
5155311300
ref: 31
CUSHION,HEADLAMP BRACKET
€ 3.50
32-1
5187105300
ref: 32-1
MODEL Z/D
COVER,FRAME HEAD
€ 28.50
32-2
5187105301
ref: 32-2
MODEL K/M/N/R
COVER,FR FORK
€ 28.50
33
6821138300
ref: 33
EMBLEM,FR FORK COVER
€ 13.50
34
5163128000
ref: 34
NUT,STEERING STEM(25X44X10)
€ 12.50
35
5164325001
ref: 35
DUST SEAL,STEERING UPR
€ 4.50
36
5162128000
ref: 36
RACE,STEERING OUTER UPR
€ 7.00
37
5161120002
ref: 37
RACE,STEERING INNER UPR
€ 5.50
38
5161133002
ref: 38
LACE,STEERING INNER LWR
€ 7.00
39
0611106003
ref: 39
BALL
€ 1.50
40
0611108003
ref: 40
BALL
€ 1.50
41
5191025311
ref: 41
LOCK ASSY,STEERING
€ 22.50
42
0832121057
ref: 42
LOCK WASHER
€ 2.00
43-1
0211205128
ref: 43-1
MODEL Z/D/K/M/N
SCREW
€ 2.50
43-2
0211235123
ref: 43-2
MODEL R
SCREW
€ 1.50
44
5190030901
ref: 44
E22
LOCK ASSY,STEERING(NEIMAN)
€ 168.50
