BATTERY

GS1000 1978 (C) GENERAL EXPORT (E01)

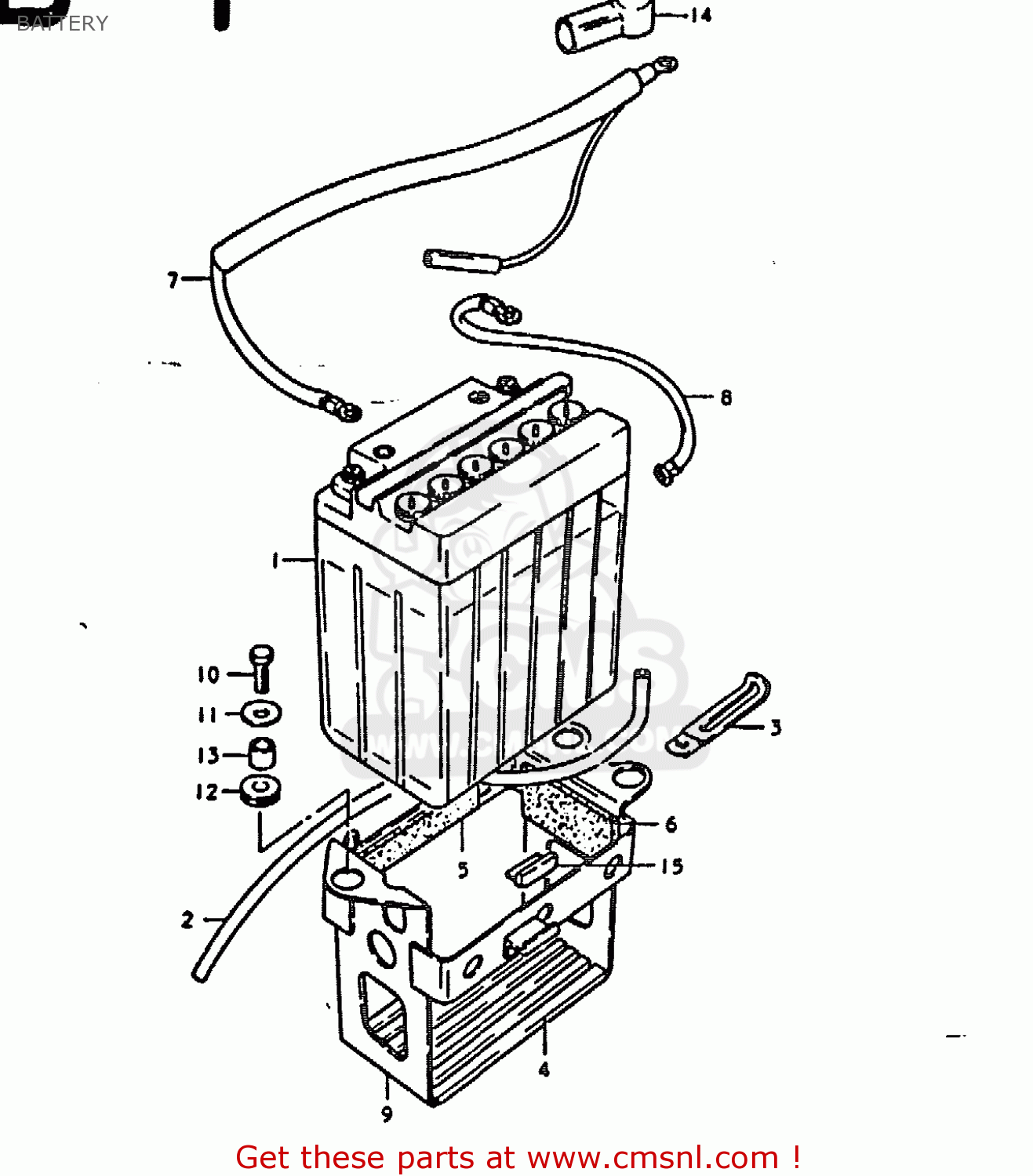

Battery diagram GS1000 1978 (C) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

3361031010
ref: 1
12V, 14AH

BATTERY ASSEMBLY

€ 110.00

3368049000
ref: 2

HOSE,BATTERY EXHAUST

€ 7.00

0940406401
ref: 3

CLAMP L:35

€ 2.50

3365131000
ref: 4

PROTECTOR,BATTERY

€ 29.00

3365229100
ref: 5

PROTECTOR,20X9

€ 5.00

3365104100
ref: 6

CUSHION,BATTERY

€ 5.00

3382049000
ref: 7

WIRE,BATTERY PLUS

€ 16.00

3385003201
ref: 8

LEAD WIRE,BATTERY(-)

€ 8.50

9-1

4154049000
ref: 9-1
TO 41540-49010

HOLDER,BATTERY

€ 0.00

0110706168
ref: 10

BOLT, UPPER

€ 3.00

0916006020
ref: 11
6.5*20*1.6

WASHER

€ 2.00

0932008007
ref: 12

CUSHION

€ 4.00

0918006038
ref: 13
6.2*8.3*5.7

SPACER(6.1X9X7.5)

€ 2.00

3362445000
ref: 14

CAP,TERMINAL

€ 5.50

4711702400
ref: 15

CUSHION,FRAME COVER

€ 2.00
