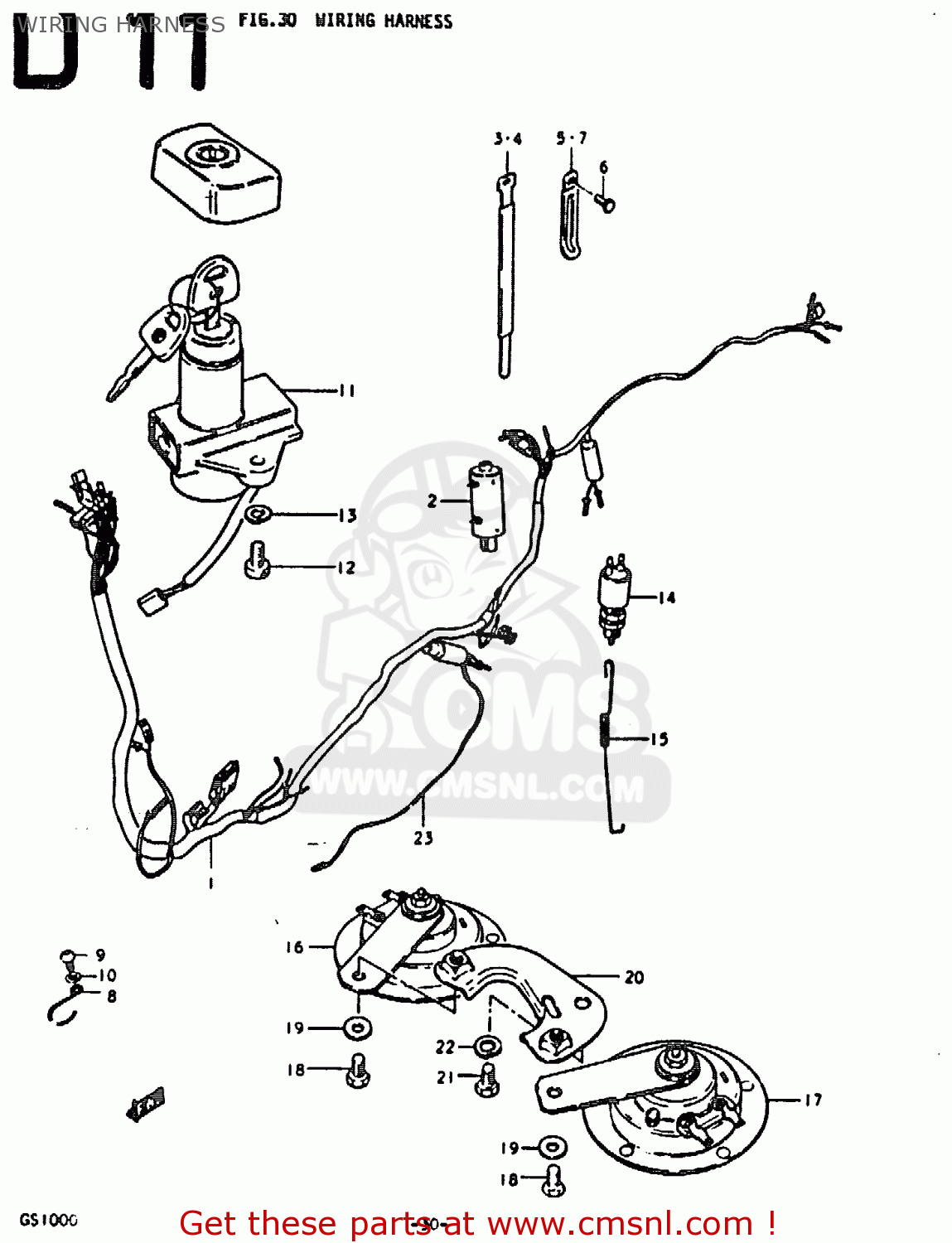

WIRING HARNESS

ref

part #

description

quantity

1-1

3661049000
ref: 1-1
TO 36610-49001

HARNESS,WIRING

€ 292.50

2

3661830610
ref: 2

BOOT,WIRING HARNESS

€ 9.50

3

0940712402
ref: 3
L:120

CLAMP(L:120)

€ 3.00

4

0940718301
ref: 4
L:180

CLAMP

€ 6.00

5

0940406414
ref: 5

CLAMP

€ 3.00

6

0110706108
ref: 6

BOLT

€ 2.00

7

0940408401
ref: 7

CLAMP

€ 3.50

8

3661944000
ref: 8

GUIDE,WIRING HARNESS

€ 2.50

9

0211206128
ref: 9

SCREW 6X12

€ 2.00

10

0832211068
ref: 10

WASHER 6MM

€ 2.00

11

3710049010
ref: 11

LOCK ASSEMBLY,STEERING

€ 132.00

12

3715247010
ref: 12

BOLT

€ 3.00

13

0832121068
ref: 13

LOCK WASHER

€ 2.50

14

3761053011
ref: 14

SWITCH ASSY,BRAKE LAMP

€ 34.50

15

0944306018
ref: 15

SPRING

€ 4.50

16

3850064130
ref: 16
LOW PITCHED

HORN ASSY

€ 77.00

17

3850149000
ref: 17
HIGH PITCHED

HORN ASSEMBLY,HIGH PITCH

€ 82.50

18

0110708128
ref: 18

BOLT 8X12

€ 2.50

19

0832211088
ref: 19

WASHER

€ 2.00

20-1

3859049000
ref: 20-1
TO 38590-49001

BRACKET,HORN

€ 3.50

21

0910008067
ref: 21
8*14

BOLT

€ 2.50

22

0832121088
ref: 22

LOCK WASHER

€ 2.00

23

3685345000
ref: 23

WIRE

€ 9.50
