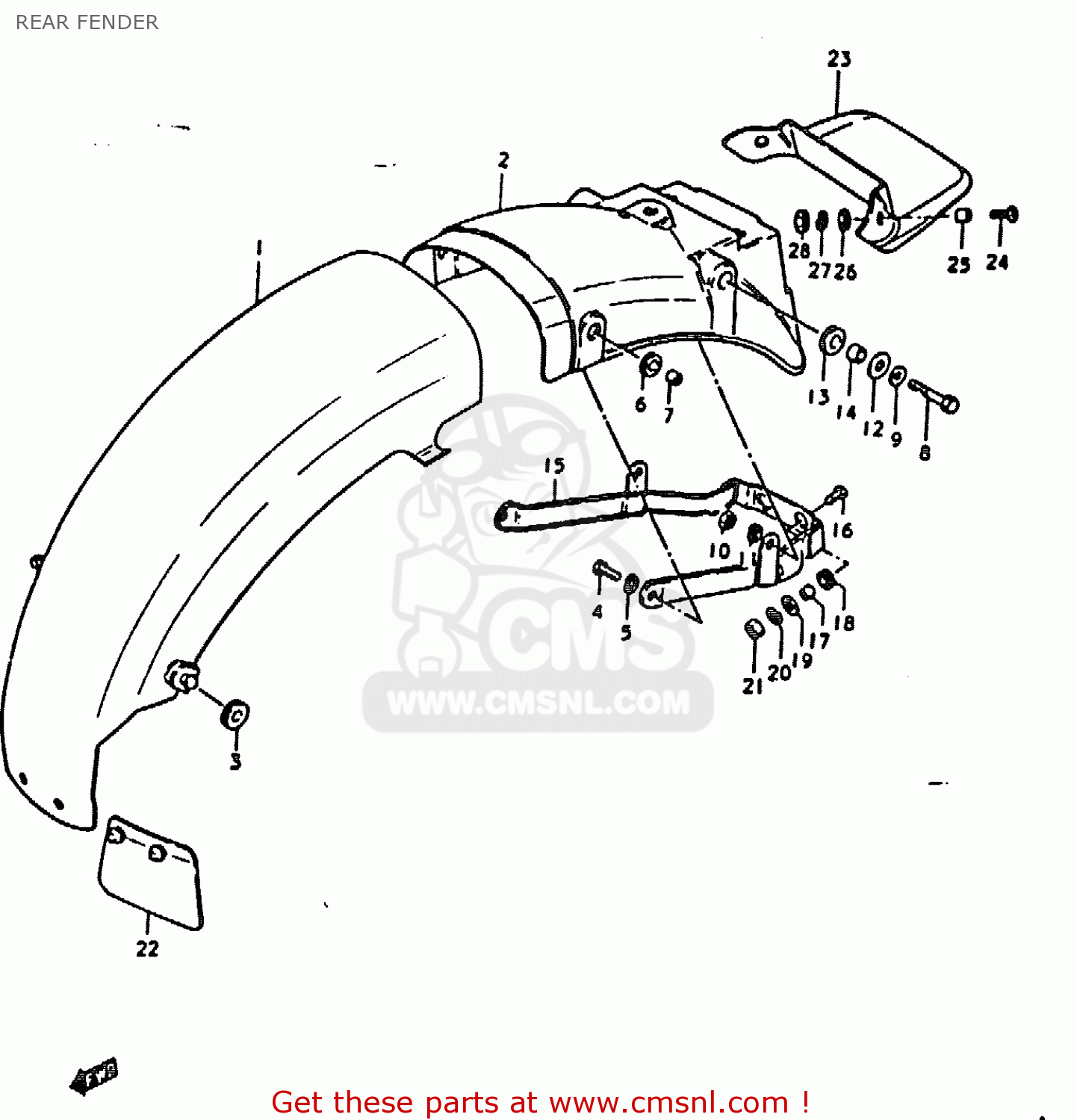

REAR FENDER

ref

part #

description

quantity

1-1

6311249000
ref: 1-1

FENDER,REAR

€ 82.50

2

6311349000291
ref: 2

BODY,RR FENDER RR

€ 80.50

3

0932008013
ref: 3

CUSHION

€ 4.00

4

0110706208
ref: 4

BOLT

€ 2.00

5

0832121068
ref: 5

LOCK WASHER

€ 2.50

6

0932008007
ref: 6

CUSHION

€ 4.00

7

0918006038
ref: 7
6.1*9*7.5

SPACER(6.1X9X7.5)

€ 2.00

8

0120408457
ref: 8

BOLT

€ 2.00

9

0832221068
ref: 9

WASHER

€ 2.00

10

0831012088
ref: 10

NUT

€ 2.00

11

0832121088
ref: 11

LOCK WASHER

€ 2.00

12

0916008032
ref: 12
8.5*26*1.2

WASHER(8.5X26X1.2)

€ 3.50

13

0932012011
ref: 13

CUSHION

€ 3.00

14

0918008021
ref: 14
8.2*11.8*7.5

SPACER (8.2X12X7.5)

€ 3.00

15

6312049000
ref: 15

REINFORCEMENT,REAR FENDER

€ 28.50

16

0214206207
ref: 16

SCREW

€ 2.00

17

0918006011
ref: 17
6.1*9*9

SPACER (6.1X9X9)

€ 2.00

18

0932008013
ref: 18

CUSHION

€ 4.00

19

0916006012
ref: 19
6.5*22*1.6

WASHER(6,5X22X1.6)

€ 2.00

20

0832121068
ref: 20

LOCK WASHER

€ 2.50

21

0831011068
ref: 21

NUT

€ 2.50

22

6341131900
ref: 22

GUIDE,RR FENDER MUD

€ 8.00

23

6331149030
ref: 23
OPT

EXTENSION,REAR FENDER

€ 38.50

24

0912506009
ref: 24
OPT

SCREW (6X15)

€ 3.00

25

0918006001
ref: 25
OPT 6.2*8.3*5.7

SPACER(6.2X8.3X5.7)

€ 2.00

26

0916006028
ref: 26
OPT 6.5*18*1

WASHER(6.5X18X1)

€ 1.50

27

0832121068
ref: 27
OPT

LOCK WASHER

€ 2.50

28

0831011068
ref: 28
OPT

NUT

€ 2.50
