SPEEDOMETER - TACHOMETER

GS1000 1978 (C) GENERAL EXPORT (E01)

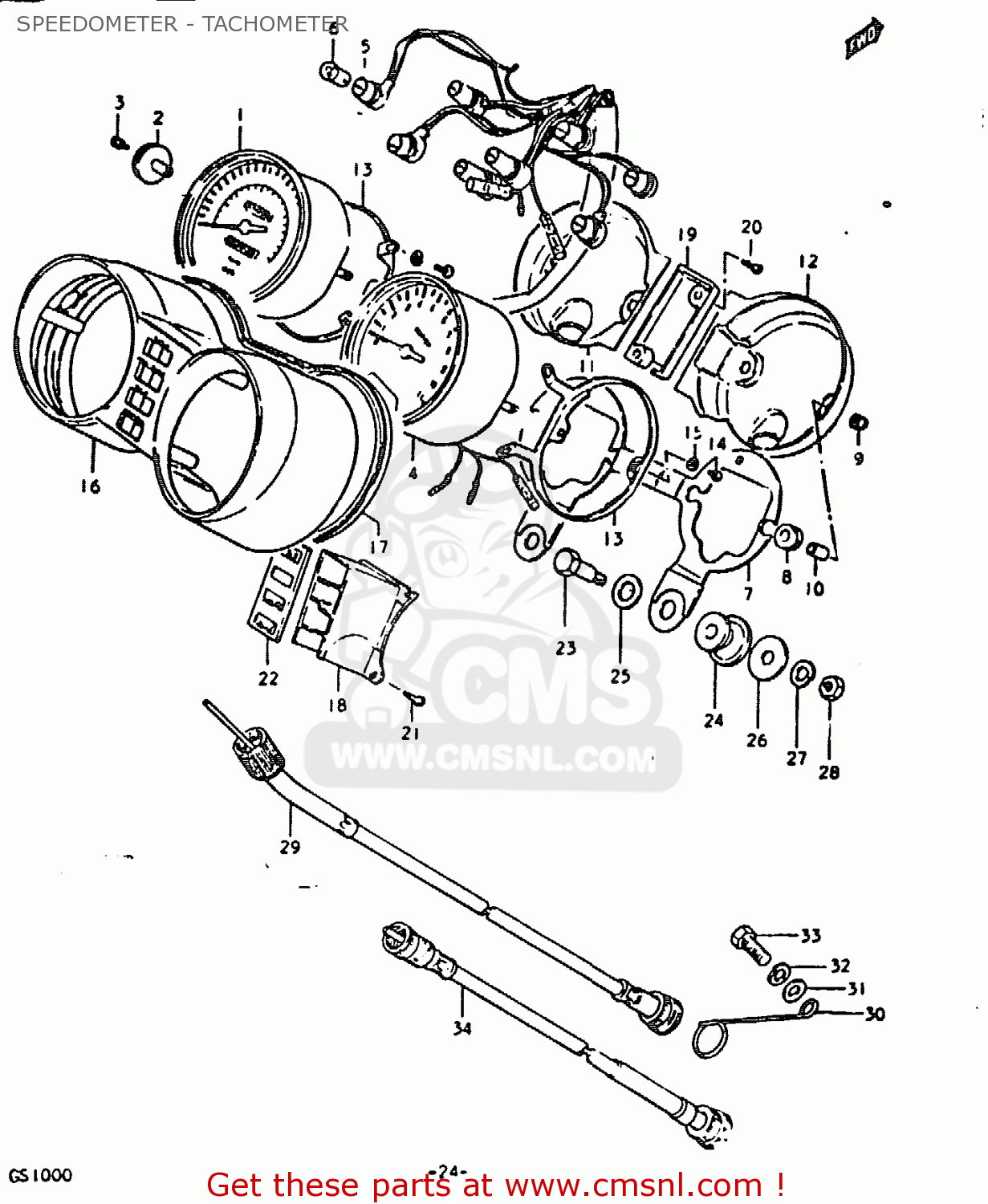

Speedometer - tachometer diagram GS1000 1978 (C) GENERAL EXPORT (E01)

SPEEDOMETER - TACHOMETER GS1000 1978 (C) GENERAL EXPORT (E01)
SPEEDOMETER - TACHOMETER GS1000 1978 (C) GENERAL EXPORT (E01)
SPEEDOMETER - TACHOMETER GS1000 1978 (C) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
0
3410049060
ref: 0
MILE & KILO SCALE TO
SPEEDOMETER ASSEMBLY
€ 267.00
0
3410049010
ref: 0
KILO SCALE
SPEEDO & TACHOMETER ASSY
€ 0.00
1-1
3411049060
ref: 1-1
MILE & KILO SCALE TO
SPEEDOMETER ASSEMBLY
€ 225.50
1-4
3411049010
ref: 1-4
KILO SCALE
SPEEDOMETER
€ 433.50
2
3412449000
ref: 2
KNOB,TRIP METER
3412449000
€ 5.50
3
3412549000
ref: 3
SCREW
3412549000
€ 1.50
4
3421049060
ref: 4
TACHOMETER
€ 361.50
5
3417349000
ref: 5
SOCKET,SPEEDOMETER
3417349000
€ 110.00
6
0947112001
ref: 6
12V, 3.4W
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
7
3495049000
ref: 7
BRACKET,COMBINATION METER
3495049000
€ 35.00
8
3418949000
ref: 8
CUSHION,SPEEDOMETER
3418949000
€ 6.50
9
3418549000
ref: 9
NUT
€ 1.50
10
3418749000
ref: 10
SPACER,SPEEDOMETER
3418749000
€ 2.50
11
3419349000
ref: 11
COVER,METER,UNDER
3419349000
€ 49.50
12
3429349000
ref: 12
PLATE,TACHOMETER UNDER
3429349000
€ 36.50
13
3419549000
ref: 13
HOLDER,METER
3419549000
€ 17.50
14
0211203088
ref: 14
SCREW
€ 1.50
15
0832121038
ref: 15
LOCK WASHER
€ 1.50
16
3415149000
ref: 16
CASE,METER
3415149000
€ 71.50
17
3415649000
ref: 17
CUSHION,METER CASE
3415649000
€ 7.00
18
3638249000
ref: 18
CASE,PILOT BULB
3638249000
€ 12.50
19
3638349000
ref: 19
PLATE,PILOT BULB CASE
3638349000
€ 17.50
20
3649249000
ref: 20
SCREW,PILOT CASE
€ 1.50
21
3418349000
ref: 21
SCREW,SPEEDOMETER
€ 2.50
22
3630049810
ref: 22
LENS SET,PILOT LAMP
€ 22.00
23
0911108031
ref: 23
BOLT(8X31)
0911108031
€ 4.00
24
3495631000
ref: 24
CUSHION,METER
3495631000
€ 4.50
25
0916010051
ref: 25
10.5*22*1.6
WASHER
0916010051
€ 2.00
26
0916008002
ref: 26
8.5*29*1.6
WASHER (8.5X29X1.6)
0916008002
€ 2.00
27
0832121088
ref: 27
LOCK WASHER
0832121088
€ 2.00
28
0831012088
ref: 28
NUT
0831012088
€ 2.00
29
3491049010
ref: 29
CABLE ASSEMBLY,SPEEDOMETER
3491049010
€ 25.00
30
3493837000
ref: 30
GUIDE,SPEEDOMETER CABLE
3493837000
€ 14.50
31
0832211068
ref: 31
WASHER 6MM
€ 2.00
32
0832121068
ref: 32
LOCK WASHER
0832121068
€ 2.50
33
0110706168
ref: 33
BOLT, UPPER
€ 3.00
34-1
3494049011
ref: 34-1
CABLE ASSEMBLY,TACHOMETER
3494049011
€ 36.50
