REAR WHEEL (GS1000C, N)

GS1000 1978 (C) GENERAL EXPORT (E01)

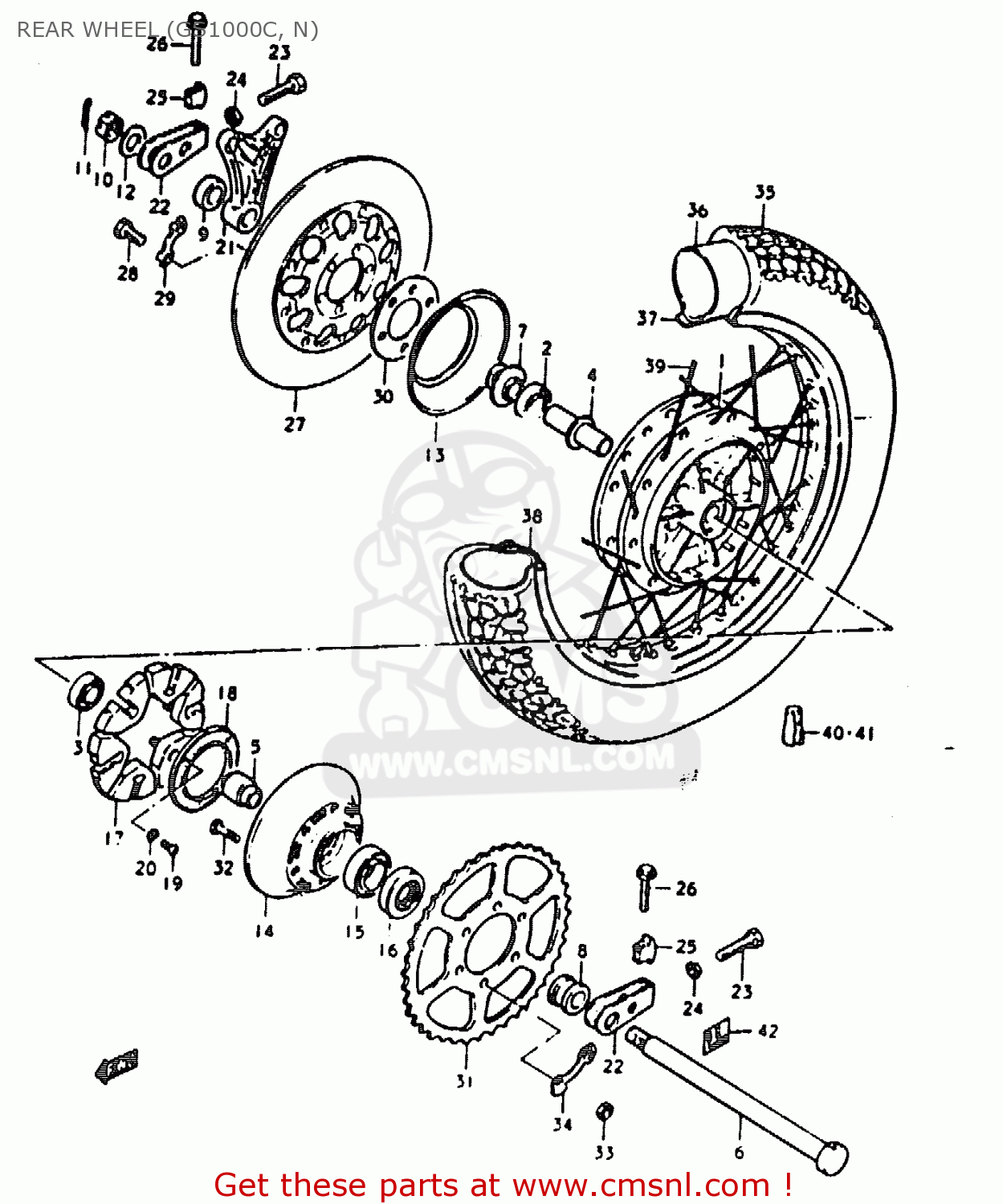

Rear wheel (gs1000c, n) diagram GS1000 1978 (C) GENERAL EXPORT (E01)

REAR WHEEL (GS1000C, N) GS1000 1978 (C) GENERAL EXPORT (E01)
REAR WHEEL (GS1000C, N) GS1000 1978 (C) GENERAL EXPORT (E01)
REAR WHEEL (GS1000C, N) GS1000 1978 (C) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
6411045001
ref: 1
DRUM,REAR HUB
€ 520.00
2-1
0812362040
ref: 2-1
BEARING
€ 17.00
3-1
0814362040
ref: 3-1
BEARING, LH
€ 21.00
4
6473045000
ref: 4
SPACER,REAR HUB BEARING
6473045000
€ 15.50
5
6473331000
ref: 5
SPACER,REAR HUB BEARING
6473331000
€ 20.00
6
6471149000
ref: 6
AXLE,REAR
€ 59.00
7
6474049000
ref: 7
SPACER,REAR AXLE,RIGHT
€ 0.00
8
0918020054
ref: 8
20*33*28.3
SPACER(20X33X28.3)
0918020054
€ 13.00
9
0918020060
ref: 9
20*38*12
SPACER(20X38X12)
0918020060
€ 6.50
10
0831431188
ref: 10
NUT 18MM
0831431188
€ 5.00
11
0411140308
ref: 11
PIN,COTTER
0411140308
€ 1.50
12
0916019008
ref: 12
19*34*4
WASHER(19X34X4)
0916019008
€ 3.00
13
6417145000
ref: 13
COVER,REAR WHEEL HUB
6417145000
€ 10.00
14
6461131000
ref: 14
DRUM,REAR SPROCKET MOUNT
€ 140.00
15-1
0811363054
ref: 15-1
BEARING
€ 21.50
16
0928533001
ref: 16
SEAL,OIL(33X62X7)
0928533001
€ 20.00
17
6465131000
ref: 17
ABSORBER,REAR HUB SHOCK
6465131000
€ 9.50
18
6467145000
ref: 18
PLATE,REAR HUB SHOCK ABSORBER
€ 11.00
19
0211205108
ref: 19
SCREW
0211205108
€ 2.00
20
0832121058
ref: 20
LOCK WASHER
0832121058
€ 2.00
21-1
6972147010
ref: 21-1
BRACKET,REAR CALIPER
€ 29.00
22
6141031000
ref: 22
ADJUSTER,CHAIN
6141031000
€ 50.00
23
0910408006
ref: 23
BOLT
0910408006
€ 3.00
24
0831012088
ref: 24
NUT
0831012088
€ 2.00
25
6143331000
ref: 25
SUPPORTER,CHAIN ADJUST
6143331000
€ 22.50
26
0151708408
ref: 26
BOLT (8X40)
€ 3.50
27
5921018401
ref: 27
DISC,BRAKE
€ 208.50
28
0910008147
ref: 28
8*40
BOLT 8X40
€ 2.50
29
0916908016
ref: 29
WASHER
0916908016
€ 3.50
30
5921449000
ref: 30
SHIM,BRAKE DISC
€ 0.00
31
6451149000
ref: 31
NT:42
SPROCKET,REAR
€ 114.00
32
0911910002
ref: 32
BOLT
0911910002
€ 3.50
33
0831012108
ref: 33
NUT
0831012108
€ 2.50
34
0916910007
ref: 34
WASHER
0916910007
€ 7.50
35
6510049010
ref: 35
4.50V17
TIRE
€ 258.00
36
6520049010
ref: 36
4.50-17
TUBE ASSEMBLY,WHEEL,INNER
€ 43.50
37
6526149010
ref: 37
PROTECTOR,INNER TUBE
€ 2.00
38
6531149010
ref: 38
N17*MT2.50
RIM (N17X7T2.50)
€ 0.00
39
6530049820
ref: 39
SPOKE SET
€ 0.00
40
5541111000
ref: 40
20G
BALANCER,WHEEL (B)
€ 4.50
41
5541211000
ref: 41
30G
BALANCER,WHEEL (30G)
5541211000
€ 8.00
42
6837749000
ref: 42
LABEL,CHAIN WEAR INDICATOR
6837749000
€ 3.50
