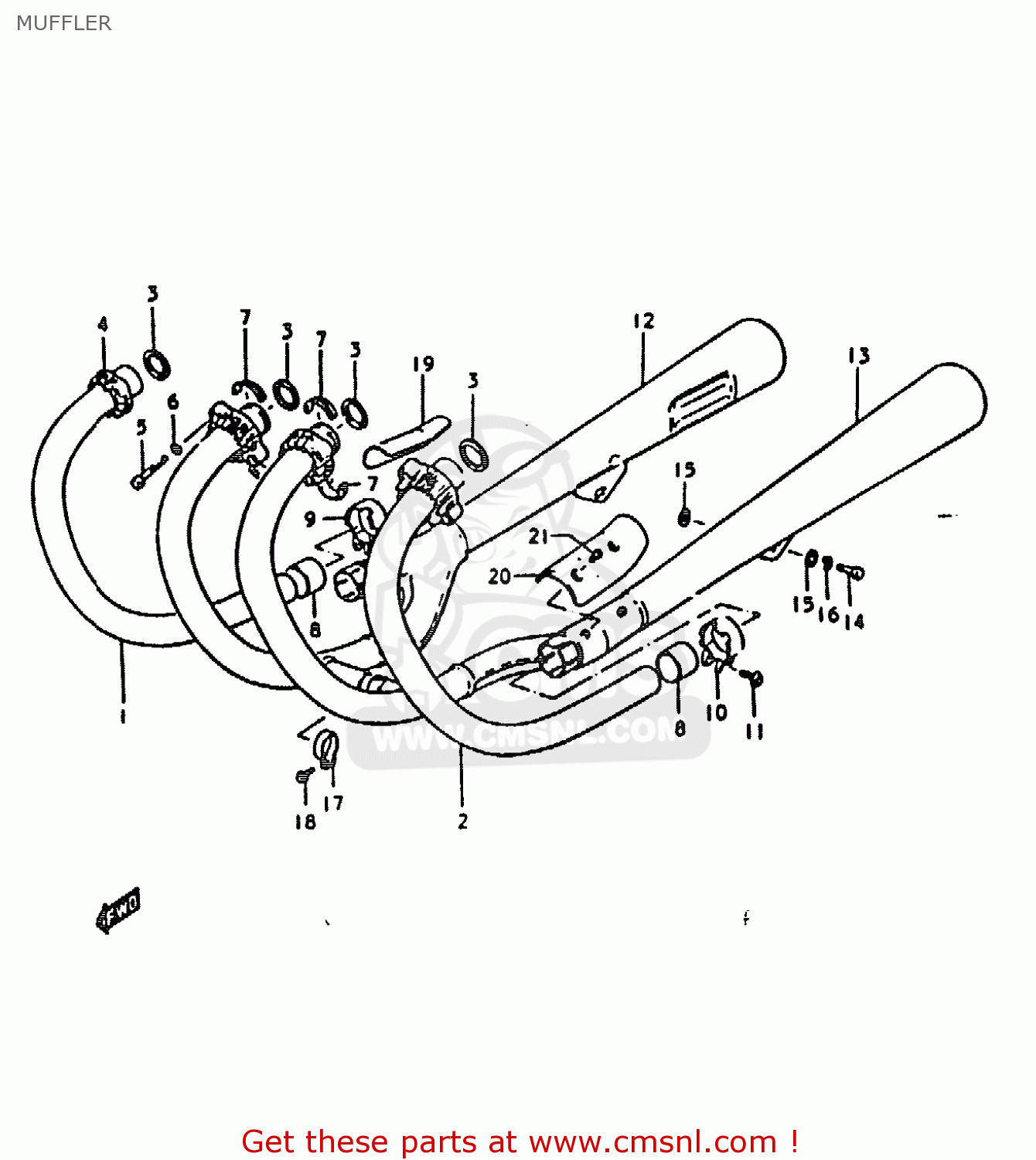

MUFFLER

ref

part #

description

quantity

1

1415049000
ref: 1

PIPE,EXHAUST,R

€ 154.50

2

1416049000
ref: 2

PIPE,EXHAUST,L

€ 150.00

3

1418111010
ref: 3

GASKET,EXHAUST PIPE (NAS)

€ 8.00

4

1418249000
ref: 4

CLAMP,EXHAUST PIPE

€ 94.50

5

0110708358
ref: 5

BOLT

€ 3.50

6

0832121088
ref: 6

LOCK WASHER

€ 2.00

7

1415549000A
ref: 7

PLATE,EXHAUST P

€ 9.50

8

1477149000
ref: 8

CONNECTOR,MUFFLER

€ 26.00

9

1445949000
ref: 9

CLAMP,MUFFLER CONNECTOR,R

€ 25.50

10

1446949000
ref: 10

CLAMP,MUFFLER CONNECTOR,L

€ 25.50

11

0151708258
ref: 11

BOLT

€ 2.50

12-1

1431049000
ref: 12-1
TO 14310-49001

BODY,MUFFLER

€ 546.00

13-1

1434049000
ref: 13-1
TO 14340-49001

BODY,MUFFLER

€ 546.00

14

0110710308
ref: 14

BOLT 10X30

€ 3.00

15

0832221108
ref: 15
8.5*20*1.6

WASHER

€ 2.50

16

0832121108
ref: 16

LOCK WASHER

€ 2.00

17

0940237601
ref: 17

CLAMP

€ 5.50

18

0151706258
ref: 18

BOLT

€ 2.50

19

1478149000
ref: 19

COVER,MUFFLER

€ 56.50

20

1479149000
ref: 20

COVER,MUFFLER,LEFT

€ 16.00

21

0211205068
ref: 21

SCREW

€ 4.00
