OIL PUMP

GS1000 1978 (C) GENERAL EXPORT (E01)

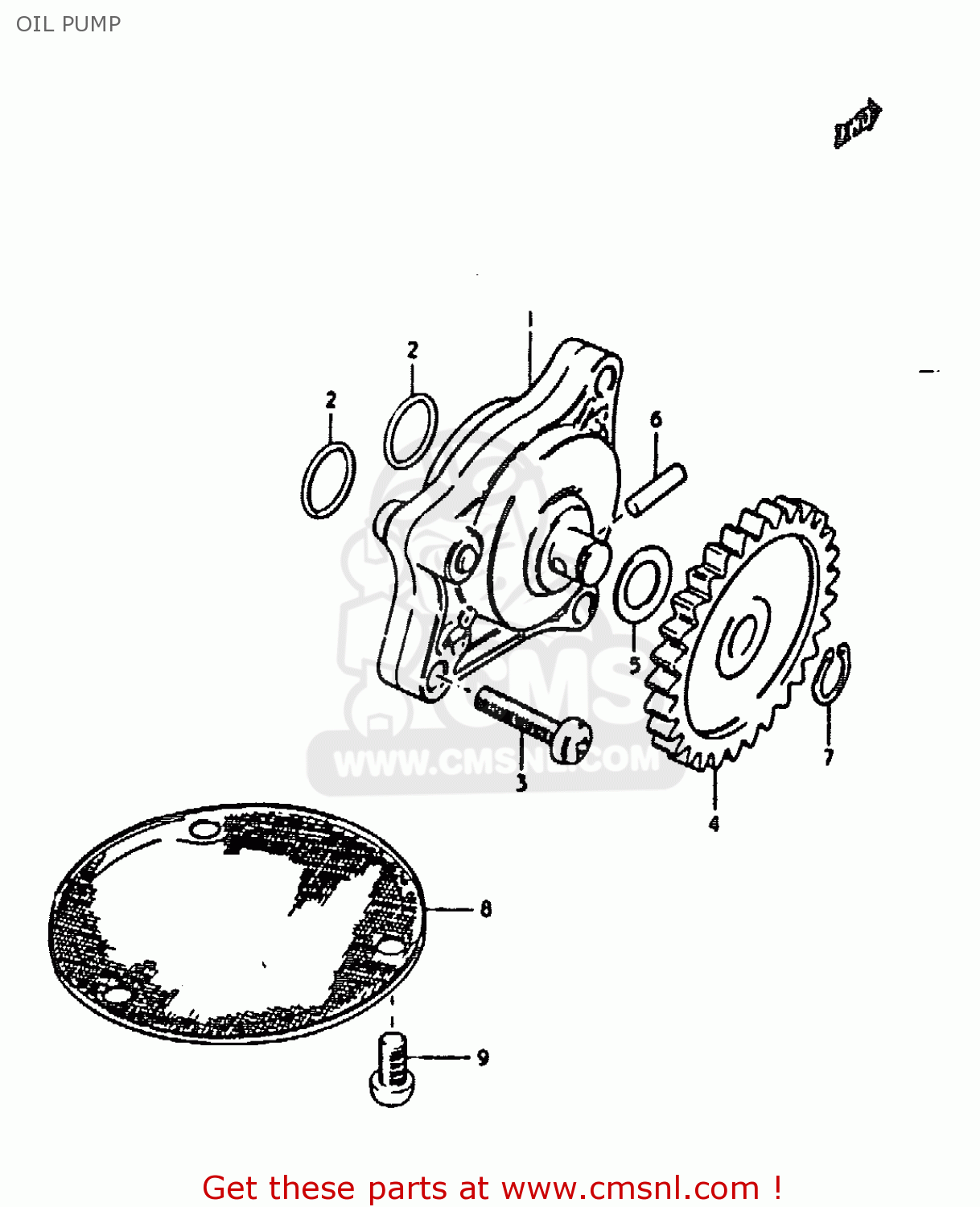

Oil pump diagram GS1000 1978 (C) GENERAL EXPORT (E01)

OIL PUMP GS1000 1978 (C) GENERAL EXPORT (E01)

OIL PUMP GS1000 1978 (C) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1640049011
ref: 1

PUMP ASSEMBLY,OIL

€ 134.00

2

0928013004
ref: 2

O RING(D:1.9,ID:13)

€ 2.50

3

0211206258
ref: 3

SCREW

€ 2.00

4-1

1633149000
ref: 4-1
NT:33 TO 16331-49990

GEAR,ENG OIL PUMP DRIVEN(NT:33

€ 84.50

5

0822110185
ref: 5

SHIM

€ 2.00

6

0926104009
ref: 6

PIN(4X15.8)

€ 1.50

7

0833131109
ref: 7

CIRCLIP

€ 2.00

8

1652045000
ref: 8

STRAINER,ENGINE OIL

€ 12.00

9

0211206128
ref: 9

SCREW 6X12

€ 2.00
