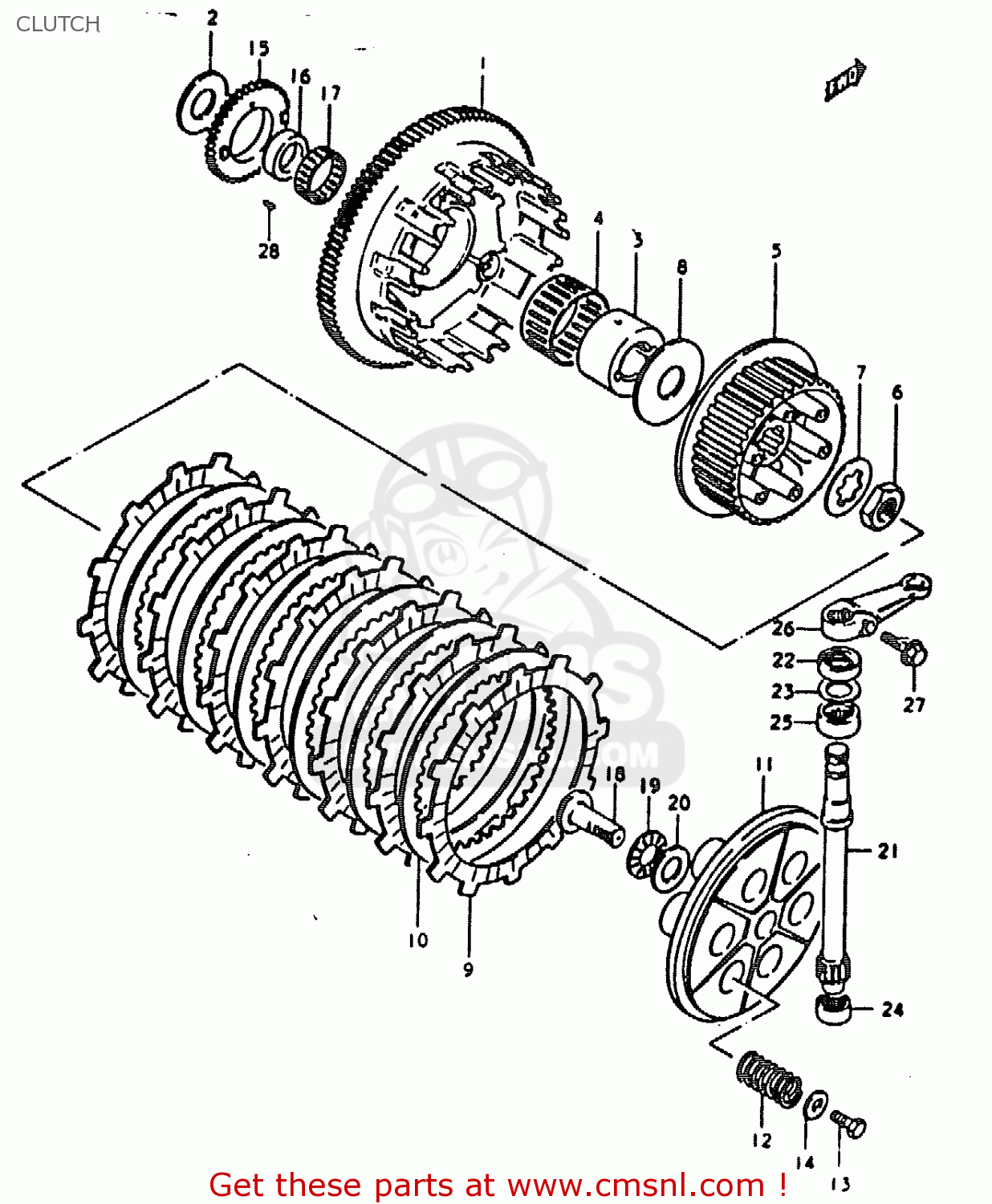

CLUTCH

ref

part #

description

quantity

1-1

2120049001
ref: 1-1
NT:87 TO 21200-49002

GEAR ASSEMBLY,PRIMARY DRIVE

€ 409.50

2

0916025023
ref: 2
25*50*2.5

WASHER

€ 9.50

3

2125145001
ref: 3

SPACER,PRIMARY DRIVEN

€ 65.50

4

0926351001
ref: 4

BEARING

€ 37.00

5

2141149001
ref: 5

HUB,CLUTCH SLEEVE

€ 202.50

6

0914024004
ref: 6

NUT

€ 4.50

7

0916725007
ref: 7

WASHER,LOCK

€ 7.50

8

0916025022
ref: 8
25*66*3.5

WASHER(25X66X3.5)

€ 13.50

9-1

2144149000
ref: 9-1
TO 21441-49001

PLATE,CLUTCH DRIVE (MCA)

€ 22.00

10

2145149000
ref: 10

PLATE,CLUTCH DRIVEN (NAS)

€ 7.00

11

2146249000
ref: 11

DISC,CLUTCH PRESSURE

€ 100.00

12

0944019007
ref: 12

SPRING

€ 3.00

13

0110706168
ref: 13

BOLT, UPPER

€ 3.00

14

0916006020
ref: 14
15.5*24*2.3

WASHER

€ 2.00

15-1

1632149000
ref: 15-1
NT:34 TO 16321-49990

GEAR,ENG OIL PUMP DRIVE(NT:34)

€ 78.50

16

1632545001
ref: 16

SPACER,OIL PUMP DRIVE GEAR

€ 13.50

17

0926336002
ref: 17

BEARING(36X40X10)

€ 24.50

18

2316549000
ref: 18

RACK,CLUTCH RELEASE

€ 15.00

19

0926315003
ref: 19

BEARING(15X28X2)

€ 7.00

20

0916015015
ref: 20
15*28*1

WASHER

€ 4.00

21

2326149001
ref: 21

PINION,CLUTCH RELEASE

€ 28.00

22

0928512002
ref: 22

OIL SEAL

€ 7.00

23

0916014003
ref: 23
14.2*22*1

WASHER (14.2X22X1)

€ 1.00

24

0926312014
ref: 24

BEARING(12X19X12)

€ 11.00

25

0926315012
ref: 25

BEARING(15X22X12)

€ 11.50

26-1

2327149000
ref: 26-1
TO 23271-49001

ARM,CLUTCH RELEASE

€ 31.50

27

0152706207
ref: 27

BOLT

€ 2.50

28

2121549000
ref: 28

CUSHION,PRIMARY DRIVEN GEAR

€ 3.00
