AIR CLEANER

GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

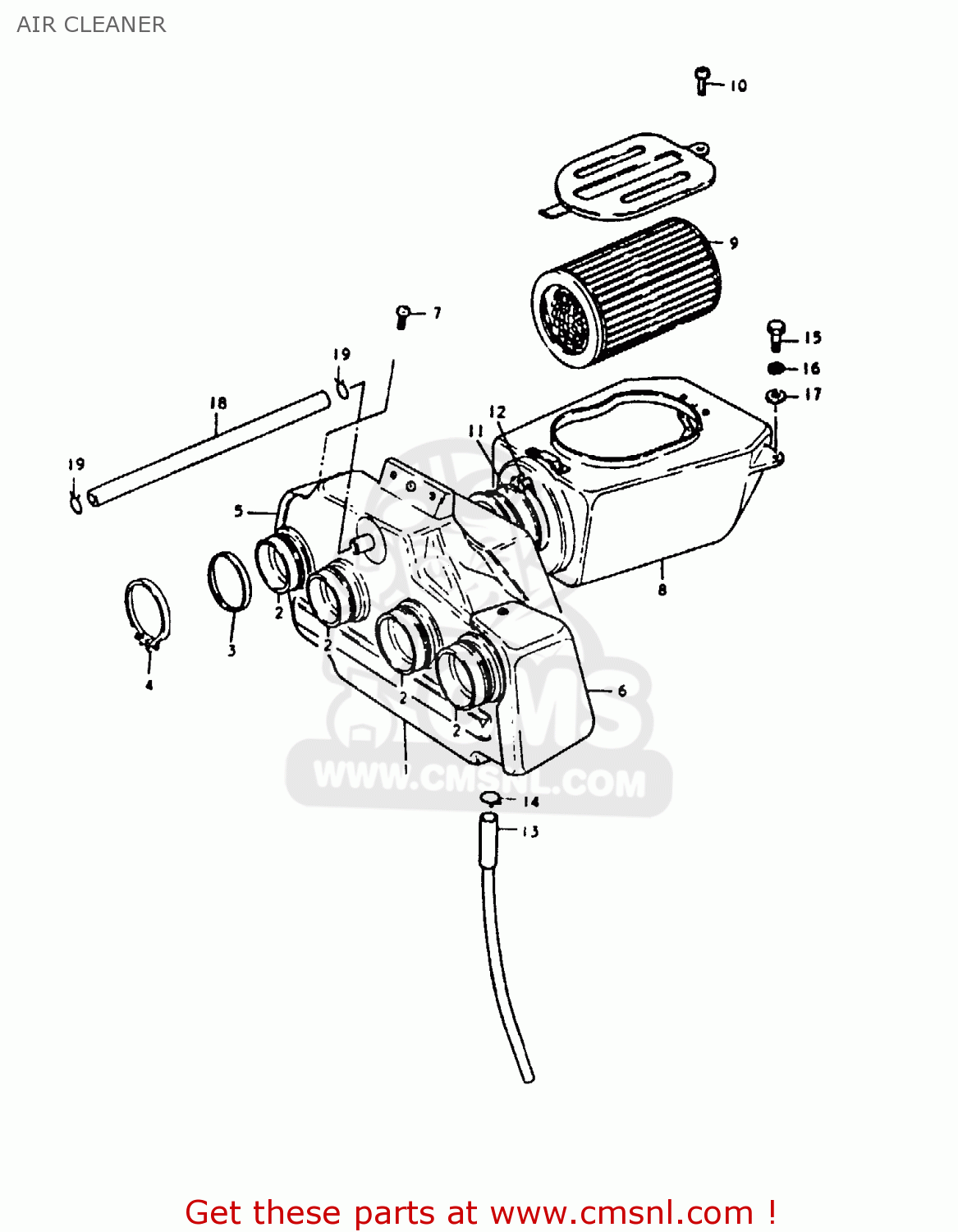

Air cleaner diagram GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

AIR CLEANER GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

AIR CLEANER GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

prices are in EUR

ref

part #

description

quantity

1

1371049020
ref: 1

CASE,AIR CLEANER,FRONT

€ 97.50

2

1388149020
ref: 2

TUBE,AIR CLEANER OUTLET

€ 16.00

3

1388549000
ref: 3

RING,CARBURETOR AIR IN

€ 8.00

4

0940262206
ref: 4

CLAMP

€ 6.00

5

1383149020
ref: 5

COVER,CASE,RIGHT

€ 30.50

6

1383249020
ref: 6

COVER,CASE,LEFT

€ 25.00

7

0321104108
ref: 7

SCREW

€ 2.00

8

1370149001
ref: 8
FROM 13700-49820

CASE ASSEMBLY,AIR CLEANER

€ 187.00

9

1378049000
ref: 9

FILTER,AIR CLEANER

€ 41.00

10

0211205108
ref: 10

SCREW

€ 2.00

11

1379549000
ref: 11

HOSE,AIR CLEANER

€ 34.50

12

1379649000
ref: 12

BAND

€ 6.00

13

1387000020
ref: 13

DRAIN TUBE

€ 13.50

14

0940114301
ref: 14

CLIP

€ 2.00

15

0110706168
ref: 15

BOLT, UPPER

€ 3.00

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

0832221068
ref: 17

WASHER

€ 2.00

18

0934311001
ref: 18

HOSE

€ 30.00

19

0940114301
ref: 19

CLIP

€ 2.00
