REAR WHEEL (GS1000ET, GS1000HT)

GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

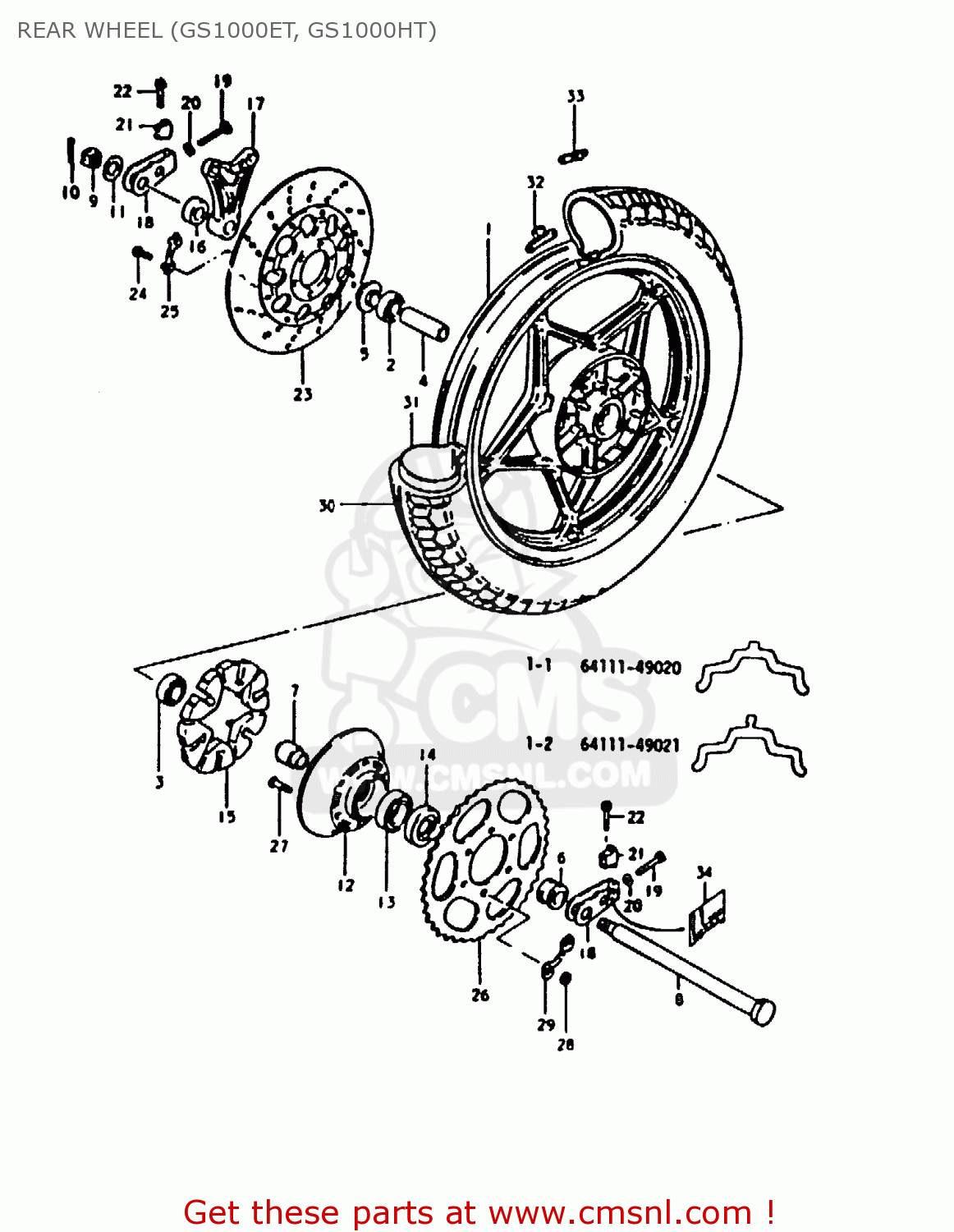

Rear wheel (gs1000et, gs1000ht) diagram GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

REAR WHEEL (GS1000ET, GS1000HT) GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39
REAR WHEEL (GS1000ET, GS1000HT) GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39
REAR WHEEL (GS1000ET, GS1000HT) GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39
prices are in EUR
ref
part #
description
quantity
1-1
6411149020
ref: 1-1
TO 64111-49021
WHEEL,REAR
€ 627.00
1-2
6411149021
ref: 1-2
WHEEL,REAR
€ 627.00
2
0813362047
ref: 2
BEARING WHEEL REAR(20X47X14)
0813362047
€ 22.50
3
0815362047
ref: 3
BEARING, LH
0815362047
€ 21.00
4
0918020062
ref: 4
SPACER(20.5X28X88)
0918020062
€ 11.50
5
6474045001
ref: 5
SPACER,REAR AXLE
€ 15.00
6
0918020054
ref: 6
SPACER(20X33X28.3)
0918020054
€ 13.00
7
6473331000
ref: 7
SPACER,REAR HUB BEARING
6473331000
€ 20.00
8
6471149000
ref: 8
AXLE,REAR
€ 59.00
9-1
0831431188
ref: 9-1
NUT 18MM
0831431188
€ 5.00
9-2
NOTUSED
ref: 9-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10
0411140308
ref: 10
PIN,COTTER
0411140308
€ 1.50
11
0916019008
ref: 11
WASHER(19X34X4)
0916019008
€ 3.00
12
6461131001
ref: 12
FROM 64611-31000
DRUM,REAR SPROCKET MOUNT
€ 140.00
13
0811363050
ref: 13
BEARING
0811363050
€ 21.50
14
0928533001
ref: 14
SEAL,OIL(33X62X7)
0928533001
€ 20.00
15
6465131000
ref: 15
ABSORBER,REAR HUB SHOCK
6465131000
€ 9.50
16
0918020060
ref: 16
SPACER(20X38X12)
0918020060
€ 6.50
17
6972147011
ref: 17
BRACKET,RR,CALIPER
6972147011
€ 29.00
18
6141031001
ref: 18
FROM 61410-31000
ADJUSTER,CHAIN
6141031001
€ 50.00
19
0910408006
ref: 19
BOLT
0910408006
€ 3.00
20
0831012088
ref: 20
NUT
0831012088
€ 2.00
21
6143331000
ref: 21
SUPPORTER,CHAIN ADJUST
6143331000
€ 22.50
22
0151708408
ref: 22
BOLT (8X40)
€ 3.50
23
5921018450
ref: 23
DISC,RR BRAKE
5921018450
€ 446.00
24
0910008094
ref: 24
BOLT(8X30)
0910008094
€ 2.50
25
0916908016
ref: 25
WASHER
0916908016
€ 3.50
26
6451149001
ref: 26
SPROCKET,REAR
6451149001
€ 114.00
27
0911910002
ref: 27
BOLT
0911910002
€ 3.50
28
0831012108
ref: 28
NUT
0831012108
€ 2.50
29
0916910007
ref: 29
WASHER
0916910007
€ 7.50
30-1
6510049010
ref: 30-1
IRC
TIRE
€ 258.00
30-2
NOTUSED
ref: 30-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
31
6520049010
ref: 31
TUBE ASSEMBLY,WHEEL,INNER
€ 43.50
32-1
5541147001
ref: 32-1
(0~3) FOR 64111-4902
BALANCER,WHEEL
5541147001
€ 4.00
32-2
5541247001
ref: 32-2
(0~3) FOR 64111-4902
BALANCER,WHEEL
5541247001
€ 3.50
33-1
5541145100
ref: 33-1
(0~3) FOR 64111-4902
BALANCER,WHEEL
5541145100
€ 7.00
33-2
5541245100
ref: 33-2
(0~3) FOR 64111-4902
BALANCER,WHEEL
5541245100
€ 4.00
34
6837749000
ref: 34
LABEL,CHAIN WEAR INDICATOR
6837749000
€ 3.50
