SIGNAL GENERATOR

GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

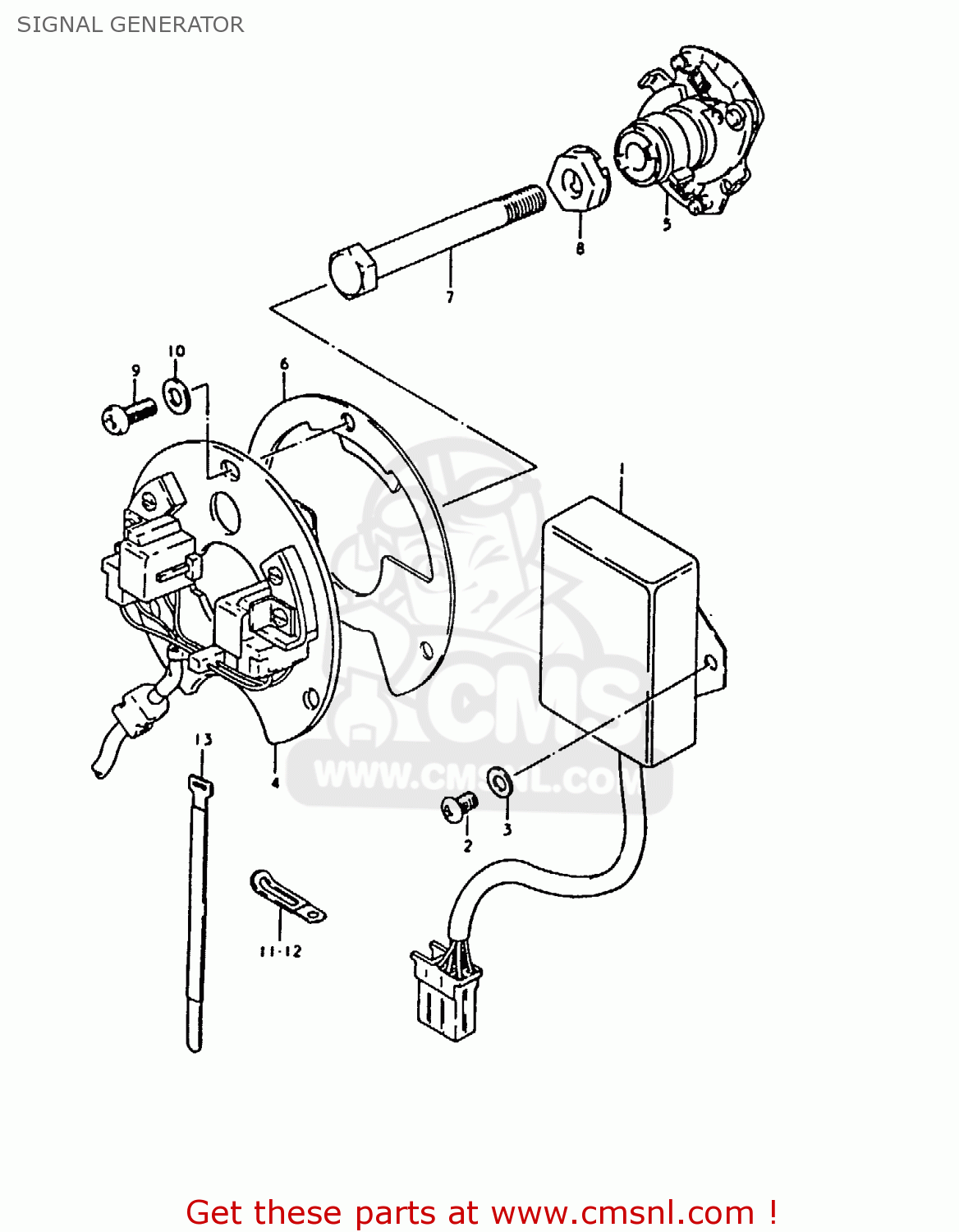

Signal generator diagram GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

prices are in EUR

ref

part #

description

quantity

3290045110
ref: 1

IGNITER UNIT

€ 492.50

0211206108
ref: 2

SCREW

€ 1.50

0832221068
ref: 3

WASHER

€ 2.00

3311045110
ref: 4

SIGNAL GENERATOR ASSEMBLY

€ 296.50

3312045110
ref: 5

GOVERNOR ASSEMBLY

€ 155.50

3337145100
ref: 6

PLATE,TIMING

€ 10.50

0110708658
ref: 7

BOLT

€ 3.00

3346547000
ref: 8

WASHER

€ 19.00

0912505024
ref: 9

SCREW(5X12)

€ 2.00

0916005027
ref: 10

WASHER

€ 2.50

0940406401
ref: 11

CLAMP L:35

€ 2.50

0940408401
ref: 12

CLAMP

€ 3.50

0940718301
ref: 13

CLAMP

€ 6.00
