CYLINDER HEAD COVER

GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

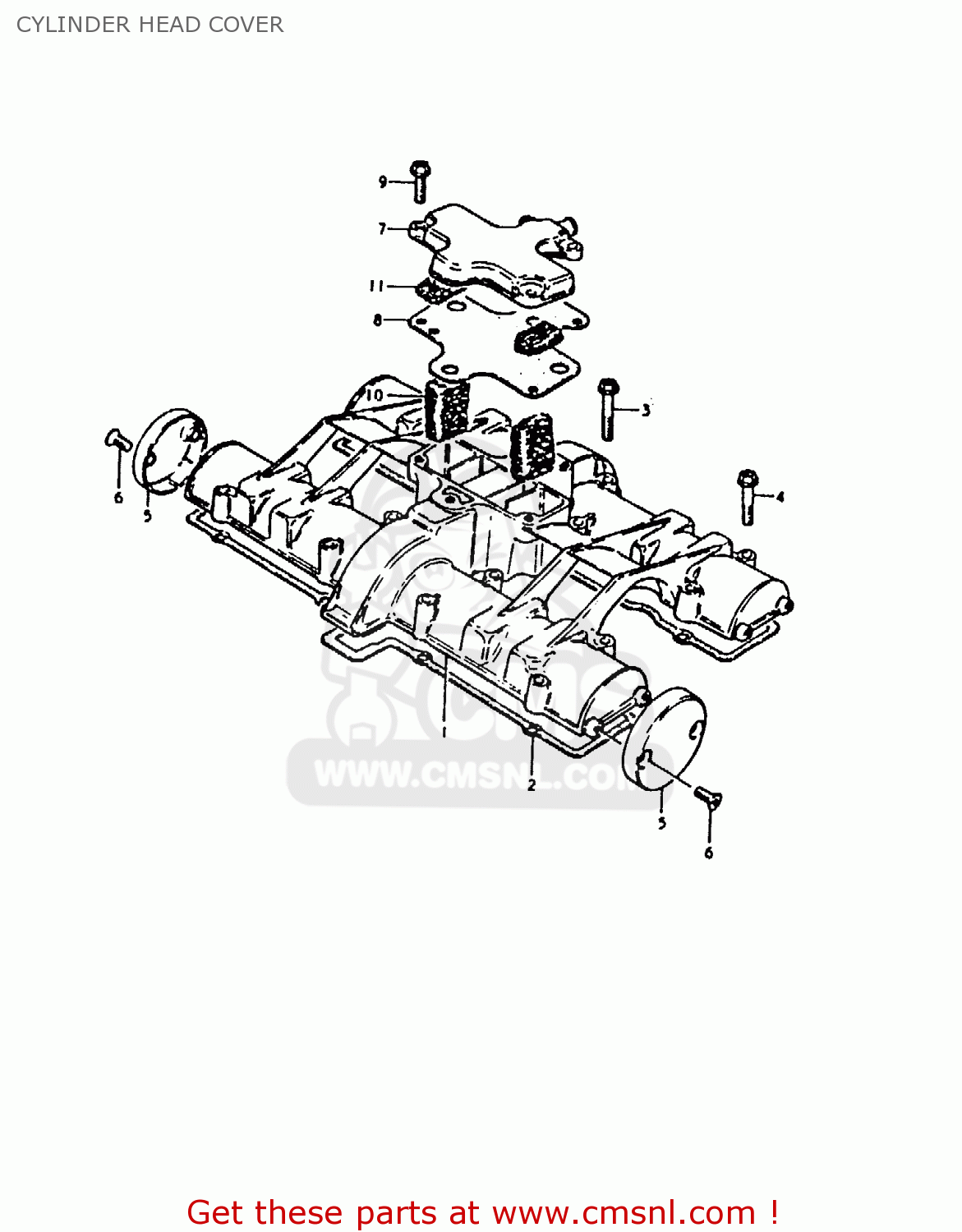

Cylinder head cover diagram GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

prices are in EUR

ref

part #

description

quantity

1-1

1117149001
ref: 1-1
FROM 11171-49000 TO

COVER,CYLINDER HEAD

€ 175.00

1-2

1117149002
ref: 1-2

COVER,CYLINDER HEAD

€ 175.00

1117349002
ref: 2
FORM 11173-49001

GASKET,CYLINDER HEAD COVER (MCA)

€ 60.50

0151706408
ref: 3

BOLT

€ 2.50

0151706358
ref: 4

BOLT 6X35

€ 2.50

1117449000
ref: 5

CAP,CYLINDER HEAD COVER

€ 38.00

0213205127
ref: 6

SCREW 5X12

€ 2.50

1117647010
ref: 7

COVER,BREATHER

€ 32.50

1117747001
ref: 8

GASKET (MCA)

€ 19.50

0151706258
ref: 9

BOLT

€ 2.50

1118645000
ref: 10

COVER,BREATHER

€ 5.50

1118745000
ref: 11

SEPARATOR,OIL BREATHER

€ 6.50
