CHAIN CASE - REAR SHOCK ABSORBER

GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

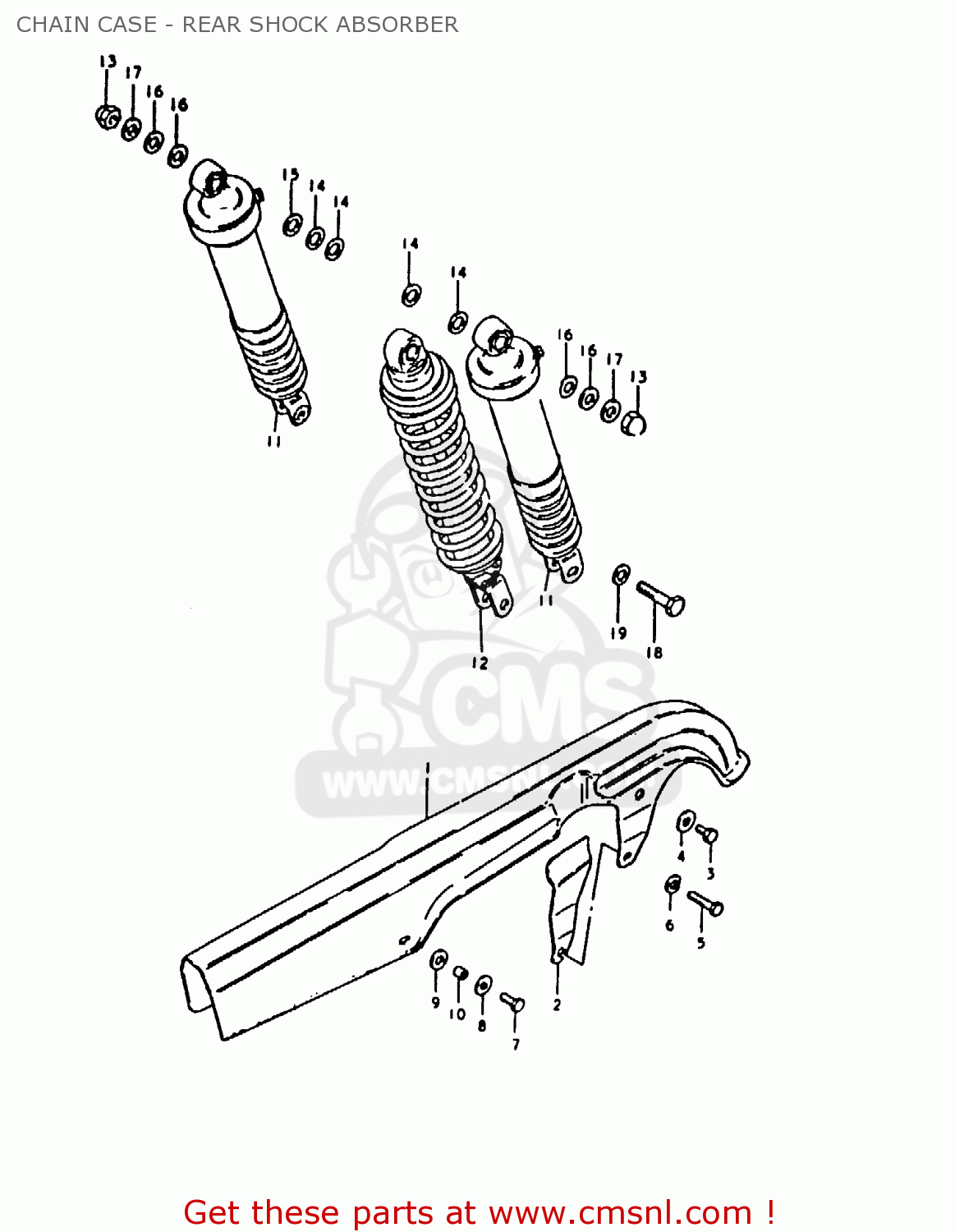

Chain case - rear shock absorber diagram GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

prices are in EUR

ref

part #

description

quantity

6131149001019
ref: 1

CASE,CHAIN

€ 121.00

6138145000
ref: 2

REINFORCEMENT,CHAIN CASE

€ 42.00

0910006011
ref: 3

BOLT(6X8)

€ 2.50

0916906010
ref: 4

WASHER

€ 3.00

0110706258
ref: 5

BOLT

€ 2.00

0832121068
ref: 6

LOCK WASHER

€ 2.50

0110706108
ref: 7

BOLT

€ 2.00

0916006028
ref: 8

WASHER(6.5X18X1)

€ 1.50

0932008005
ref: 9

CUSHION

€ 2.00

0918006032
ref: 10

SPACER (6.1X8X5.2)

€ 2.50

11-1

6210349000
ref: 11-1

ABSORBER ASSEMBLY,REAR SHOCK

€ 0.00

11-2

NOTUSED
ref: 11-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12-1

6210049010
ref: 12-1

ABSORBER ASSEMBLY,REAR SHOCK

€ 183.50

12-2

NOTUSED
ref: 12-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

0831311108
ref: 13

NUT, LOWER LH

€ 2.50

0832211128
ref: 14

WASHER

€ 2.00

0916012012
ref: 15
12.5X24X3.2

WASHER (12.5X24X3.2)

€ 2.50

0916010001
ref: 16

WASHER

€ 2.00

0916010033
ref: 17

WASHER(10.5X24X3.2)

€ 2.00

0910410002
ref: 18

BOLT(10X36)

€ 4.50

0832211108
ref: 19

WASHER

€ 2.50
