HEADLAMP

GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

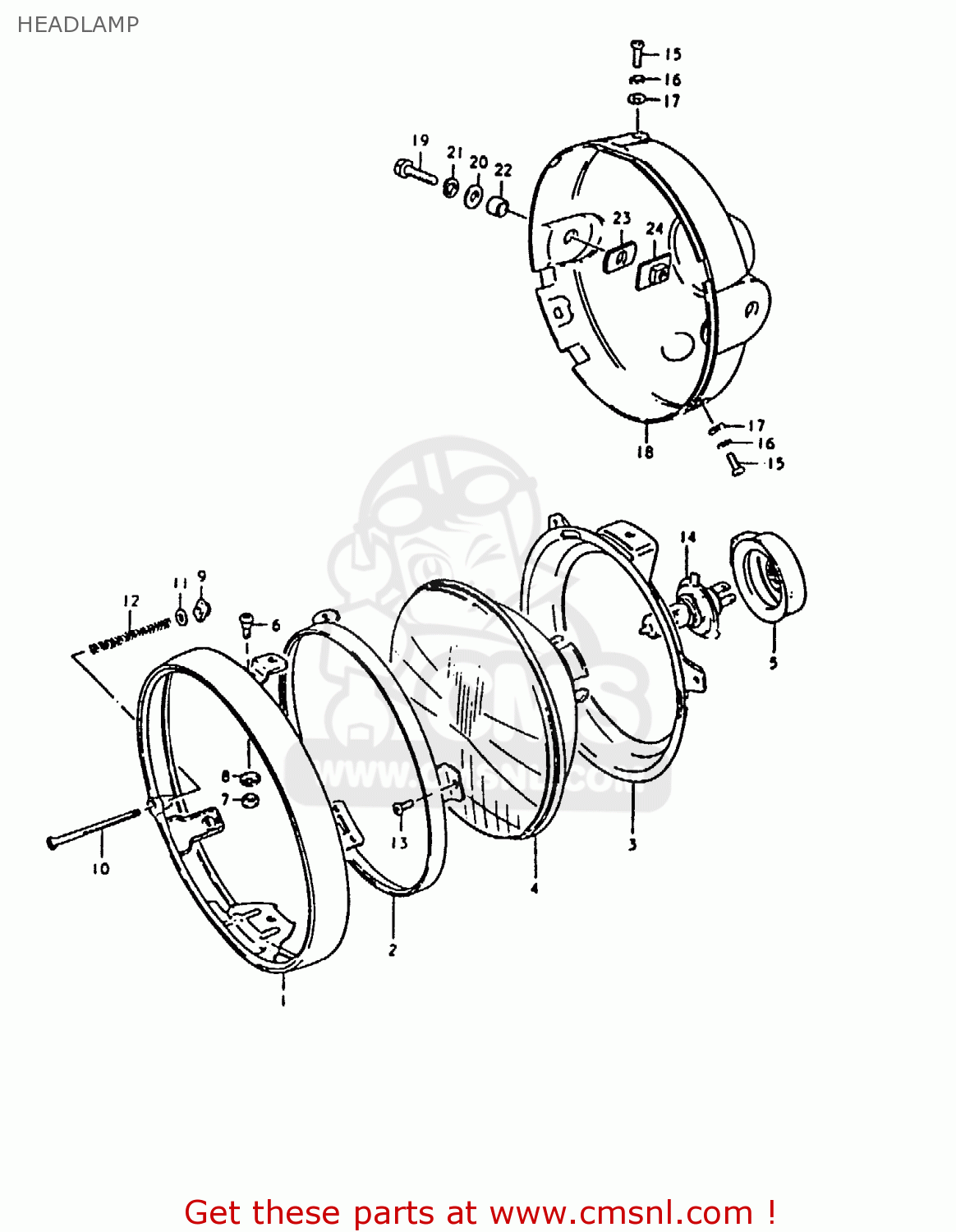

Headlamp diagram GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

HEADLAMP GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

HEADLAMP GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

prices are in EUR

ref

part #

description

quantity

0

3510049010999
ref: 0

HEADLAMP ASSEMBLY

€ 88.00

1

3511145600
ref: 1

RIM

€ 57.50

2

3512745600
ref: 2

RETAINER

€ 39.00

3

3513045600
ref: 3

RING,HEADLAMP UNIT

€ 35.00

4

3512149010
ref: 4

LAMP UNIT

€ 136.00

5

3517349020
ref: 5

COVER,HEADLAMP SOCKET

€ 14.00

6

3513625611
ref: 6

SCREW

€ 4.00

7

3513525611
ref: 7

NUT,ADJUSTING

€ 2.50

8

3513345600
ref: 8

SPACER

€ 3.50

9

3513545600
ref: 9

NUT

€ 3.00

10

3515127630
ref: 10

SCREW,HEADLAMP ADJUST

€ 3.50

11

3515727630
ref: 11

WASHER

€ 2.50

12

3515445600
ref: 12

SPRING,HEADLAMP ADJUST

€ 3.50

13

0211203088
ref: 13

SCREW

€ 1.50

14

0947112060
ref: 14

BULB(12V60/55W,H4)

€ 8.00

15

0912505022
ref: 15

SCREW

€ 3.50

16

0916205003
ref: 16

WASHER,LOCK

€ 2.00

17

0916906021
ref: 17

WASHER

€ 2.50

18

5181145002291
ref: 18

HOUSING,HEADLAMP(BLACK)

€ 69.50

19

0120408257
ref: 19

BOLT

€ 2.00

20

0832211088
ref: 20

WASHER

€ 2.00

21

0832121088
ref: 21

LOCK WASHER

€ 2.00

22

0918008030
ref: 22

SPACER (8.8X12X7)

€ 3.50

23

0932912002
ref: 23

CUSHION

€ 3.00

24

5186045000
ref: 24

PLATE,HEADLAMP HOUSING

€ 2.00
