REAR BARKE HOSE

GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

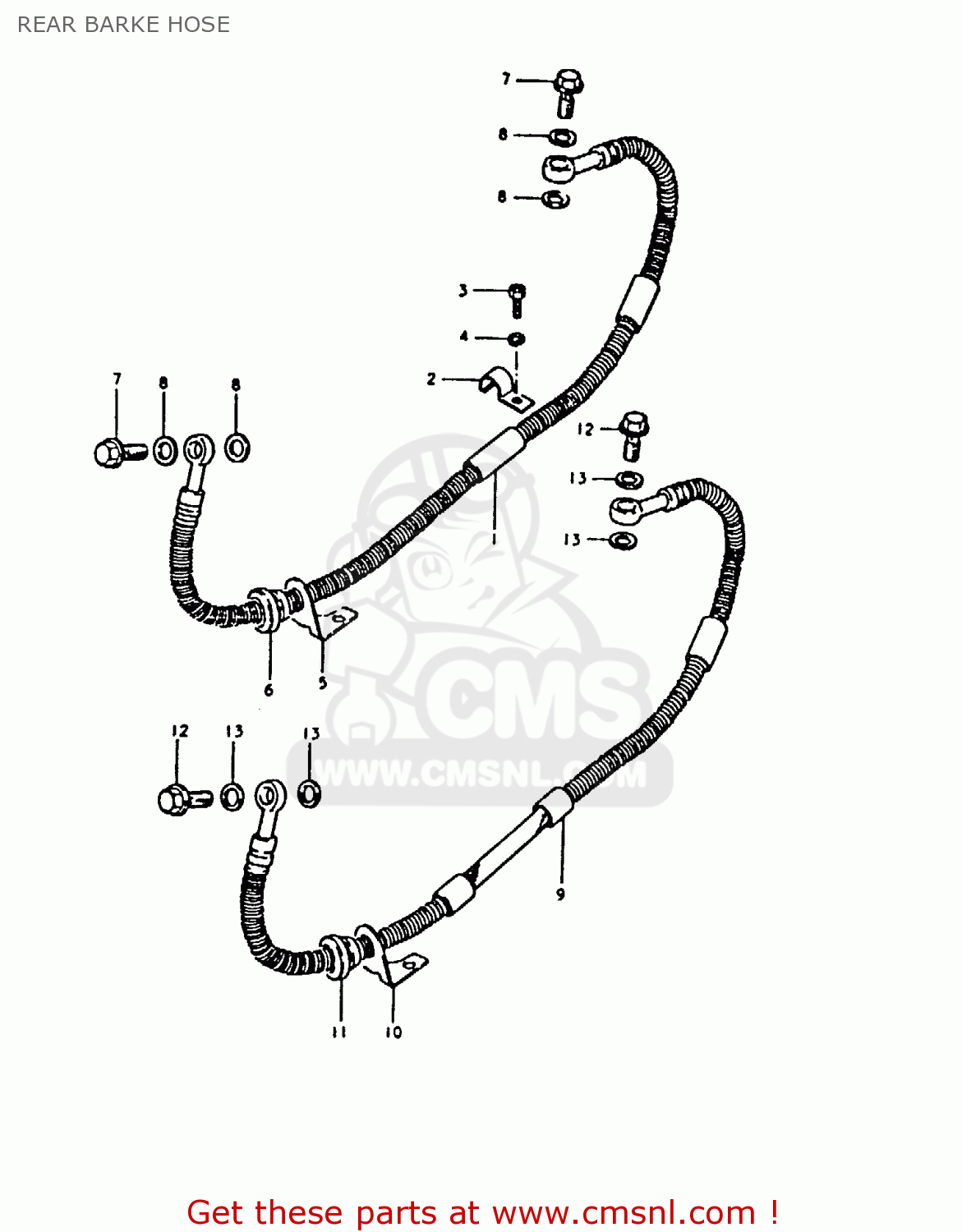

Rear barke hose diagram GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

prices are in EUR

ref

part #

description

quantity

6948049002
ref: 1
FOR 61100-49810-019

HOSE,REAR BRAKE

€ 62.50

6926849000
ref: 2

CLAMP,REAR BRAKE HOSE

€ 5.50

0912806013
ref: 3

SCREW(6X8)

€ 1.50

0832121068
ref: 4

LOCK WASHER

€ 2.50

6924347000
ref: 5

GUIDE,BRAKE HOSE

€ 5.50

5924436200
ref: 6

GROMMET,BRAKE HOSE GUIDE

€ 4.00

0936010008
ref: 7

BOLT,UNION

€ 7.00

0916110005
ref: 8

WASHER

€ 2.00

6948049003
ref: 9
FOR 61100-49811-019

HOSE,REAR BRAKE

€ 76.50

6924347000
ref: 10

GUIDE,BRAKE HOSE

€ 5.50

5924436200
ref: 11

GROMMET,BRAKE HOSE GUIDE

€ 4.00

0936010008
ref: 12

BOLT,UNION

€ 7.00

0916110005
ref: 13

WASHER

€ 2.00
