REAR SWINGING ARM

GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

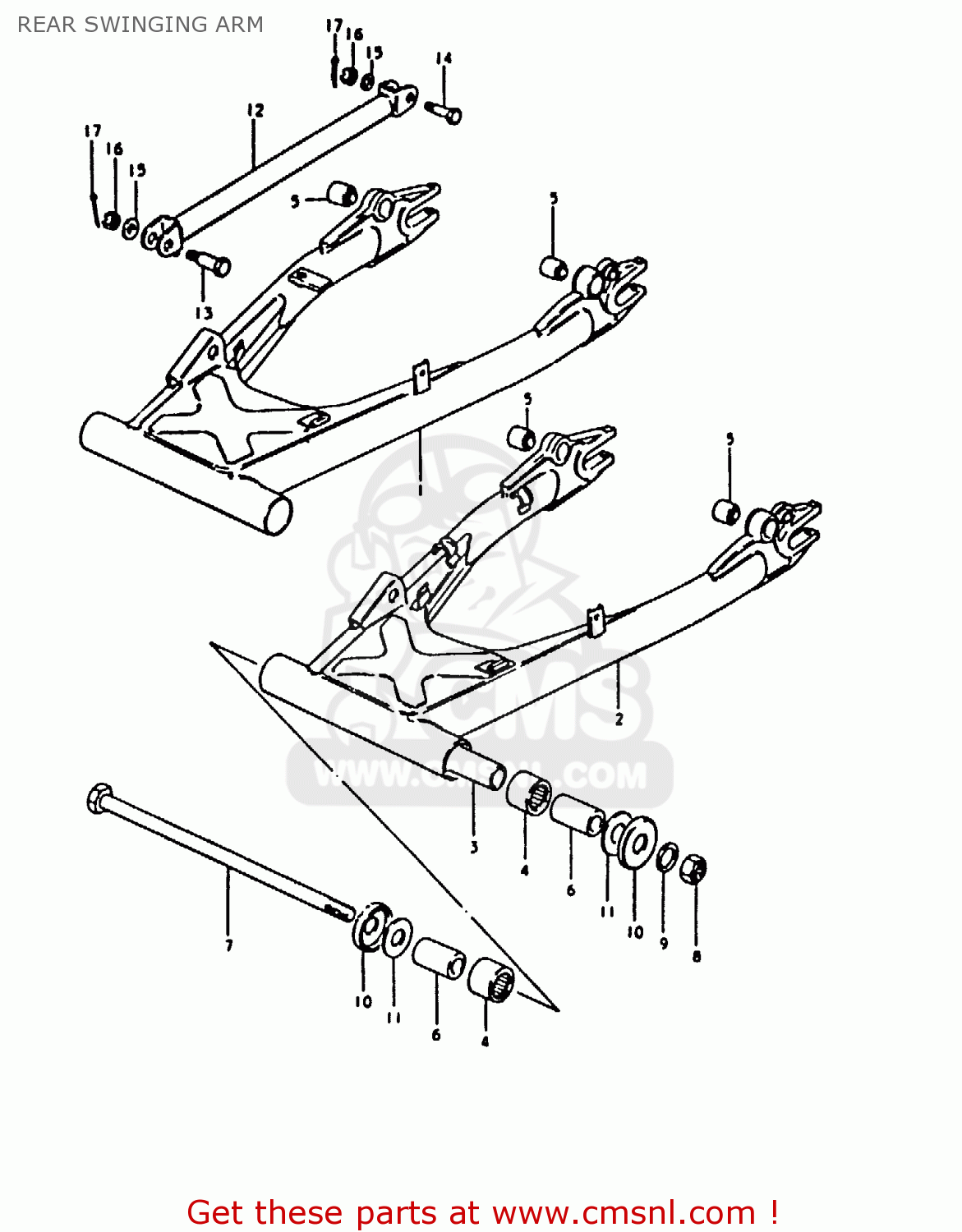

Rear swinging arm diagram GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

REAR SWINGING ARM GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

REAR SWINGING ARM GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

prices are in EUR

ref

part #

description

quantity

1

6110049810019
ref: 1
WITH 69480-49002

SWING ARM ASSEMBLY,REAR

€ 261.50

2

6110049811019
ref: 2
WITH 69480-49003

SWING ARM ASSEMBLY,REAR

€ 261.50

3

0926325024
ref: 3

BEARING(25X33X30)

€ 31.50

4

0931910008
ref: 4

BUSH

€ 8.00

5

6128249000
ref: 5

SPACER,RR SWGARM PIVOT CTR

€ 24.00

6

6121149000
ref: 6

SHAFT,REAR SWING ARM

€ 45.00

7

0831921168
ref: 7

NUT 16MM

€ 5.00

8

0832211168
ref: 8

WASHER

€ 2.00

9

6125149000
ref: 9

SPACER,RR SWGARM PIVOT

€ 17.50

10

6126249000
ref: 10

COVER,RR SWGARM DUST SEAL

€ 17.50

11

0821116381
ref: 11

WASHER

€ 2.50

12

6431049000019
ref: 12

LINK,REAR TORQUE

€ 16.00

13

0911110011
ref: 13

BOLT

€ 8.00

14

0910110017
ref: 14

BOLT(10X39)

€ 5.00

15

0832211108
ref: 15

WASHER

€ 2.50

16

0831441108
ref: 16

NUT

€ 2.50

17

0411120208
ref: 17

PIN 20X20

€ 1.50
