OIL PUMP - OIL FILTER

GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

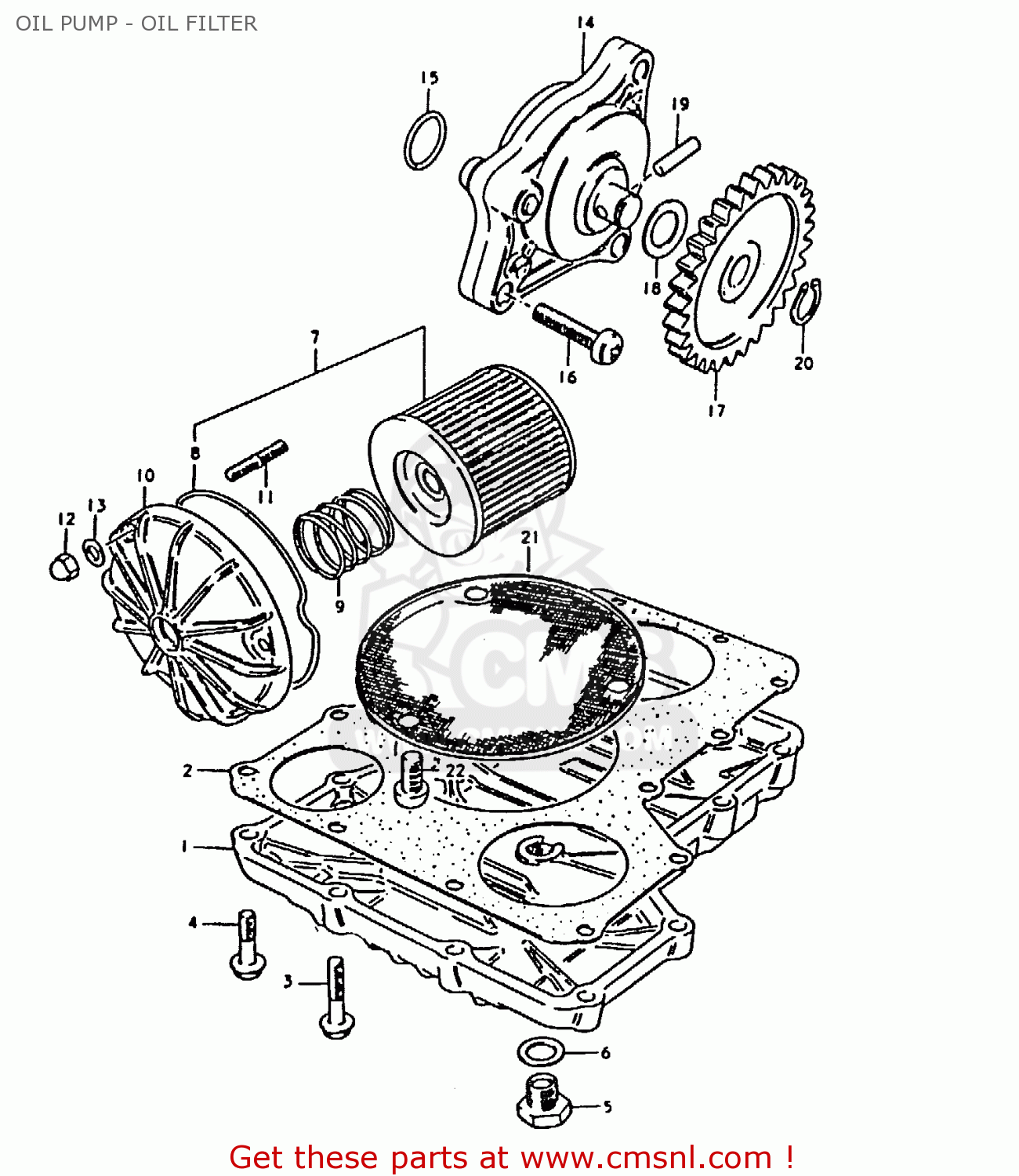

Oil pump - oil filter diagram GS1000E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E30 39

prices are in EUR

ref

part #

description

quantity

1151145000
ref: 1

PAN,OIL

€ 143.50

1148945001
ref: 2

GASKET,OIL PAN (MCA)

€ 15.50

0151706308
ref: 3

BOLT

€ 2.00

0151706258
ref: 4

BOLT

€ 2.50

0924714001
ref: 5

PLUG

€ 5.00

0916814004
ref: 6

GASKET(14X19.2X2) (NAS)

€ 2.50

1650045810
ref: 7

ENGINE OIL FILTER SET

€ 11.50

1651845000
ref: 8

O RING,OIL FILTER CHAMBER CAP

€ 7.50

0944032004
ref: 9

SPRING

€ 13.50

1651245100
ref: 10

CAP,OIL FILTER

€ 37.50

0142106208
ref: 11

STUD 6X20

€ 2.50

0831311068
ref: 12

NUT

€ 2.00

0832221068
ref: 13

WASHER

€ 2.00

1640049011
ref: 14

PUMP ASSEMBLY,OIL

€ 134.00

0928013004
ref: 15

O RING(D:1.9,ID:13)

€ 2.50

0211206258
ref: 16

SCREW

€ 2.00

1633149990
ref: 17

GEAR,OIL PUMP DRIVEN

€ 84.50

0822110185
ref: 18

SHIM

€ 2.00

0926104009
ref: 19

PIN(4X15.8)

€ 1.50

0833131109
ref: 20

CIRCLIP

€ 2.00

1652045000
ref: 21

STRAINER,ENGINE OIL

€ 12.00

0211206128
ref: 22

SCREW 6X12

€ 2.00
