CRANKCASE (MODEL D)
GS1100E 1983 (D) USA (E03)

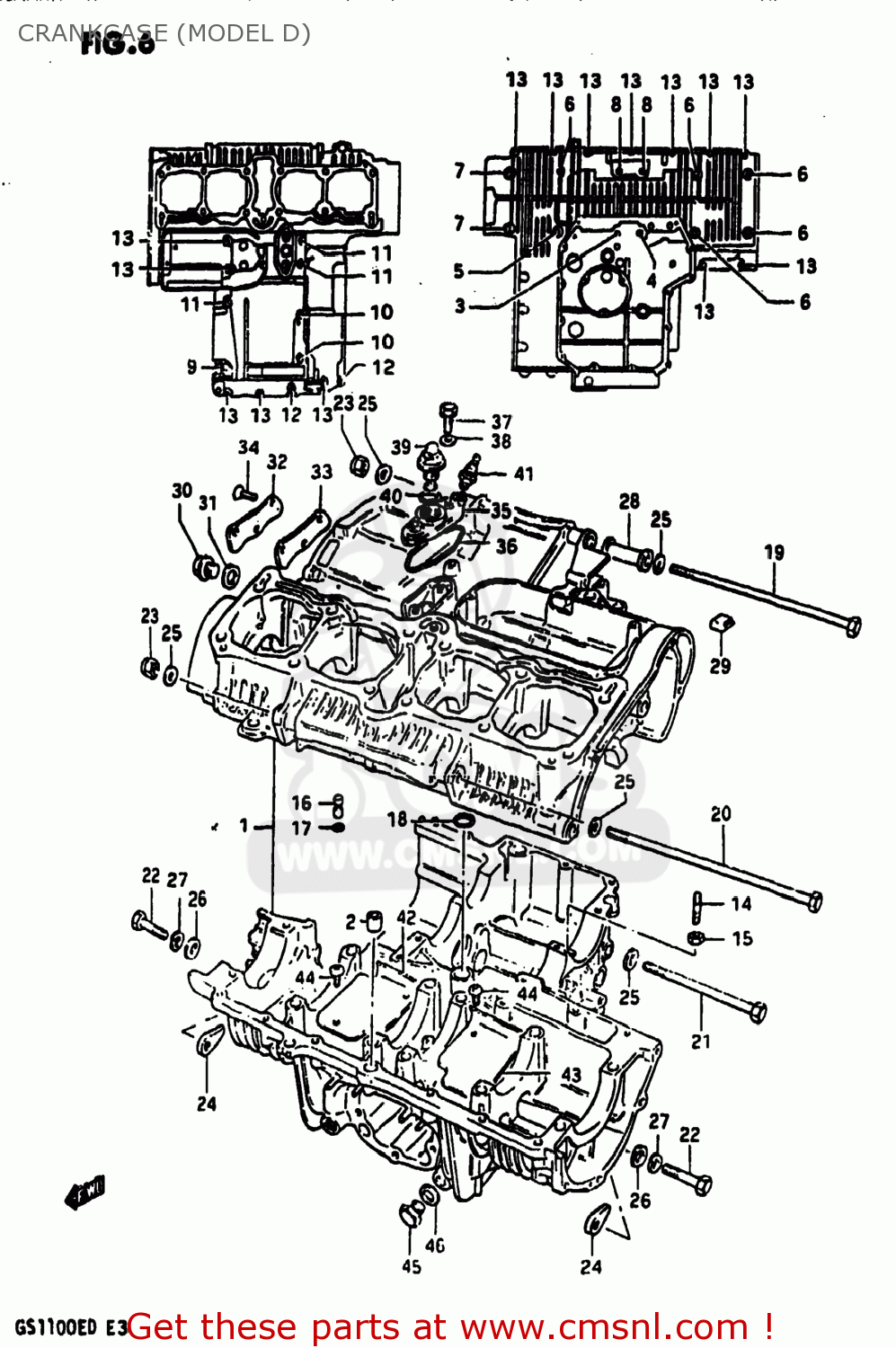

Crankcase (model d) diagram GS1100E 1983 (D) USA (E03)
CRANKCASE (MODEL D) GS1100E 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130049870
ref: 1
11300-49826
CRANKCASE SET
€ 60.50
2
0920613001
ref: 2
04211-13189
PIN
€ 2.50
3
0910308059
ref: 3
BOLT 8X155
€ 7.50
4
0910308020
ref: 4
09103-08106
BOLT
€ 8.00
5
0910308009
ref: 5
09103-08070
BOLT
€ 5.00
6
0151708905
ref: 6
01550-0890B
BOLT (8X90)
€ 3.50
7
0151708655
ref: 7
01550-0865A
BOLT (8X65)
€ 3.00
8
0151708605
ref: 8
01550-0860A
BOLT 8X60
€ 3.50
9
0151708505
ref: 9
01550-0850B
BOLT (8X50)
€ 2.50
10
0151706855
ref: 10
01550-0685B
BOLT
€ 2.50
11
0151706755
ref: 11
01550-0675A
BOLT (6X75)
€ 2.50
12
0151706555
ref: 12
01550-0655B
BOLT 6X55
€ 2.00
13
0151706405
ref: 13
01550-0640A
BOLT (6X40)
€ 2.00
14
0142106358
ref: 14
01421-0635A
STUD BOLT
€ 2.00
15
0831616068
ref: 15
08319-31067
NUT
€ 2.50
16
0936405005
ref: 16
UNION
€ 3.00
17
0928003003
ref: 17
O RING(D:1.05,ID:3.1)
€ 2.50
18
0928013001
ref: 18
O RING(D:3.2,ID:12.9)
€ 4.00
19
0910010140
ref: 19
BOLT 10X230
€ 13.50
20
0910110010
ref: 20
09101-10010-XC0
BOLT 10X250
€ 49.50
21
0910010078
ref: 21
BOLT(10X165)
€ 10.50
22
0110710605
ref: 22
01500-1060A
BOLT (10X60)
€ 3.50
23
0915910011
ref: 23
NUT
€ 3.00
24
0915910020
ref: 24
NUT
€ 7.50
25
0832211105
ref: 25
08322-0110A
WASHER
€ 2.50
26
0916010054
ref: 26
09160-10005
WASHER (10.5X20X3.2)
€ 2.00
27
0832121105
ref: 27
08321-0110A
LOCK WASHER
€ 3.00
28
1161045410
ref: 28
SPACER,ENGINE MOUNT(L:65)
€ 11.50
29
1125225000
ref: 29
PAD,CYLINDER
€ 5.00
30
0924714012
ref: 30
09247-14026
PLUG (14X12)
€ 3.50
31
0916814004
ref: 31
GASKET(14X19.2X2) (NAS)
€ 2.50
32
1139445000
ref: 32
CAP,OIL GALLERY
€ 6.50
33
1149745000
ref: 33
11497-45000-H17
GASKET,OIL GALLERY (MCA)
€ 13.00
34
0212206168
ref: 34
02122-06167
SCREW
€ 2.00
35
1644549010
ref: 35
HOUSING,OIL PRESSURE SWITCH
€ 20.00
36
1644845000
ref: 36
O RING,PRESSURE SWITCH HOUSING
€ 10.50
37
0151706258
ref: 37
01550-06257
BOLT
€ 2.50
38
0916806009
ref: 38
09168-06023
GASKET (NAS)
€ 2.00
39
3782045060
ref: 39
37820-45061
SWITCH ASSEMBLY
€ 30.00
40
0928019001
ref: 40
O RING(D:1.9,ID:18.8)
€ 1.50
41-1
3487049000
ref: 41-1
GAUGE ASSEMBLY,OIL TEMPERATURE
€ 105.00
41-2
3487031300
ref: 41-2
34870-31301
GAUGE ASSEMBLY,OIL TEMPERATURE
€ 121.00
42
1152149200
ref: 42
11521-49201
PLATE,OIL SEPARATOR
€ 5.50
43
1152249200
ref: 43
11522-49201
PLATE,OIL SEPARATOR
€ 4.50
44
0211206088
ref: 44
02112-06087
SCREW
€ 2.00
45
0924714022
ref: 45
09247-14029
PLUG
€ 2.00
46
0916814004
ref: 46
GASKET(14X19.2X2) (NAS)
€ 2.50
