FRONT WHEEL (GS1100EZ)

GS1100E 1983 (D) USA (E03)

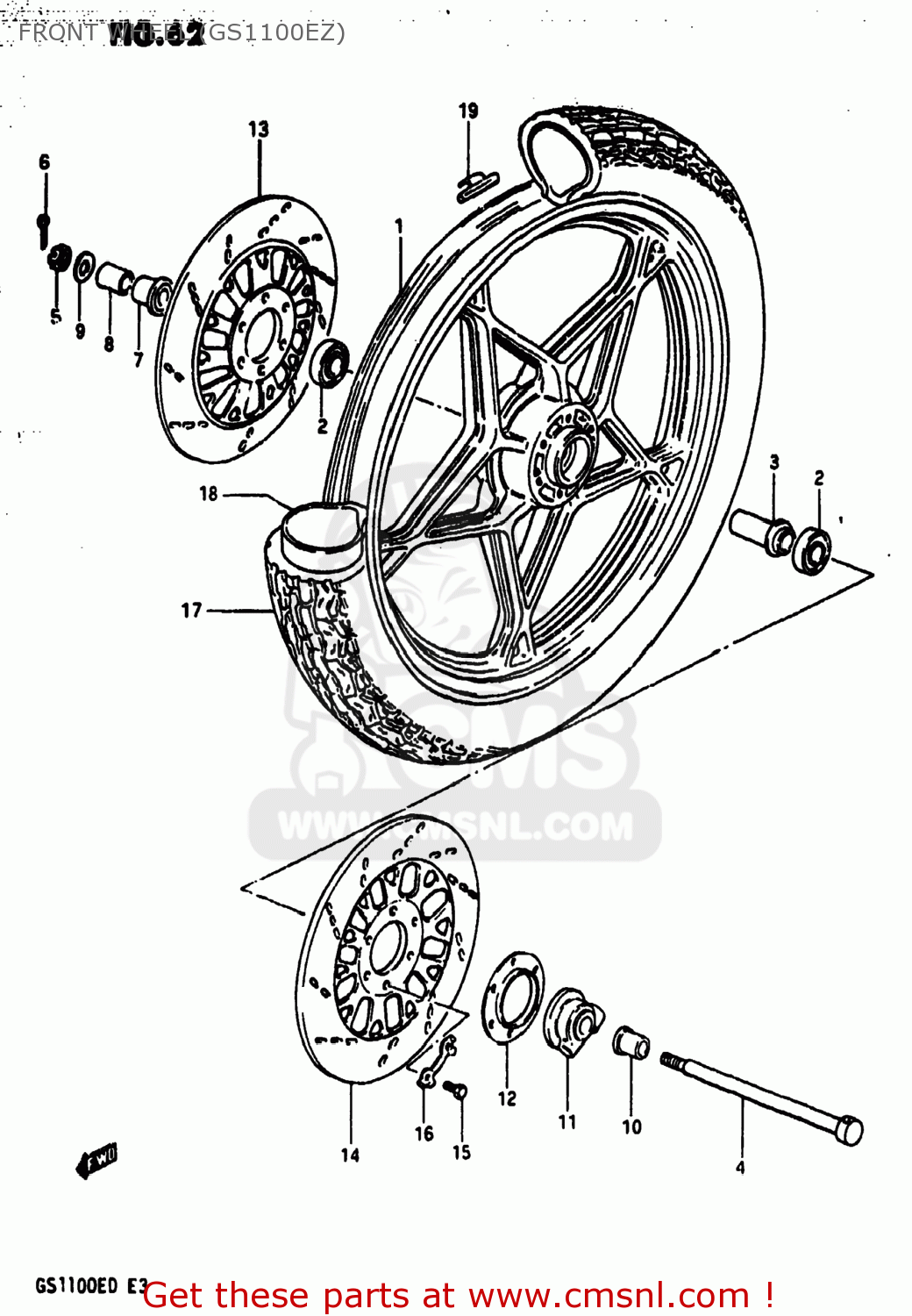

Front wheel (gs1100ez) diagram GS1100E 1983 (D) USA (E03)

FRONT WHEEL (GS1100EZ) GS1100E 1983 (D) USA (E03)

FRONT WHEEL (GS1100EZ) GS1100E 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

541114930012U
ref: 1
54111-49350-291

WHEEL, FRONT (19X1.85) (GRAY)

€ 491.00

2

0812363027
ref: 2

BEARING

€ 19.00

3

5473018400
ref: 3

SPACER,FR HUB BEARING

€ 13.00

4

5471149000
ref: 4

AXLE,FR

€ 79.50

5

0831431128
ref: 5
08314-3112A

NUT 12MM

€ 2.00

6

0411130308
ref: 6
04111-3030A

COTTER PIN

€ 1.50

7

5474018402
ref: 7

SPACER,FR AXLE,R

€ 18.50

8

5474149300
ref: 8

SPACER,FR AXLE,R

€ 19.00

9

0832221128
ref: 9
08322-01127

WASHER

€ 2.00

10

5474149000
ref: 10

SPACER,FR AXLE,L

€ 16.50

11

5460018401
ref: 11
54600-18402

BOX ASSEMBLY,SPEEDOMETER GEAR

€ 90.50

12

5487145010
ref: 12

DUST SEAL,SPEEDOMETER GEAR BOX

€ 21.00

13

5921145250
ref: 13

DISC,FR BRAKE,R

€ 149.00

14

5922145250
ref: 14

DISC,FR BRAKE,L

€ 149.00

15

0910008140
ref: 15

BOLT(8X25)

€ 2.00

16

0916908016
ref: 16

WASHER

€ 3.50

17

5510049530
ref: 17
55100-49330

TIRE,FRONT

€ 319.00

18

5520015030
ref: 18
65200-01B30

TUBE,INNER

€ 41.00

19-1

5541149300
ref: 19-1
55412-17G00

BALANCER,WHEEL

€ 7.00

19-2

5541249300
ref: 19-2

BALANCER,WHEEL (30G)

€ 4.00
