STAND
GS1100E 1983 (D) USA (E03)

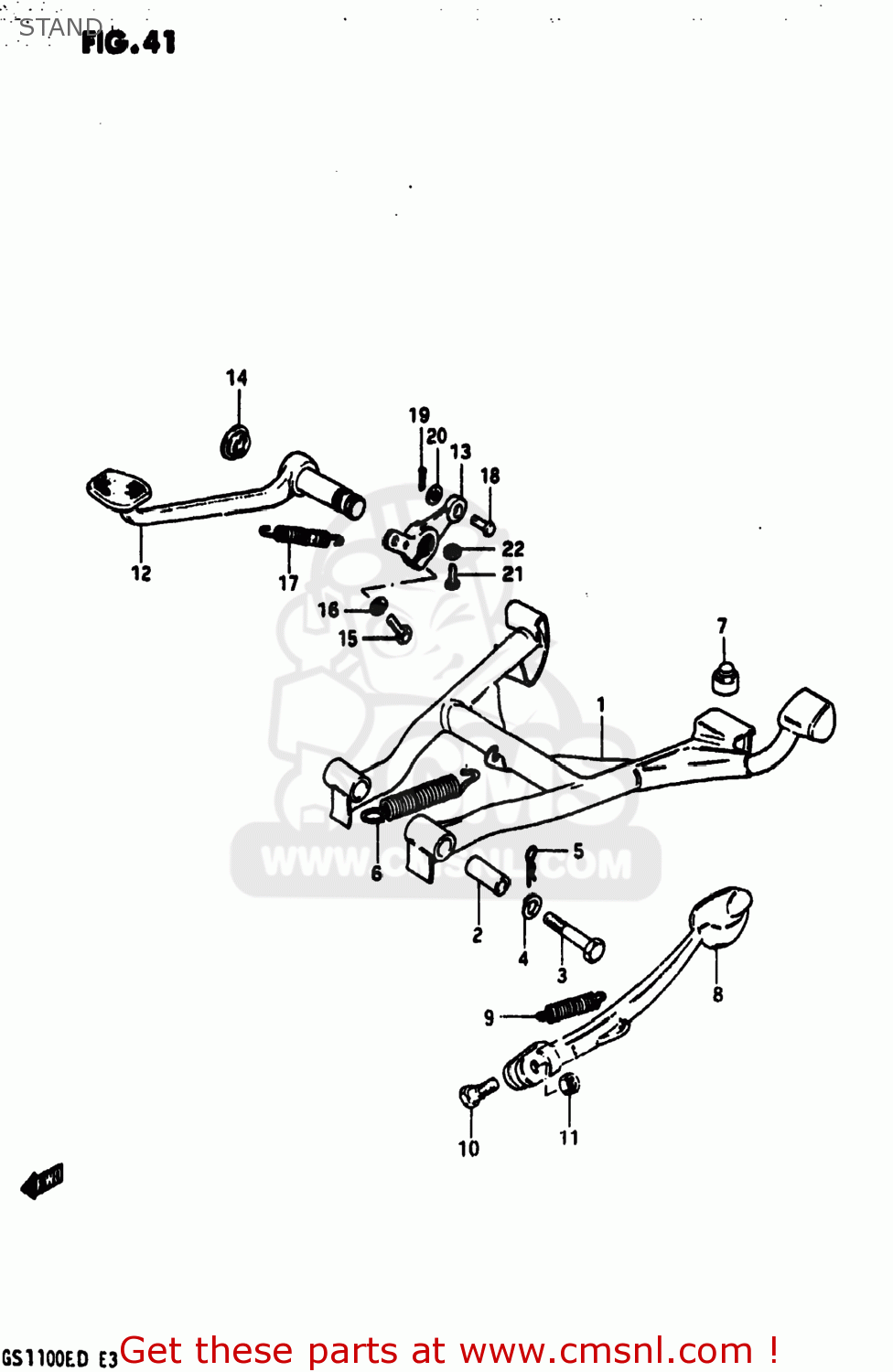

Stand diagram GS1100E 1983 (D) USA (E03)
STAND GS1100E 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4210049200
ref: 1
STAND,CENTER
€ 197.00
2
0918010040
ref: 2
SPACER(10X16X38.8)
€ 3.00
3
0910110018
ref: 3
09101-10030
BOLT
€ 5.50
4
0832121108
ref: 4
08321-01107
LOCK WASHER
€ 2.00
5
0938510001
ref: 5
09385-10005
CLIP
€ 1.50
6
0944320001
ref: 6
09443-20001-XC0
SPRING
€ 11.00
7
0932110001
ref: 7
CUSHION
€ 2.50
8
4231149500
ref: 8
STAND,SIDE
€ 50.00
9
0944317008
ref: 9
09443-17008-XC0
SPRING
€ 11.50
10
0910010067
ref: 10
BOLT(10X30)
€ 3.50
11
0831022108
ref: 11
08310-00107
NUT
€ 2.50
12-1
4311049510
ref: 12-1
43110-49511
PEDAL,BRAKE
€ 63.00
12-2
4311049511
ref: 12-2
PEDAL,BRAKE
€ 63.00
13
4312849510
ref: 13
ARM,BRAKE PEDAL
€ 35.00
14
4311849510
ref: 14
CAP, BRAKE PEDAL
€ 0.00
15-1
0120408257
ref: 15-1
BOLT
€ 2.00
15-2
0110708258
ref: 15-2
01500-08257
BOLT
€ 2.50
16
0832121088
ref: 16
08321-01087
LOCK WASHER
€ 2.00
17
0944314013
ref: 17
SPRING
€ 21.50
18
0920006029
ref: 18
PIN
€ 1.50
19
0411120158
ref: 19
04111-2015A
PIN
€ 1.50
20
0832221068
ref: 20
08322-01067
WASHER
€ 2.00
21
0110706208
ref: 21
01500-06207
BOLT
€ 2.00
22
0831011068
ref: 22
08310-00067
NUT
€ 2.50
