HEADLAMP (GS1100EZ/ED)
GS1100E 1983 (D) USA (E03)

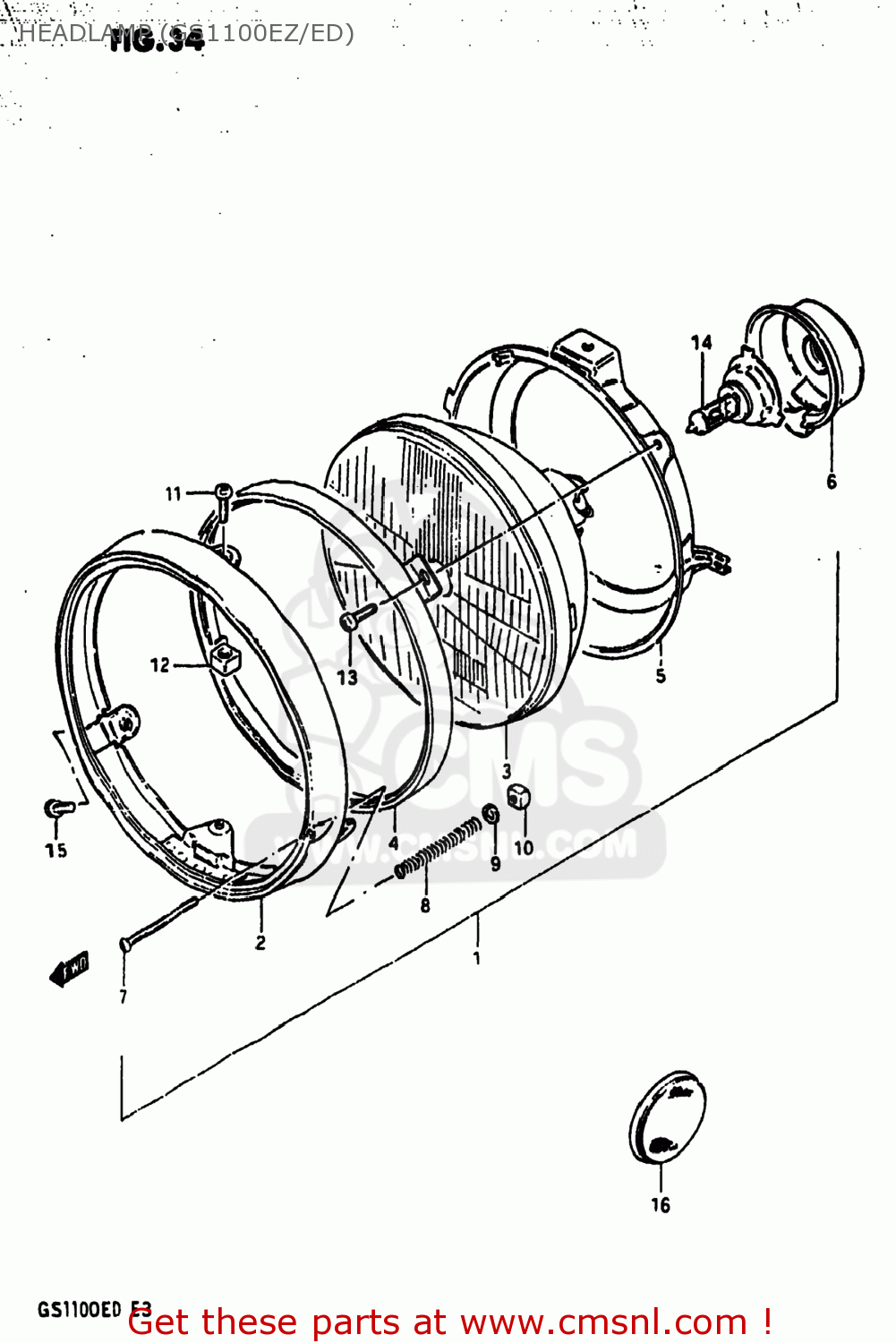

Headlamp (gs1100ez/ed) diagram GS1100E 1983 (D) USA (E03)
HEADLAMP (GS1100EZ/ED) GS1100E 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510045930999
ref: 1
HEADLAMP ASSEMBLY
€ 140.50
2
3511145900
ref: 2
RIM
€ 69.50
3
3512145930
ref: 3
LAMP UNIT
€ 151.00
4
3512745900
ref: 4
RETAINER
€ 30.50
5
3513045900
ref: 5
RING,MOUNTING
€ 126.00
6
3517349200
ref: 6
35173-38A00
COVER,HEADLAMP SOCKET
€ 12.50
7
3515145900
ref: 7
SCREW
€ 4.00
8
3515445900
ref: 8
35154-49200
SPRING,HEADLAMP ADJUST
€ 3.50
9
3515727630
ref: 9
WASHER
€ 2.50
10
3513545600
ref: 10
NUT
€ 3.00
11
0211205128
ref: 11
02112-05127
SCREW
€ 2.50
12
3513545900
ref: 12
NUT
€ 2.50
13
0211204088
ref: 13
02112-04087
SCREW
€ 1.50
14
0947112060
ref: 14
BULB(12V60/55W,H4)
€ 8.00
15
0912705013
ref: 15
SCREW(5X12)
€ 2.50
16
3595049080
ref: 16
REFLEX REFLECTOR,RR
€ 17.50
