STEERING STEM (GS1100EZ)
GS1100E 1983 (D) USA (E03)

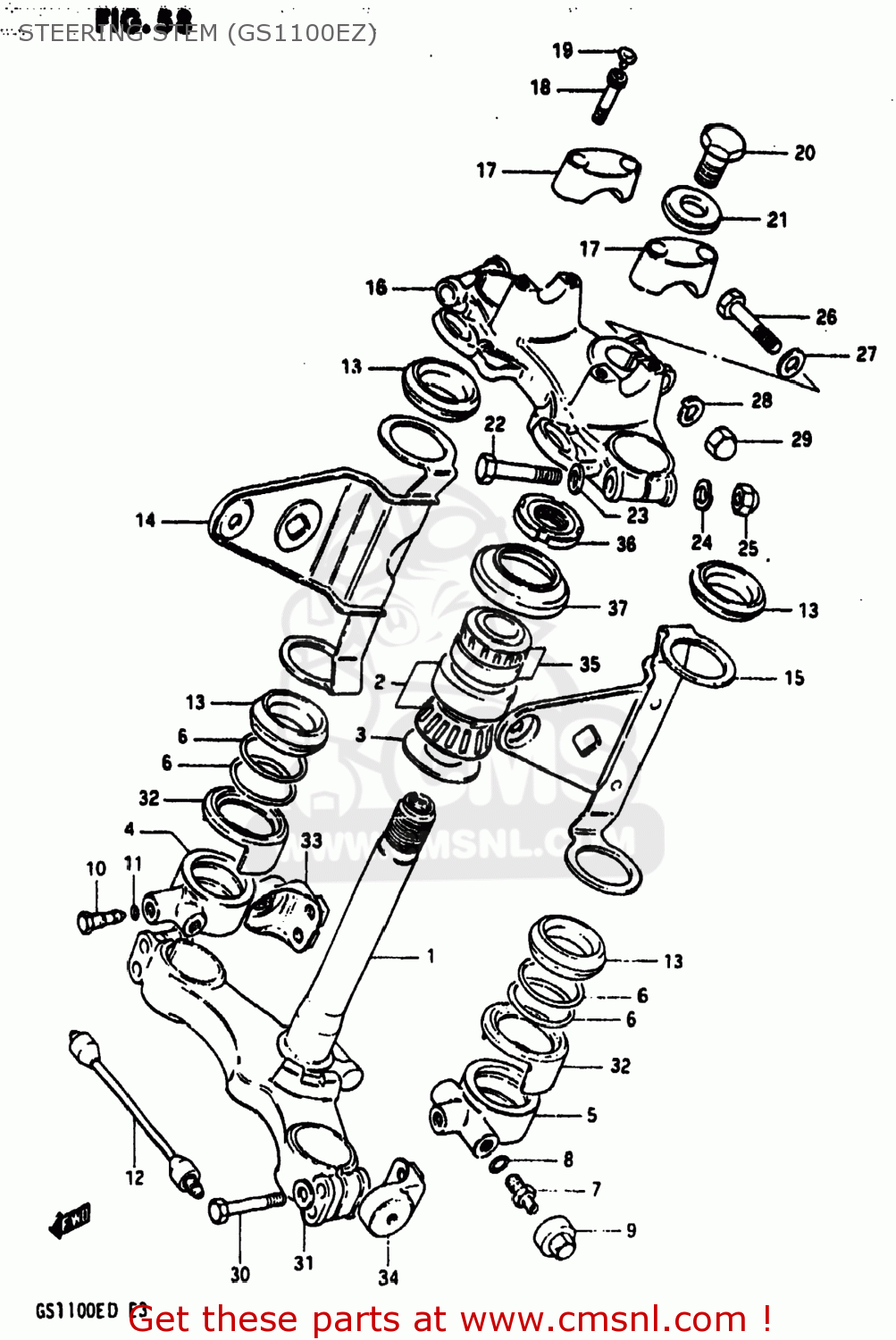

Steering stem (gs1100ez) diagram GS1100E 1983 (D) USA (E03)
STEERING STEM (GS1100EZ) GS1100E 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5141049500291
ref: 1
51410-49520-291
STEM,STEERING
€ 140.00
2
0926530005
ref: 2
09265-30009
BEARING
€ 49.50
3
0821130402
ref: 3
09181-30184
WASHER,THRUST
€ 4.00
4
5143149200291
ref: 4
JOINT,AIR,RIGHT
€ 38.50
5
5143249200291
ref: 5
BRACKET,FORK CONNECTING
€ 48.50
6
5143649200
ref: 6
O RING
€ 3.00
7
5129349001
ref: 7
VALVE
€ 18.00
8
5111741211
ref: 8
O RING
€ 6.50
9
5129449000
ref: 9
CAP,VALVE
€ 22.50
10
5143449200
ref: 10
VALVE,STOP
€ 8.00
11
5143549200
ref: 11
O RING
€ 2.50
12
5143349500
ref: 12
HOSE,FORK CONNECTING
€ 22.50
13
5155349000
ref: 13
51553-34300
CUSHION,HEADLAMP BRACKET
€ 4.50
14
5153049500291
ref: 14
51500-49840-291
BRACKET,HEADLAMP,RIGHT
€ 112.00
15
5154049500291
ref: 15
BRACKET,HEADLAMP,LEFT
€ 56.00
16
5131149500291
ref: 16
51311-49400-291
HEAD,STEERING STEM
€ 198.50
17
5621149500291
ref: 17
56211-26D00
HOLDER,HANDLEBAR
€ 26.00
18
0910608013
ref: 18
07130-0830A
BOLT
€ 3.00
19
0925006004
ref: 19
CAP(OD:14.5)
€ 1.50
20
5135349300
ref: 20
51352-31305
SUZUKI
€ 11.50
21
5135649300
ref: 21
51356-43530
SUZUKI
€ 3.50
22
0110710558
ref: 22
01500-1055A
BOLT 10X55
€ 3.50
23
0832221108
ref: 23
08322-01107
WASHER
€ 2.50
24
0832121108
ref: 24
08321-01107
LOCK WASHER
€ 2.00
25
0831311105
ref: 25
08313-1010A
NUT 10MM
€ 2.00
26
0110708508
ref: 26
01500-08507
BOLT 8X50
€ 3.00
27
0832221088
ref: 27
08322-01087
WASHER
€ 2.00
28
0832121088
ref: 28
08321-01087
LOCK WASHER
€ 2.00
29
0831311085
ref: 29
08313-10083
NUT,M8X1.25X12
€ 2.00
30
0110708558
ref: 30
01500-08557
BOLT 8X55
€ 3.00
31
0832221088
ref: 31
08322-01087
WASHER
€ 2.00
32
5148549500
ref: 32
51485-49501
BRACKET,REFLECTOR
€ 10.00
33
5155449500291
ref: 33
COVER,FORK BRACKET,RIGHT
€ 12.00
34
5155749500291
ref: 34
COVER,FORK BRACKET,LEFT
€ 12.00
35
0926525008
ref: 35
09265-25019
TAPER,ROLLER BEARING
€ 48.50
36
5163134200
ref: 36
NUT,STEERING STEM
€ 23.00
37
5164340502
ref: 37
DUST SEAL,STEERING UPR
€ 8.00
