GENERATOR (GS1100ESD)

GS1100E 1983 (D) USA (E03)

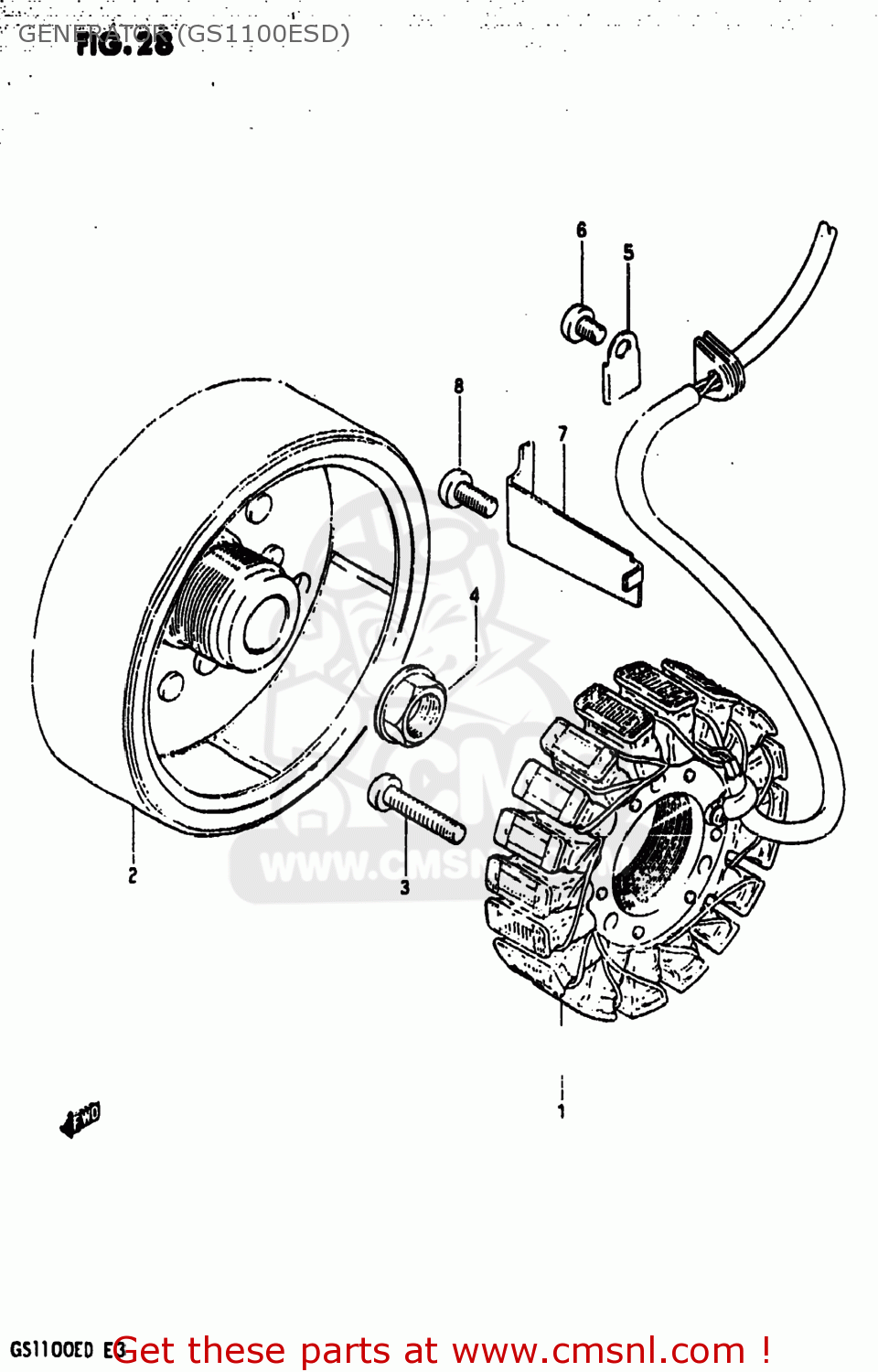

Generator (gs1100esd) diagram GS1100E 1983 (D) USA (E03)

GENERATOR (GS1100ESD) GS1100E 1983 (D) USA (E03)
GENERATOR (GS1100ESD) GS1100E 1983 (D) USA (E03)
GENERATOR (GS1100ESD) GS1100E 1983 (D) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3140149420
ref: 1
31401-09300
STATOR ASSEMBLY
3140149420
€ 405.50
2
3140249330
ref: 2
ROTOR ASSY
3140249330
€ 403.50
3
0211206308
ref: 3
02112-06307
SCREW 6X30
€ 2.50
4
3179249200
ref: 4
NUT,GENERATOR ROTOR
3179249200
€ 10.00
5
3149745000
ref: 5
CLAMP,GENERATOR LEAD WIRE
3149745000
€ 1.50
6
0211205088
ref: 6
02112-05087
SCREW
0211205088
€ 2.00
7
3149845000
ref: 7
CLAMP,GENERATOR LEAD WIRE
€ 2.00
8
0211206108
ref: 8
02112-06107
SCREW
0211206108
€ 1.50
