FOOTREST (MODEL Z)
GS1100E 1983 (D) USA (E03)

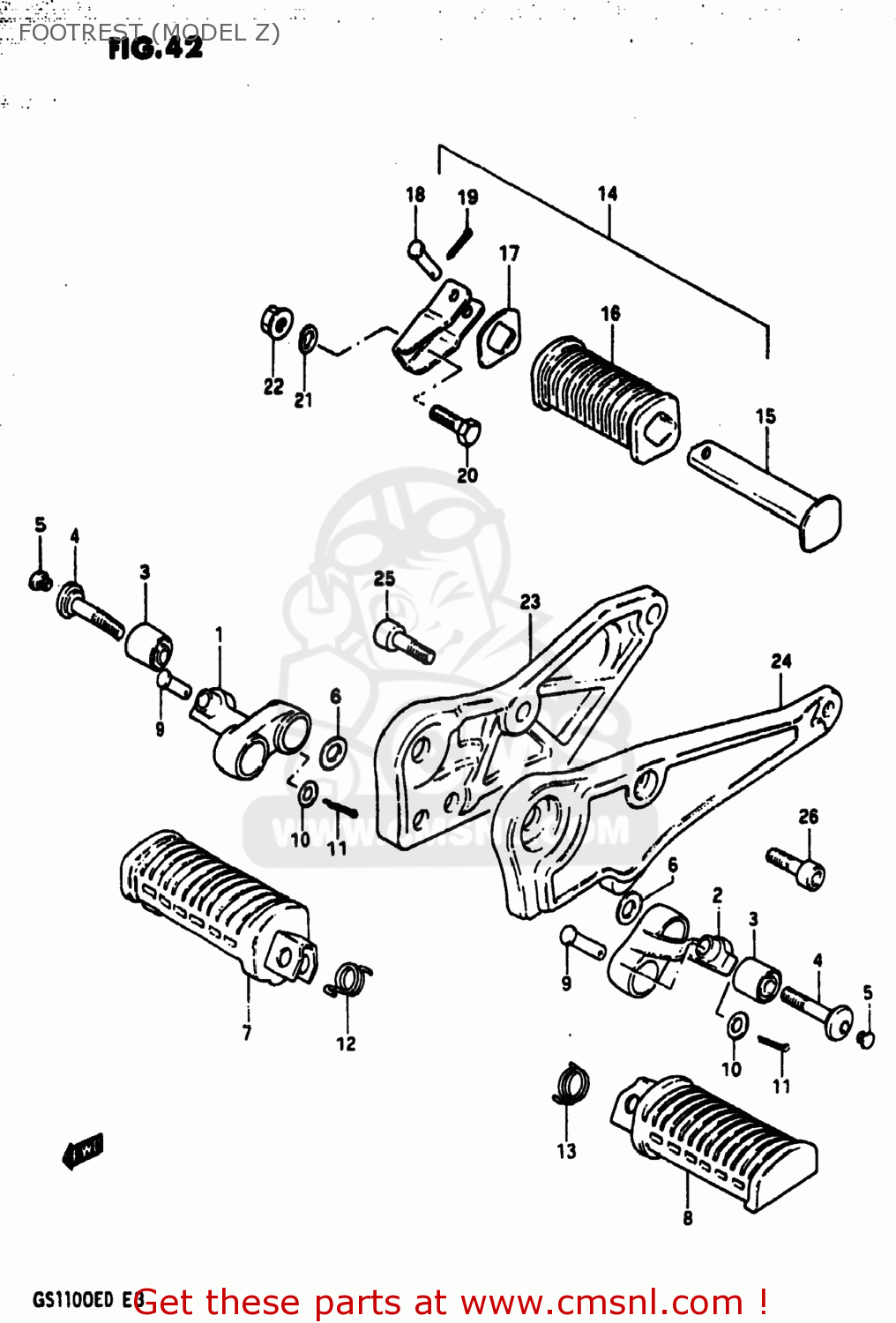

Footrest (model z) diagram GS1100E 1983 (D) USA (E03)
FOOTREST (MODEL Z) GS1100E 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351049510
ref: 1
BAR,FRONT FOOTREST,RIGHT
€ 18.00
2
4352049510
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 55.00
3
0931910008
ref: 3
BUSH
€ 8.00
4
0910610010
ref: 4
BOLT(10X50)
€ 44.00
5
4357534500
ref: 5
CAP
€ 1.50
6
0916010058
ref: 6
09160-10005
WASHER
€ 2.00
7
4355034500
ref: 7
43550-34501
RUBBER,FOOTREST
€ 36.00
8
4356034500
ref: 8
43560-34501
FOOTREST
€ 37.00
9
0920008002
ref: 9
PIN
€ 2.00
10
0832211088
ref: 10
08322-01087
WASHER
€ 2.00
11
0411120208
ref: 11
04111-2020A
PIN 20X20
€ 1.50
12
0944819014
ref: 12
SPRING
€ 6.00
13
0944819015
ref: 13
SPRING
€ 4.00
14-1
4360049500
ref: 14-1
43600-49502
FOOTREST ASSEMBLY,REAR
€ 43.50
14-2
4370049500
ref: 14-2
43700-49502
FOOTREST ASSEMBLY,PILLION
€ 23.00
15-1
4361049400
ref: 15-1
43610-49401
BAR,REAR FOOTREST
€ 8.50
15-2
4362049400
ref: 15-2
43620-49401
BAR,REAR FOOTREST
€ 8.50
16
4361249400
ref: 16
43612-49402
RUBBER,REAR FOOTREST
€ 14.50
17
4363149400
ref: 17
43631-49401
WASHER,REAR FOOTREST RUBBER
€ 3.00
18
0920006010
ref: 18
PIN
€ 2.50
19
0411120208
ref: 19
04111-2020A
PIN 20X20
€ 1.50
20
0110710358
ref: 20
01500-1035B
BOLT,M10X1.25X
€ 2.50
21
0832121108
ref: 21
08321-01107
LOCK WASHER
€ 2.00
22
0831616108
ref: 22
08316-10107
NUT
€ 2.00
23
4381149500
ref: 23
BRACKET,MUFFLER,RIGHT
€ 96.00
24
4382149500
ref: 24
BRACKET
€ 0.00
25
0910610006
ref: 25
07130-10307
BOLT
€ 4.50
26
0910610007
ref: 26
07130-1040B
BOLT
€ 3.50
