FRONT CALIPERS

GS1100E 1983 (D) USA (E03)

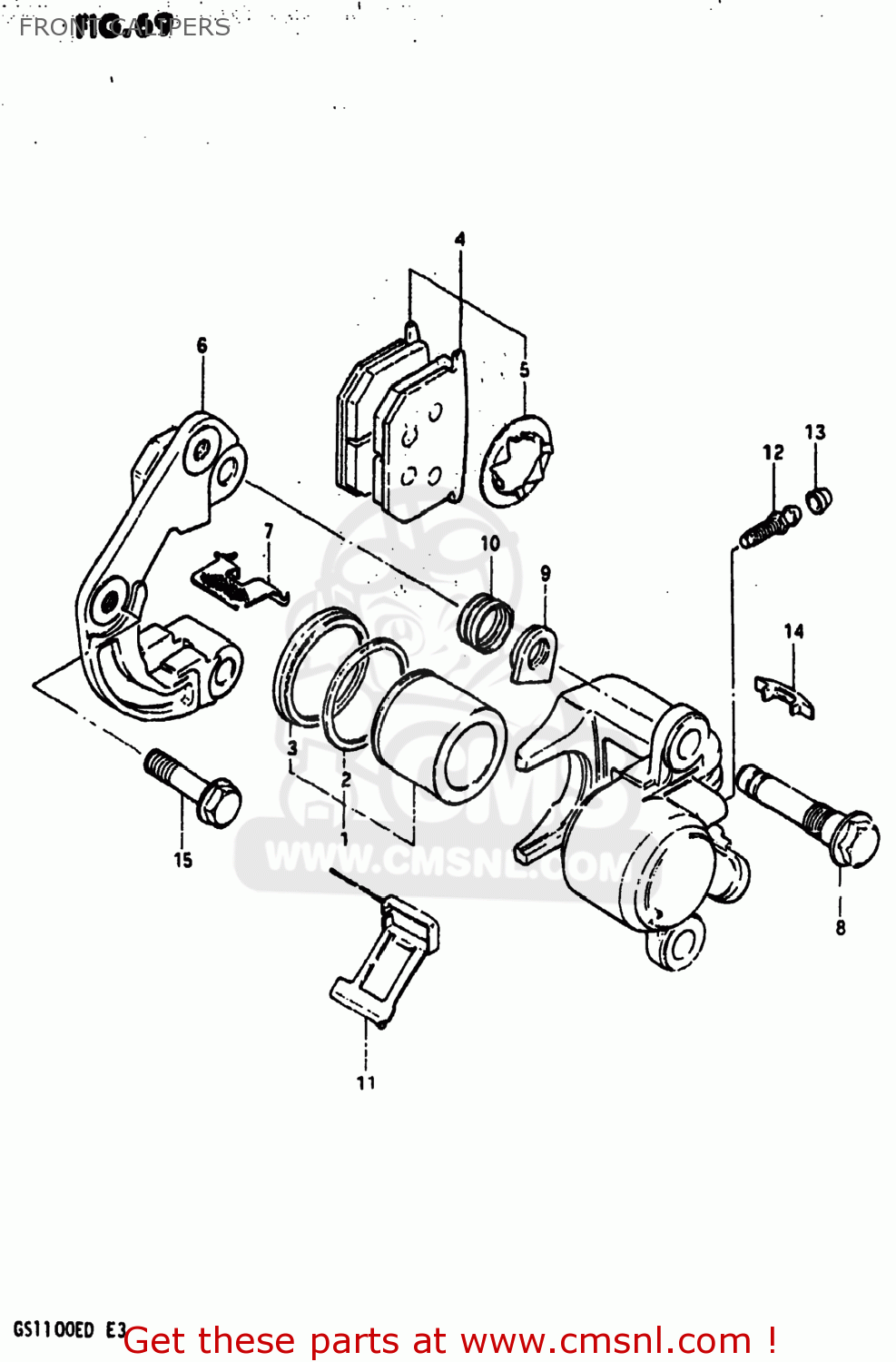

Front calipers diagram GS1100E 1983 (D) USA (E03)

FRONT CALIPERS GS1100E 1983 (D) USA (E03)

FRONT CALIPERS GS1100E 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

0-1

5910049002
ref: 0-1
59100-49020

CARIPER ASSEMBLY,RIGHT

€ 187.50

0-2

5930049002
ref: 0-2
59300-49020

CALIPER ASSEMBLY,LEFT

€ 290.00

1

5930049810
ref: 1

PISTON SET

€ 52.50

2

5910734020
ref: 2

SEAL,PISTON

€ 6.50

3

5930849000
ref: 3

BOOT,PISTON

€ 9.00

4

5930049821
ref: 4
59300-49850

PAD & SHIM SET (MCA)

€ 91.00

5

5937149000
ref: 5

SHIM,PAD

€ 7.00

6-1

5915049001
ref: 6-1

HOLDER,CALIPER,RIGHT

€ 96.00

6-2

5935049001
ref: 6-2

HOLDER,CALIPER,LEFT

€ 83.50

7

5931649001
ref: 7

PAD,GUIDE

€ 11.00

8

5930549000
ref: 8
59305-49001

AXLE,CALIPER

€ 42.00

9

5931749000
ref: 9

NUT,CALIPER AXLE

€ 14.00

10

5931249000
ref: 10

BOOT

€ 30.00

11

5931549000
ref: 11

SPRING

€ 9.50

12

5912147050
ref: 12
59121-34020

BREATHER

€ 11.50

13

5247460020
ref: 13
55156-66310

CAP,BLEEDER PL

€ 6.00

14

5932449000
ref: 14

COVER,INDICATOR

€ 12.50

15

0910310038
ref: 15
09103-10038-XC0

BOLT 10X37

€ 3.00
