COWLING (GS125ESD)

GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

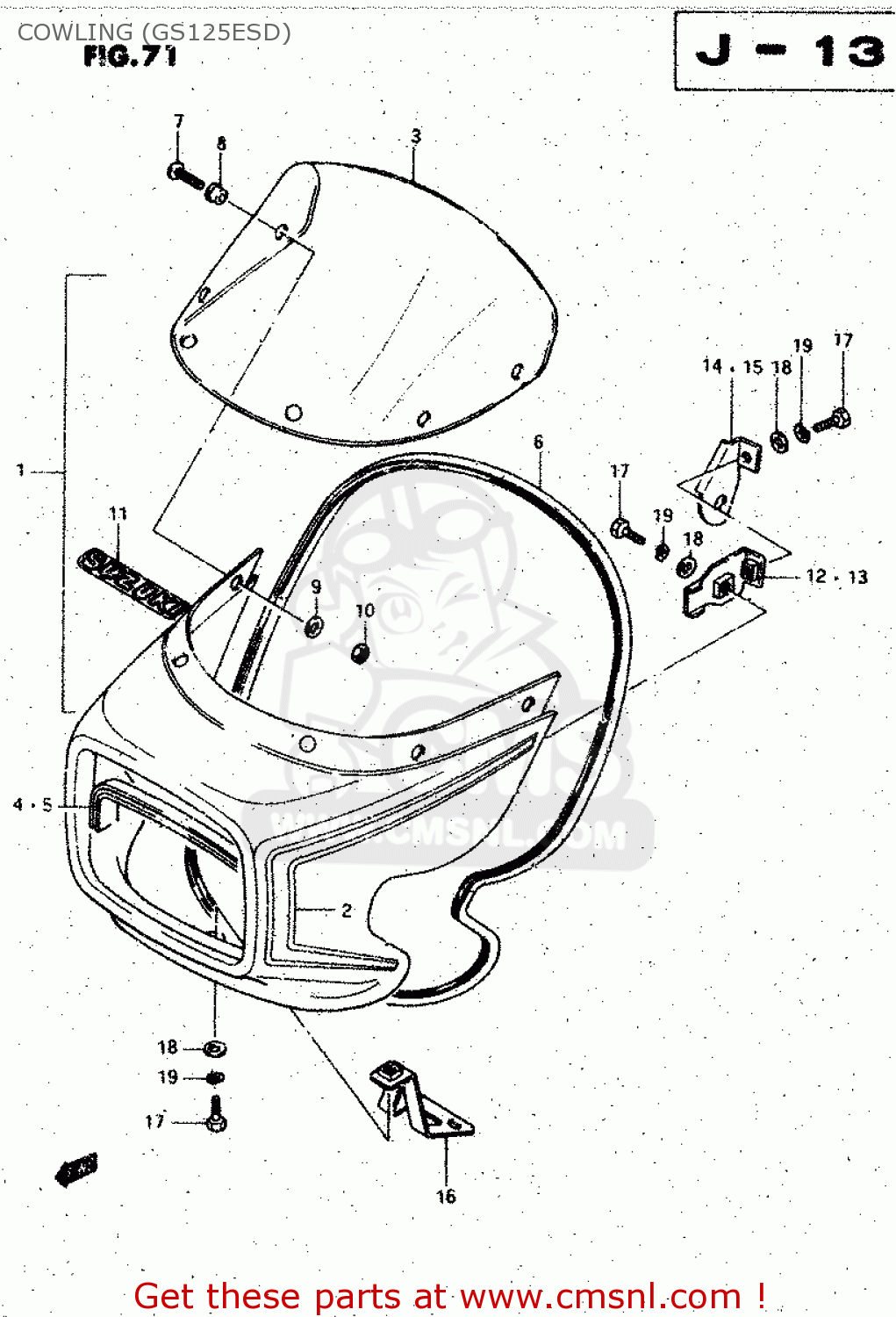

Cowling (gs125esd) diagram GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

COWLING (GS125ESD) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

COWLING (GS125ESD) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1-1

9440005370019
ref: 1-1

COWLING ASSY (BLACK)

€ 201.50

1-2

944000537004Y
ref: 1-2

COWLING ASSY (BLUE)

€ 201.50

1-3

944000537007F
ref: 1-3

COWLING ASSY (RED)

€ 0.00

1-4

944000537014L
ref: 1-4

COWLING ASSY (WHITE)

€ 201.50

2-1

681900530070G
ref: 2-1
FOR 019

TAPE SET

€ 24.00

2-2

681900530088U
ref: 2-2
FOR 04Y

TAPE SET

€ 24.00

2-3

681900530088T
ref: 2-3
FOR 07P

TAPE SET

€ 24.00

2-4

681900530088V
ref: 2-4
FOR 14L

TAPE SET

€ 24.00

3

9461136500
ref: 3

WINDOW,COWLING

€ 37.00

4

9459139300
ref: 4

MOLDING,HEADLAMP GRILL

€ 11.50

5

9459239300
ref: 5

MOLDING,HEADLAMP GRILL

€ 11.50

6

9463136501
ref: 6
ARROW RIGHT94631-441

MOULDING, WINDOW

€ 18.00

7

0214205124
ref: 7

SCREW, FRONT & REAR

€ 1.50

8

0932005008
ref: 8

CUSHION

€ 5.00

9

0832221055
ref: 9

WASHER,5MM

€ 2.50

10

0831012055
ref: 10

NUT ,5MM

€ 2.50

11-1

6816649200538
ref: 11-1
FOR 04Y,07P,14L

EMBLEM,SEAT TAIL COVER

€ 5.00

11-2

6816649200998
ref: 11-2
FOR 019

EMBLEM (GOLD/BLACK)

€ 3.00

12

9451036500
ref: 12

BRACE, RH (L:19)

€ 4.50

13

9453036500
ref: 13

BRACE,COWLING LH

€ 5.00

14

9452105351
ref: 14

BRACKET, FITTING RH (L:19)

€ 7.00

15

9456105351
ref: 15

BRACKET,L

€ 6.00

16

9455005350
ref: 16

BRACKET, LOWER

€ 6.00

17

0110706165
ref: 17

BOLT 6X16

€ 2.00

18

0916006039
ref: 18

WASHER (6.5X18X1.6)

€ 2.00

19

0832121064
ref: 19

WASHER,LOCK

€ 2.00
