REAR SWINGING ARM (E15,E17)

GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

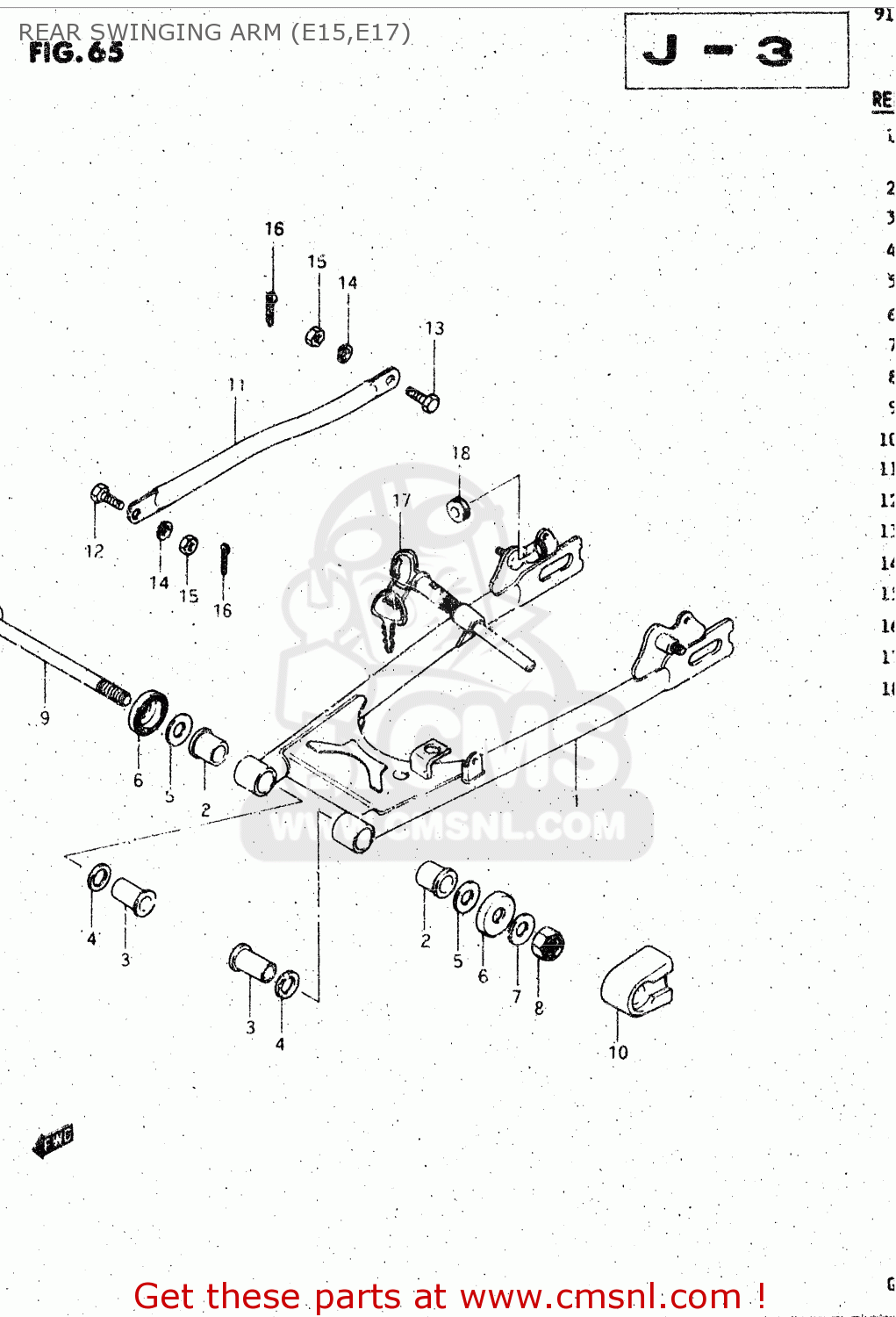

Rear swinging arm (e15,e17) diagram GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

REAR SWINGING ARM (E15,E17) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
REAR SWINGING ARM (E15,E17) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
REAR SWINGING ARM (E15,E17) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
1
6100005320019
ref: 1
SWINGING ARM ASSY, REAR (BLACK)
€ 0.00
2
6126105301
ref: 2
BUSH,RR SWINGING ARM PIVOT
6126105301
€ 9.50
3
6125105300
ref: 3
SPACER,RR SWGARM PIVOT
6125105300
€ 10.00
4
0928620001
ref: 4
SEAL,OIL(20X27X5)
0928620001
€ 2.50
5
0821114341
ref: 5
WASHER
0821114341
€ 3.00
6
6126245002
ref: 6
CVR,RR SWGARM DUST SEAL(OD:40)
6126245002
€ 4.50
7
0832201143
ref: 7
WASHER
0832201143
€ 2.00
8
0831921148
ref: 8
NUT 14MM
0831921148
€ 3.00
9
6121105301
ref: 9
SHAFT,REAR SWING ARM
6121105301
€ 12.00
10
6127305300
ref: 10
BUFFER,CHAIN TOUCH DEFENSE
6127305300
€ 27.50
11
6431005311019
ref: 11
TORQUELINK,RR
6431005311019
€ 15.00
12
0911108012
ref: 12
BOLT(8X22.5)
0911108012
€ 3.00
13
0911108013
ref: 13
BOLT(8X26.5)
0911108013
€ 3.00
14
0916208008
ref: 14
WASHER,LOCK
0916208008
€ 2.00
15
0914008008
ref: 15
NUT
0914008008
€ 1.50
16
0411120208
ref: 16
PIN 20X20
0411120208
€ 1.50
17
5190026810
ref: 17
LOCK SET, WHEEL
€ 0.00
18
0932010015
ref: 18
CUSHION
0932010015
€ 2.50
