FRAME

GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

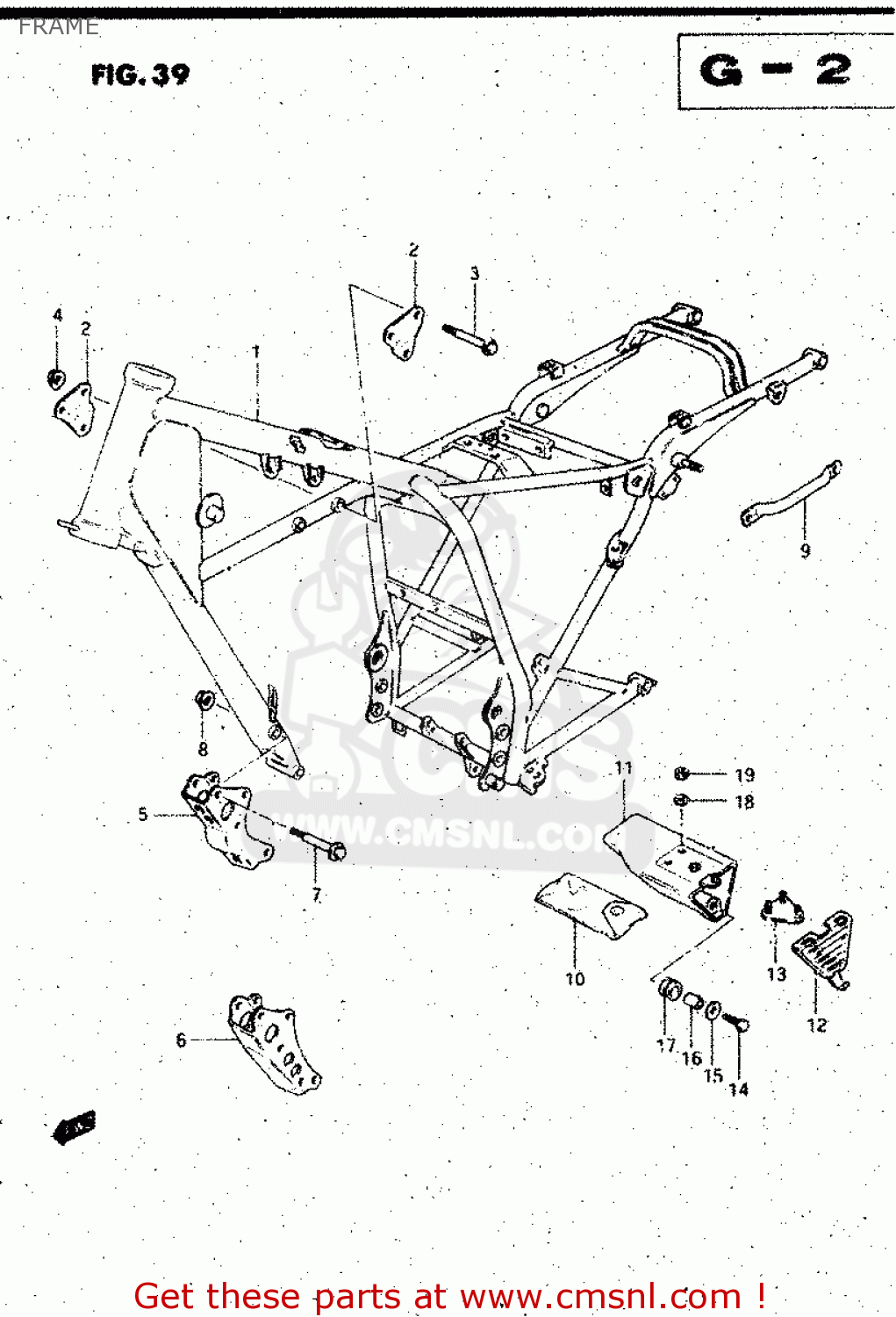

Frame diagram GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FRAME GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FRAME GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1-1

4110005340019
ref: 1-1
MODEL Z/D

FRAME (BLACK)

€ 844.50

1-2

4110005341019
ref: 1-2
MODEL F

FRAME (BLACK)

€ 844.50

1-3

4110005342019
ref: 1-3
MODEL K/L/M

FRAME (BLACK)

€ 844.50

1-4

41100053B0019
ref: 1-4
MODEL R

FRAME(BLACK)

€ 844.50

1-5

4110005351019
ref: 1-5
E15 ~F.NO.114708,E17

FRAME (BLACK)

€ 0.00

1-6

4110005361019
ref: 1-6
MODEL Z/D E18

FRAME (BLACK)

€ 0.00

1-7

4110005362019
ref: 1-7
MODEL K/M E2

FRAME (BLACK)

€ 0.00

1-8

4110005364019
ref: 1-8
MODEL R E2

FRAME (BLACK)

€ 0.00

1-9

4110005371019
ref: 1-9
E15 F.NO.114709~

FRAME (BLACK)

€ 0.00

2

4199105300
ref: 2

PLATE,ENGINE MOUNTING

€ 3.50

3-1

0151708508
ref: 3-1
MODEL Z/D/F

BOLT

€ 3.50

3-2

0910308081
ref: 3-2
MODEL K/L/M/R

BOLT(8X50)

€ 3.50

4

0831931087
ref: 4

NUT

€ 2.50

5

4199205300
ref: 5

BRACKET,ENGINE MOUNTING LWR

€ 9.00

6

4199205310
ref: 6
GS125Z/D E1,E2 GS125

PLATE, LOWER

€ 0.00

7-1

0151708658
ref: 7-1
MODEL Z/D/F/K/L/M

BOLT 8X65

€ 3.00

7-2

0155008653
ref: 7-2
MODEL R

BOLT

€ 3.00

8

0831931087
ref: 8

NUT

€ 2.50

9

4161105310
ref: 9

GRIP,STAND

€ 106.00

10-1

0980000245
ref: 10-1
MODEL Z/D/F/K/L/M

TOOL SET

€ 33.00

10-2

0980021021
ref: 10-2
MODEL R

TOOL ASSY

€ 33.00

11

4743105300
ref: 11

BOX,TOOL

€ 15.00

12

4743205300
ref: 12

CAP,TOOL BOX

€ 2.50

13-1

4744005300
ref: 13-1
MODEL Z

PLATE,TOOL HOLDER

€ 3.00

13-2

4744005301
ref: 13-2
MODEL D/F/K/L/M/R

PLATE,TOOL HOLDER

€ 3.00

14-1

0110706167
ref: 14-1
MODEL Z/D/F

BOLT

€ 3.00

14-2

0911606008
ref: 14-2
MODEL K/L/M/R

BOLT 6X16

€ 2.50

15

0916006027
ref: 15
MODEL Z/D/F

WASHER (6.5X20X1.2)

€ 2.00

16

0918006038
ref: 16

SPACER(6.1X9X7.5)

€ 2.00

17-1

0932008007
ref: 17-1
MODEL Z/D/F/K/L/M

CUSHION

€ 4.00

17-2

0932008021
ref: 17-2
MODEL R

CUSHION

€ 4.00

18

0832221067
ref: 18

WASHER

€ 2.00

19-1

0831011067
ref: 19-1
MODEL Z/D/F/K/L/M

NUT 6MM

€ 2.50

19-2

0831610063
ref: 19-2
MODEL R

NUT

€ 2.50
